Liquid connections – Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 84
2-54
Drive Installation
7000L-UM302B-EN-P – June 2013
7000 “C” Frame - Marine
Liquid Connections
Liquid-to-Liquid Heat Exchangers
There are three options for routing piping between the liquid-to-
liquid heat exchanger to the supply and return coolant:
• Pipes through top plate of cabinet
• Pipes through bottom plate of cabinet
• Pipes through right side of cabinet
Removable plates are provided in each of these locations.
Access for connections
through top of cabinet
Liquid-to-Liquid
Heat Exchanger
Access for connections
to heat exchanger through
bottom of cabinet
Access for connections
to heat exchanger through
right side of cabinet

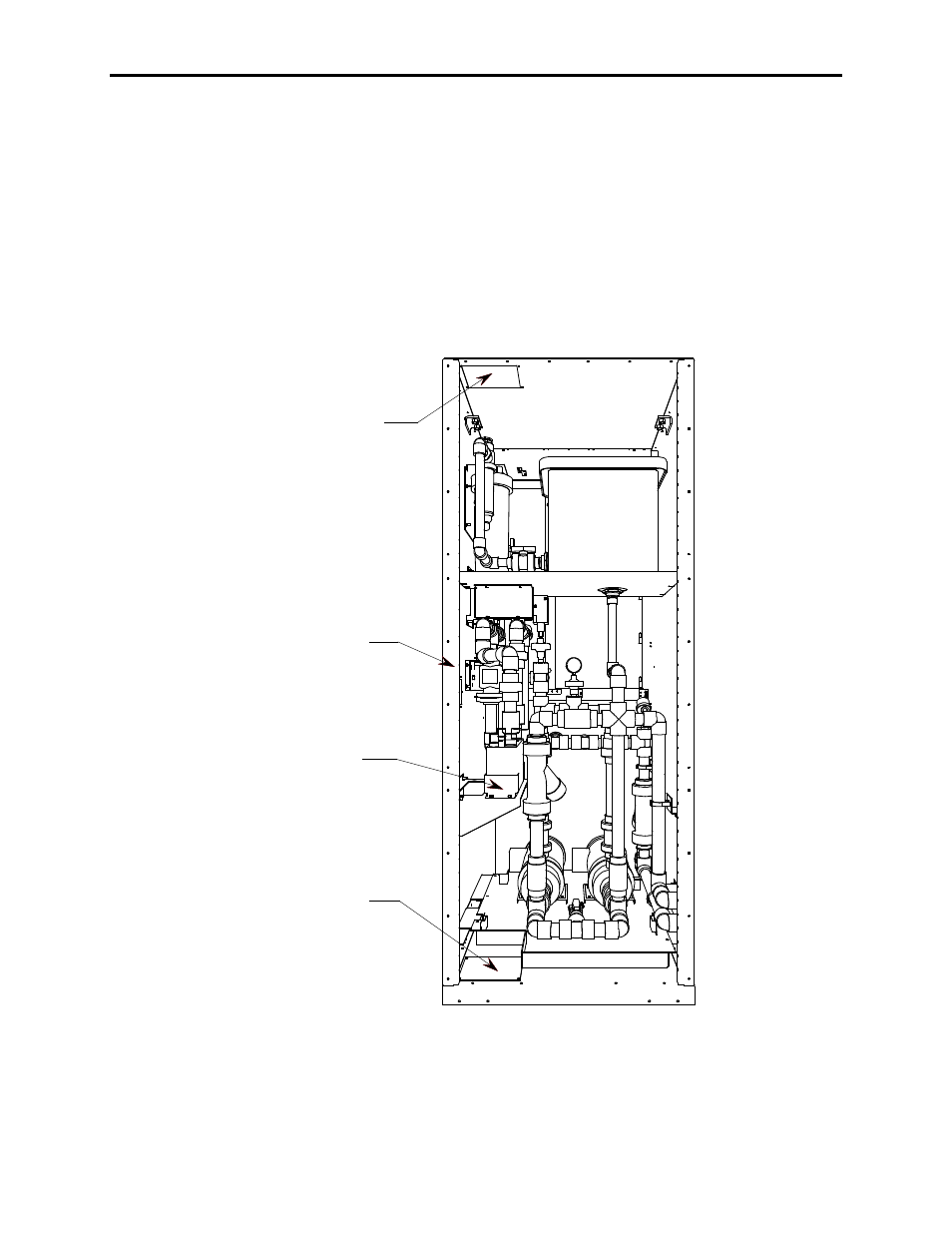

Figure 2.59 – Connection to Liquid-to-Liquid Heat Exchanger
(rear of pumping cabinet shown with back plates removed)
