Component Definition and Maintenance 4-97

7000 ―C‖ Frame - Marine

7000L-UM302B-EN-P – June 2013

Interface Module (IFM)


The Interface Module is used to make all customer useable
connections to the ACB. The pin numbers listed on the following
pages refer to IFM pin numbers.

Even pin numbers

Odd pin numbers

Connection to ACB (J8)

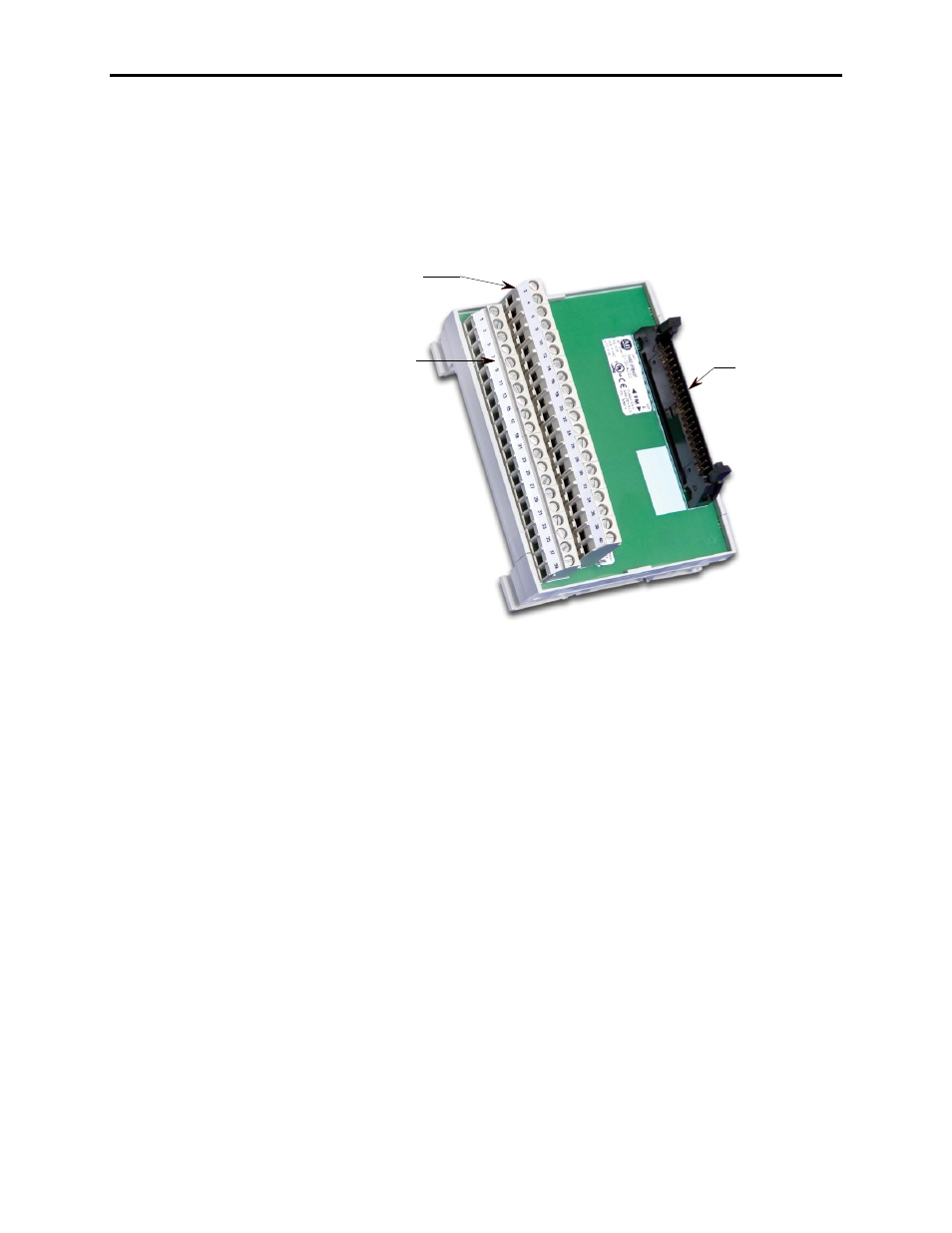

Figure 4.70 – Interface Module (IFM)



Analog Inputs and Outputs


The PowerFlex 7000 ‗C‘ Frame offers one isolated process current
loop transmitter and three isolated process current loop receivers,
embedded into the control. These are accessible on the ACB.

The isolated Process Output is configured as 4-20 mA. The three
isolated process inputs are individually configurable for either a range
of -10/0/+10V or 4-20 mA (Refer to Programming Manual).

The following information will show the connections for each.
