Ensure the parameters are saved to NVRAM, and saved to the
Operator Interface Terminal, and saved to any other external source
such as the Flash Card, DriveTools, or printed to a hardcopy.

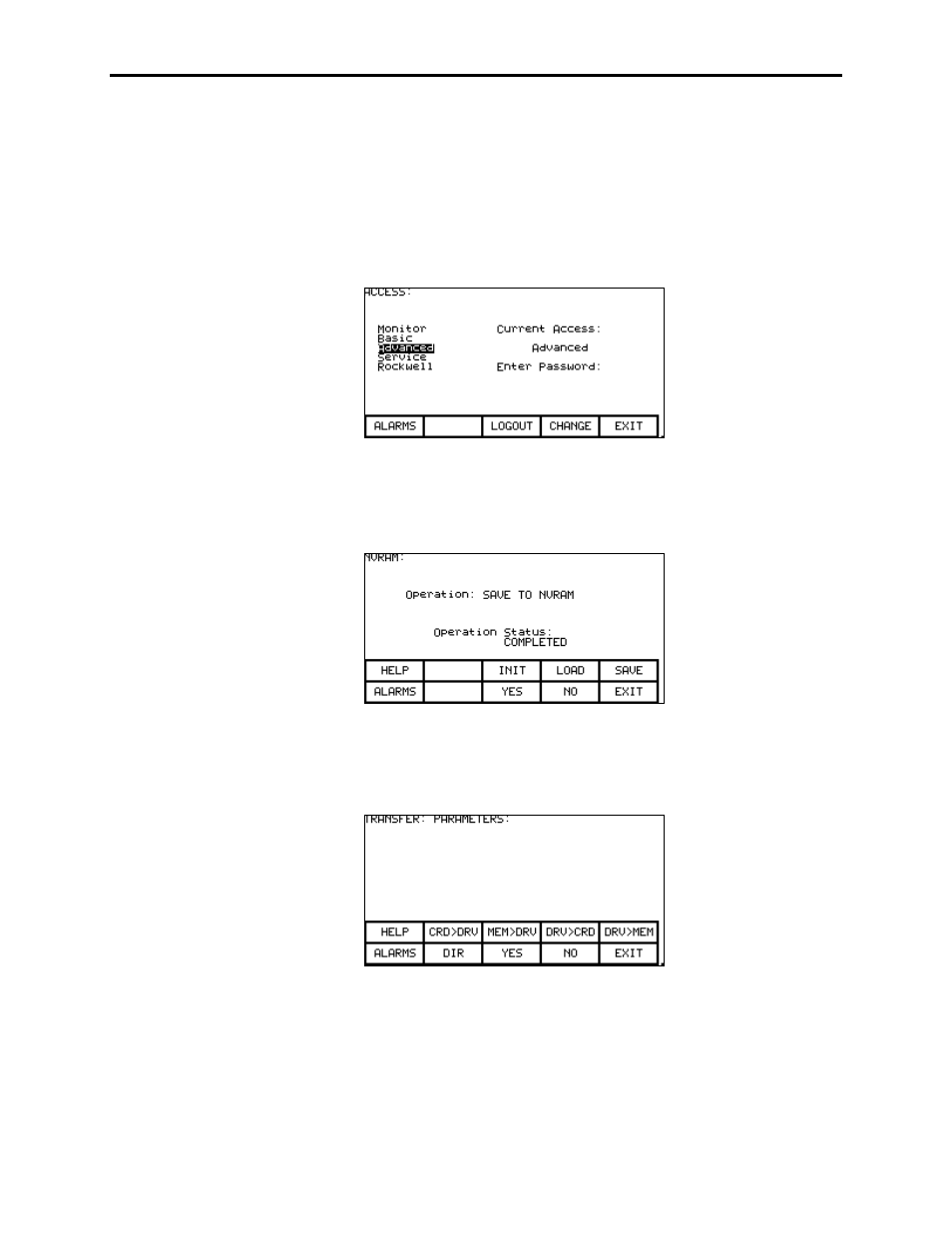

Hit F10 (Access), and highlight Advanced. Press Enter, or enter the
password value (if password required) and you should have
Advanced level access.


Hit F10 to Exit, and then F5 for NVRAM. Press F5 for SAVE, and
F8 for YES. The parameters should now be saved to NVRAM.
Press F10 again to EXIT.


To save to the Operator Interface Terminal and Flash Card, Press F2
(UTILITY), F7 (TRANSFER), and F4 (PARAMETERS). You
should now be on the following screen:

In order to save parameters to the Operator Interface Terminal, press
F5 (DRV>MEM). To save to the Flash Card, you must first insert
the card in the terminal. Remove the back cover and insert the card
in the slot on the terminal. It can only go in one way. Then press F4
(DRV>CRD).

Preparation for

Downloading Firmware
