Component Definition and Maintenance 4-147

7000 ―C‖ Frame - Marine

7000L-UM302B-EN-P – June 2013

-

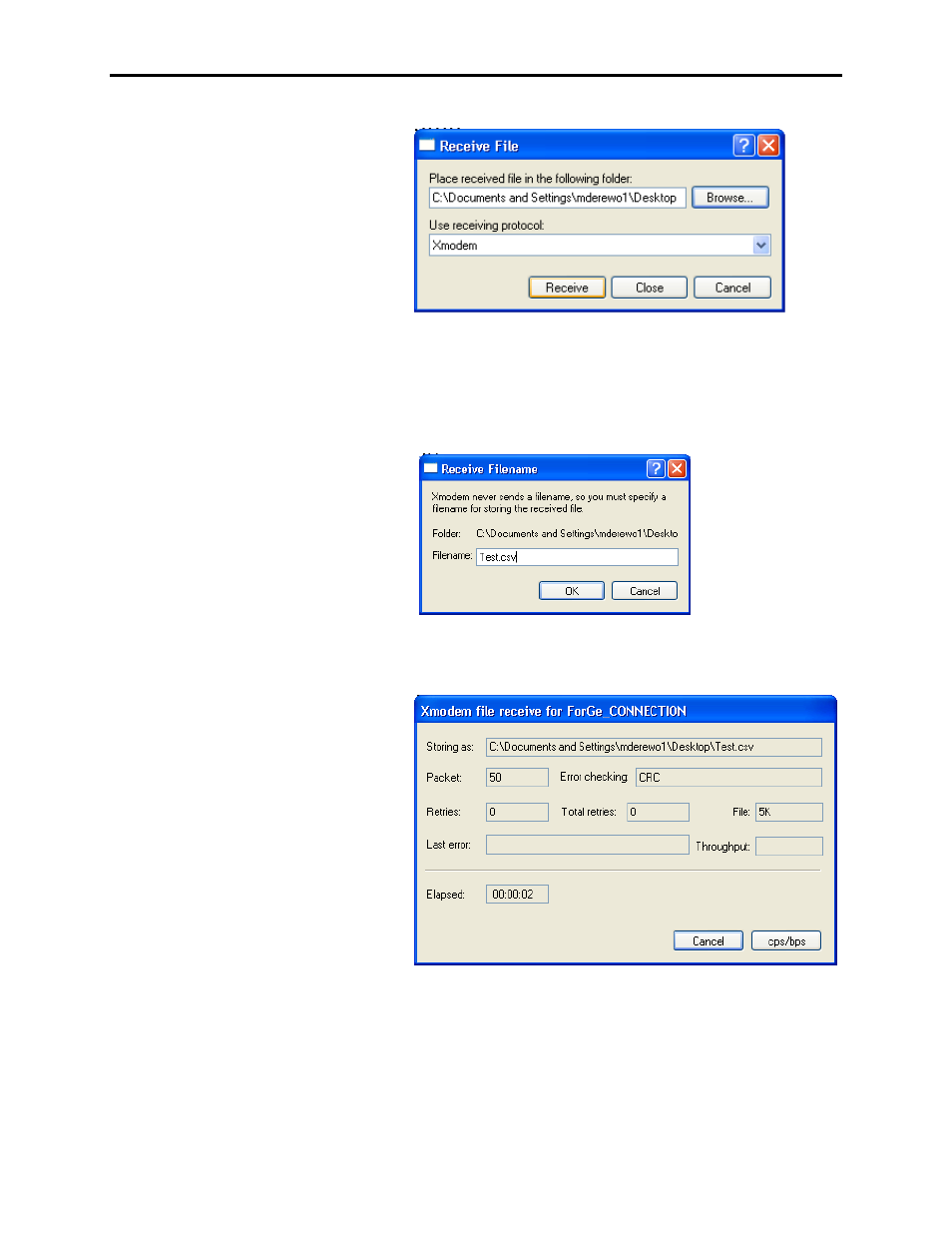

Now, the Receive Filename dialog will appear. Here you
need to enter the file name, but make sure you also enter a
correct extension as given in the options menu. For Control
Data
use .bin extension. For all other data use .csv
extension. Click OK.


-

Now, the following dialog box will appear where you can
see the file transfer progress.

-

When the data transfer is complete, the above dialog box
will close automatically. This way use can select any option
you want to print (upload). Once you have printed all the
data files, you can then shutdown the HyperTerminal
program and unplug the null-modem cable from the DPM
board.
