Drive Installation 2-9

7000 “C” Frame - Marine

7000L-UM302B-EN-P – June 2013

Install CPVC Piping Splices

 Open doors of capacitor cabinet (Cabinet #5) next to DC Link Choke

cabinet (Cabinet #6). Refer to Figure 2.4.

 Remove capacitor from position #3, if installed (not all

configurations have a capacitor in this location). It is not necessary
to remove capacitor from position # 2.

A T T E N T I O N

A T T E N T I O N

Capacitors weigh up to 100 kg (220 lbs). Use
two people to remove the unit from the
structure.

Capacitor

Position #1

Capacitor

Position #2

Capacitor

Position #3

CPVC Pipe
Splices

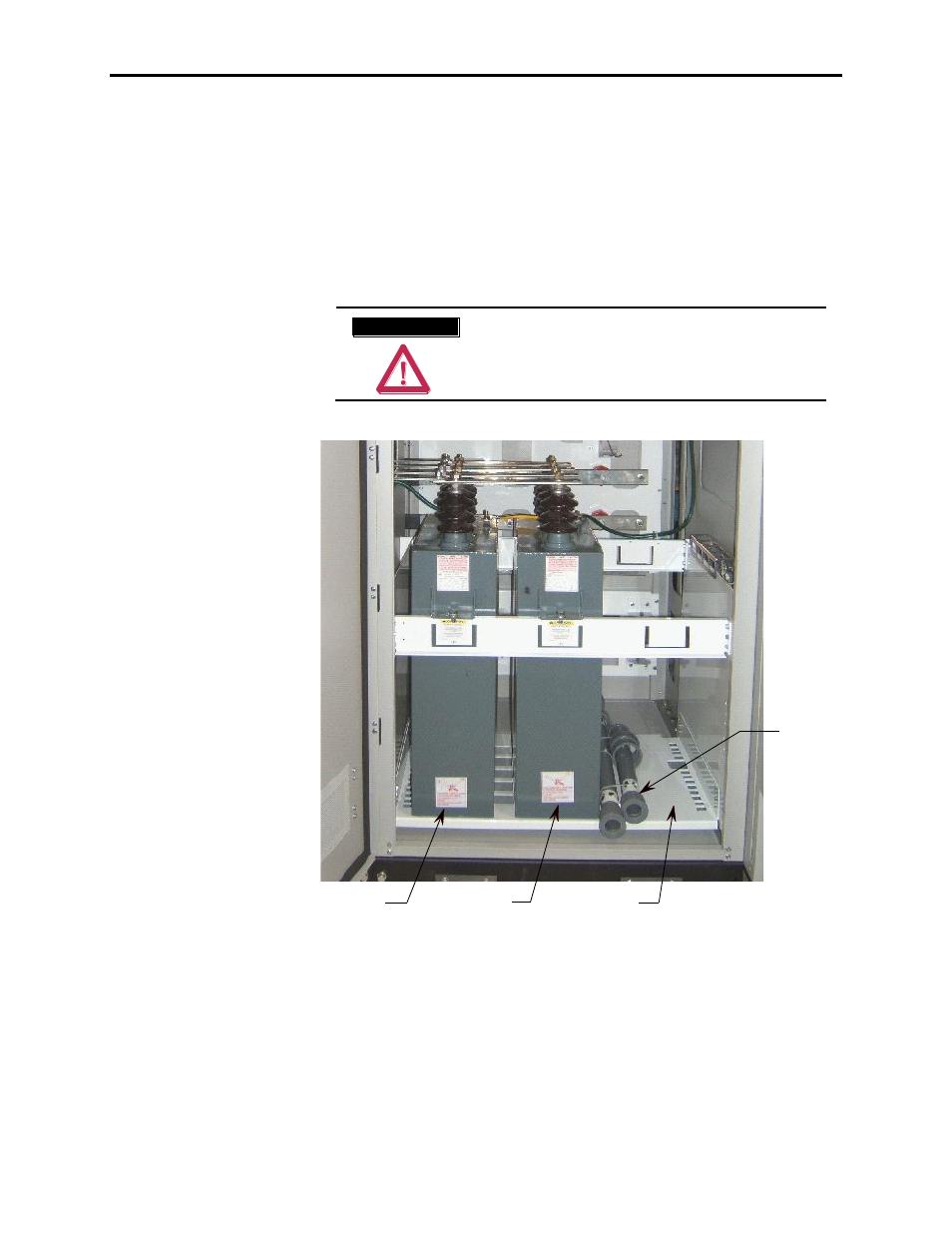

Figure 2.4 – Capacitor Cabinet

 Remove CPVC pipe splices shipped in the capacitor cabinet. Install

and tighten the 4 CPVC unions with strap wrench (¼ to ½ turn past
hand tight). Ensure O-ring is seated inside male end of union. Refer
to Figures 2.5, 2.6, 2.7 and 2.8. Do not use CPVC primer or cement.
