Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 46
2-16
Drive Installation
7000L-UM302B-EN-P – June 2013
7000 “C” Frame - Marine
Connect the Sections (cont.)

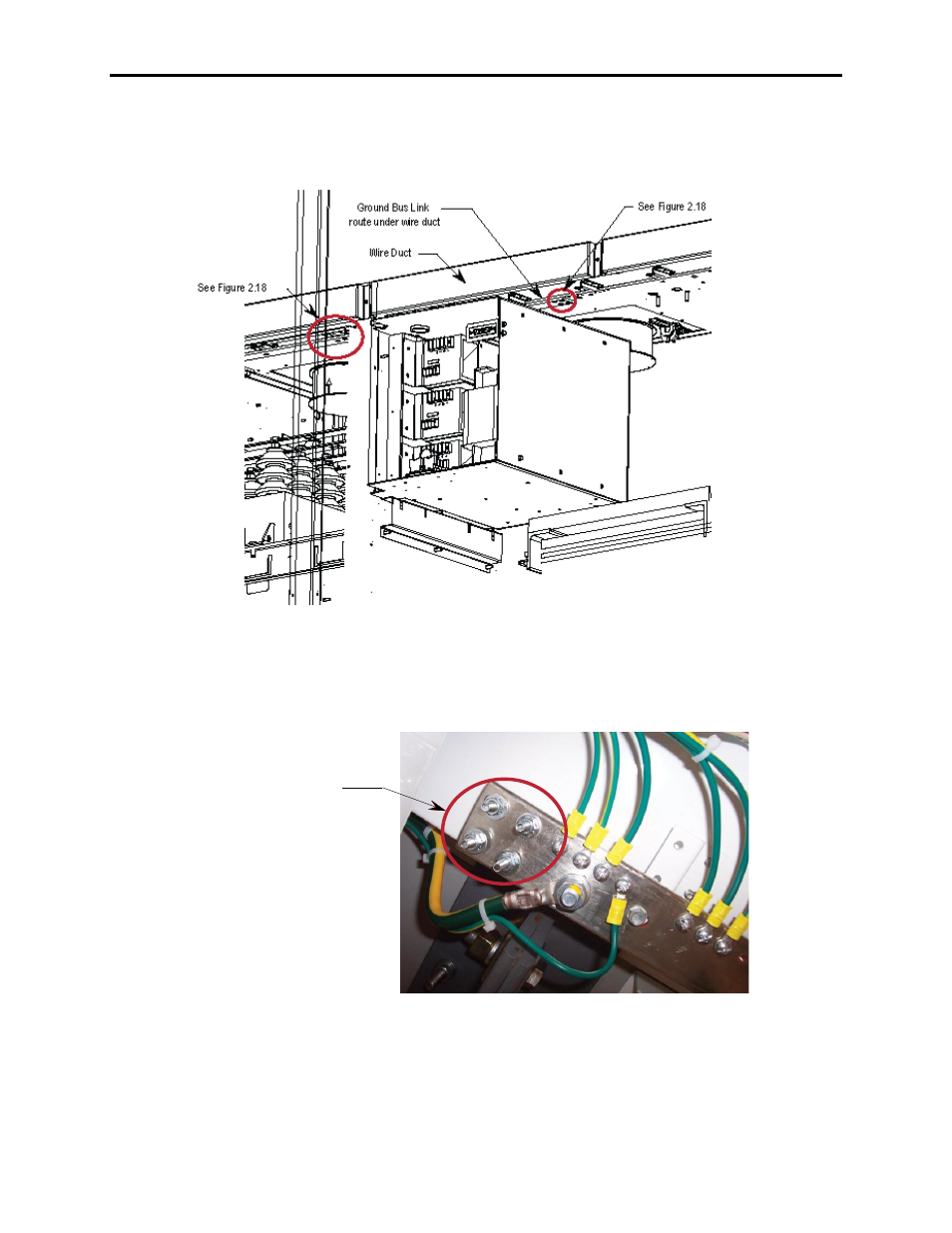

Figure 2.17 – Install Ground Bus Link
M6 Hardware (4 places)
tighten to 6 Nm (4.4 ft-lbs)
at each end of bus link
Figure 2.18 – Ground Bus Connection Points
(Install Ground Bus Link using Supplied Hardware)
