The following are the temperature values for alarm and trip signal:

1. When coolant temperature is greater than 48°C (120°F), an alarm

signal is initiated. It can only be reset when temperature reaches
38°C (100°F).

2. When coolant temperature is greater than 62°C (144°F), a trip

signal is initiated. It can only be reset when the temperature
reaches 48°C (120°F).

3. When coolant temperature is less than 4°C (40°F), a trip signal is

initiated. It can only be reset when the temperature reaches 10°C
(50°F).


De-Ionizing Cartridge and Mesh Filter

The circuit shown in Figure 4.60 filters and de-ionizes the stream at a
rate of about 0.3 L/second (5 U.S. gallons per minute). This stream
can be isolated for cleaning and maintenance by closing the
incoming and outgoing valves. The filter is a 500-micron fine-mesh
type, which can be cleaned many times by rinsing in clean water.
The de-ionizing cartridge is a mixed-bed cartridge type, which can
be disassembled easily for de-ionizing cartridge replacement.

Reservoir

Level Switch (LS)

Level Shut Down Low (LSDL)

De-ionization
Cartridge DEI1

Mesh Filters


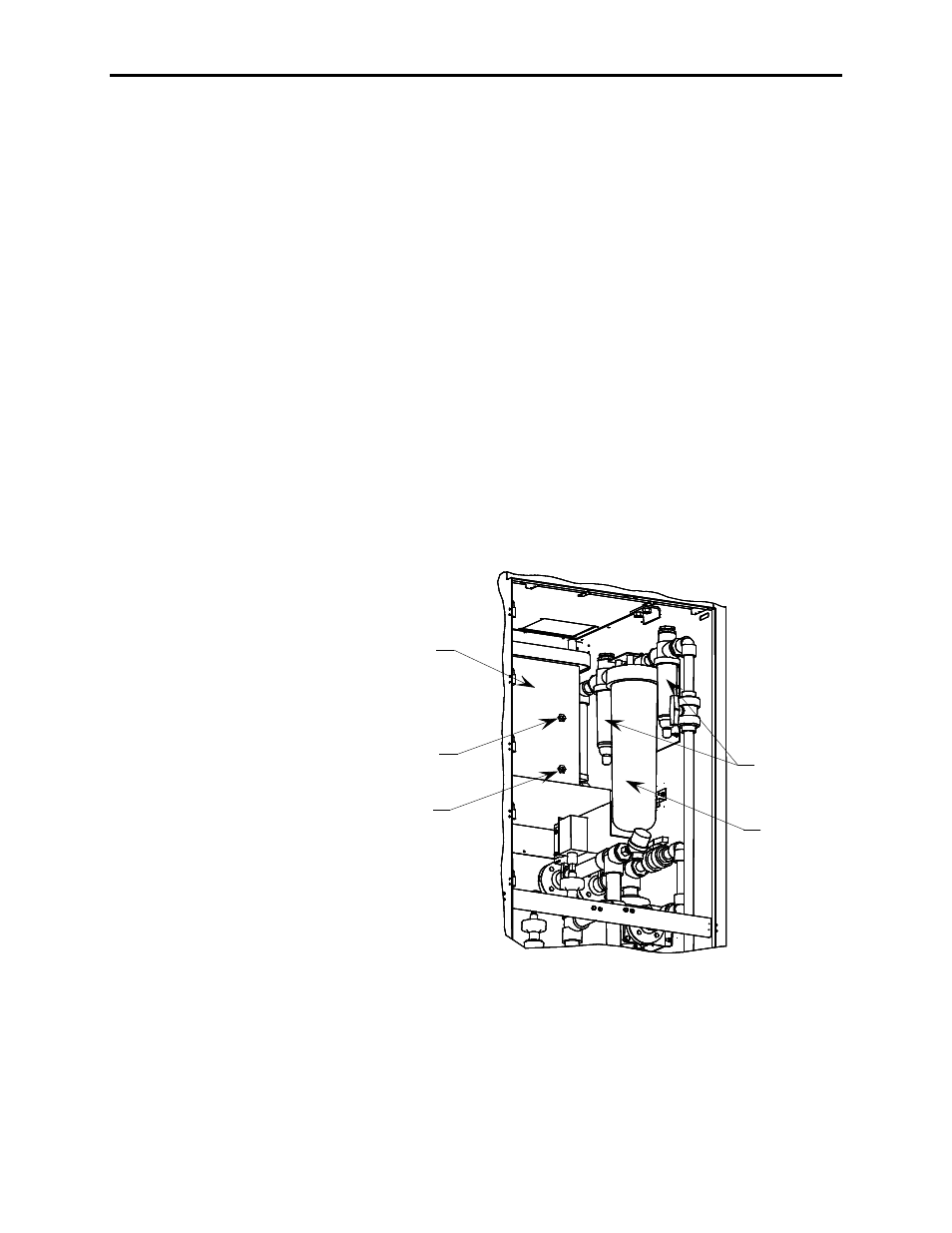

Figure 4.60 – De-ionizing Filter DEI1 (Rear View)

Pump Maintenance and

Replacement (cont.)
