4-134

Component Definition and Maintenance

7000L-UM302B-EN-P – June 2013

7000 ―C‖ Frame - Marine

Overview


The data from the drive; such as drive setup, parameters, variables,
trend data, fault masks, alarm queues etc., can be uploaded and saved
into laptop using HyperTerminal program. When using the
HyperTerminal program to upload the data, you will be prompted to
select a file to store this data. Therefore, you need to open an empty
Notepad file and then save that file on your pc before uploading the
data from the drive. The following example illustrates the method to
create an empty .txt file (example1.txt) and upload (or print) the data
from drive into laptop.

Required:


- Laptop with Windows HyperTerminal program

- A null-modem cable with a 9-pin female connector for the laptop

serial port, and a 9-pin male connector for the ACB Printer Port
(J11). (A serial cable with pins 2-3 swapped at one end will also
work
)

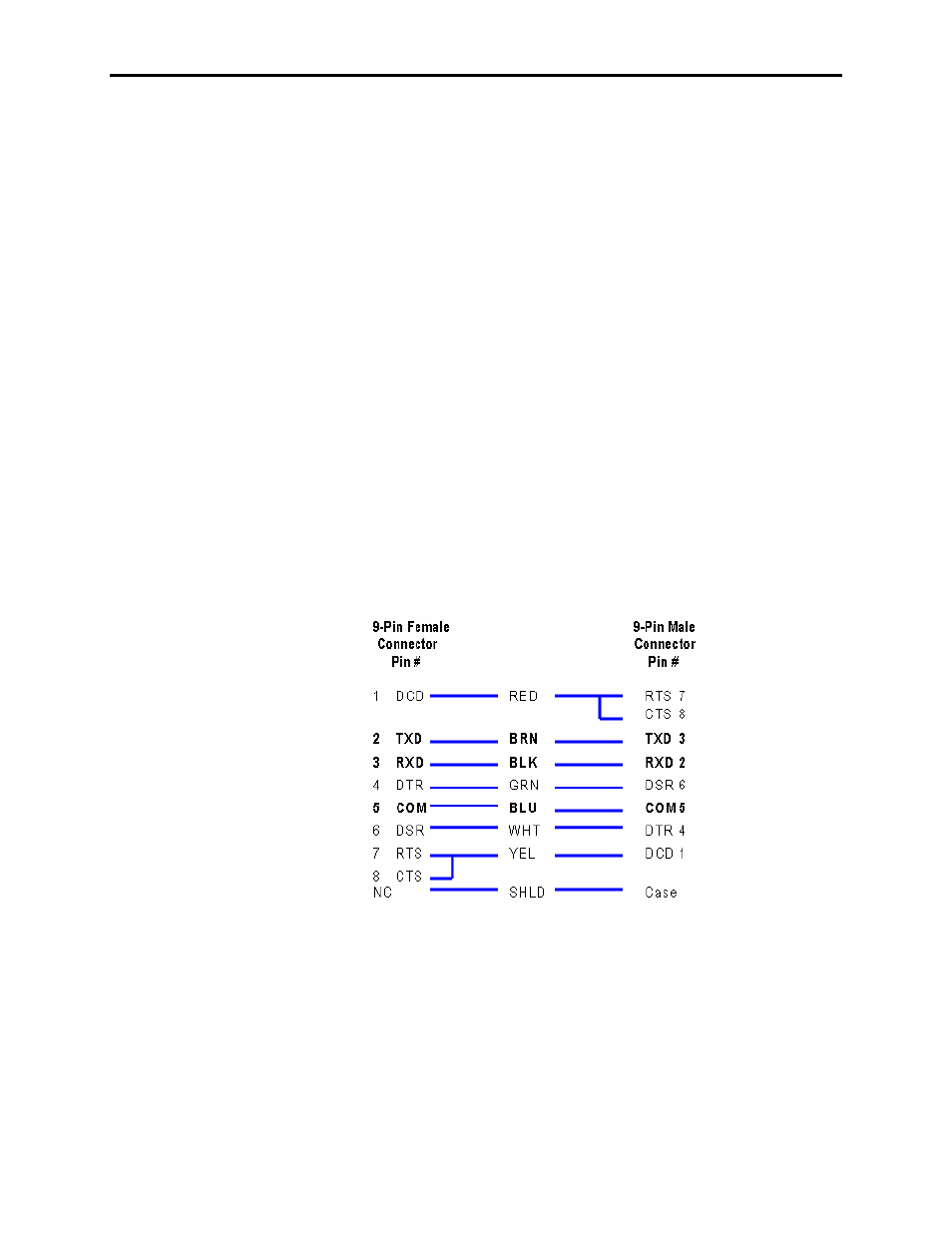

Here is a typical pin out of a complete null-modem cable.
Essentially, only 3 pins (2, 3 and 5) are all that is required.

Printing (Uploading)

Data from the Drive
