4-8

Component Definition and Maintenance

7000L-UM302B-EN-P – June 2013

7000 ―C‖ Frame - Marine

Two sizes of fuses (5 kV, 7.2 kV) are available within the Transient
Suppression Network (TSN) located inside the connection cabinet. The
18-pulse drive contains three TSNs.

1. Ensure there is no power to the equipment.

A T T E N T I O N

A T T E N T I O N

To prevent electrical shock, ensure the main
power has been disconnected before working
on the drive. Verify that all circuits are voltage
free using a hot stick or appropriate voltage-
measuring device. Failure to do so may result
in injury or death.

2. Fuses are held in a place with a fuse clip. To remove the fuse

pull firmly.

3. To replace the fuse, hold it in position and push firmly until the

fuse is seated within the fuse clip. Install fuses so that the rating
is visible.

I M P O R T A N T

I M P O R T A N T

Make sure to replace the fuse with another of the
same rating. (See Figure 4.7 for location.)

7.2 kV fuses

5 kV fuses

Varistors

Location of ground

Connecting links

Varistors

Location for 7.2 kV fuses

Location for 5 kV fuses

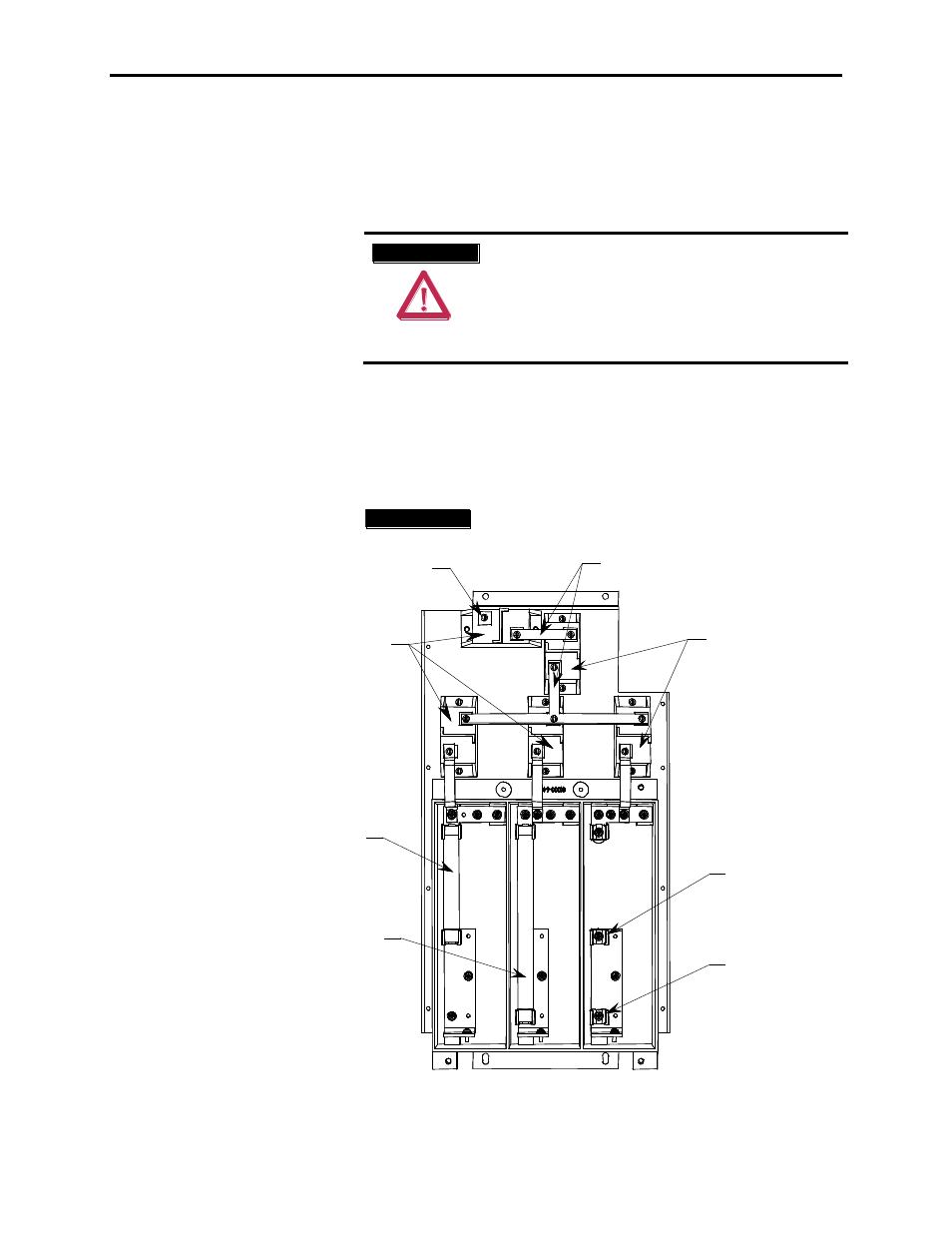

Figure 4.6–Transient Suppression Network

Transient Suppression

Network Fuse

Replacement
