Component Definition and Maintenance 4-133

7000 ―C‖ Frame - Marine

7000L-UM302B-EN-P – June 2013

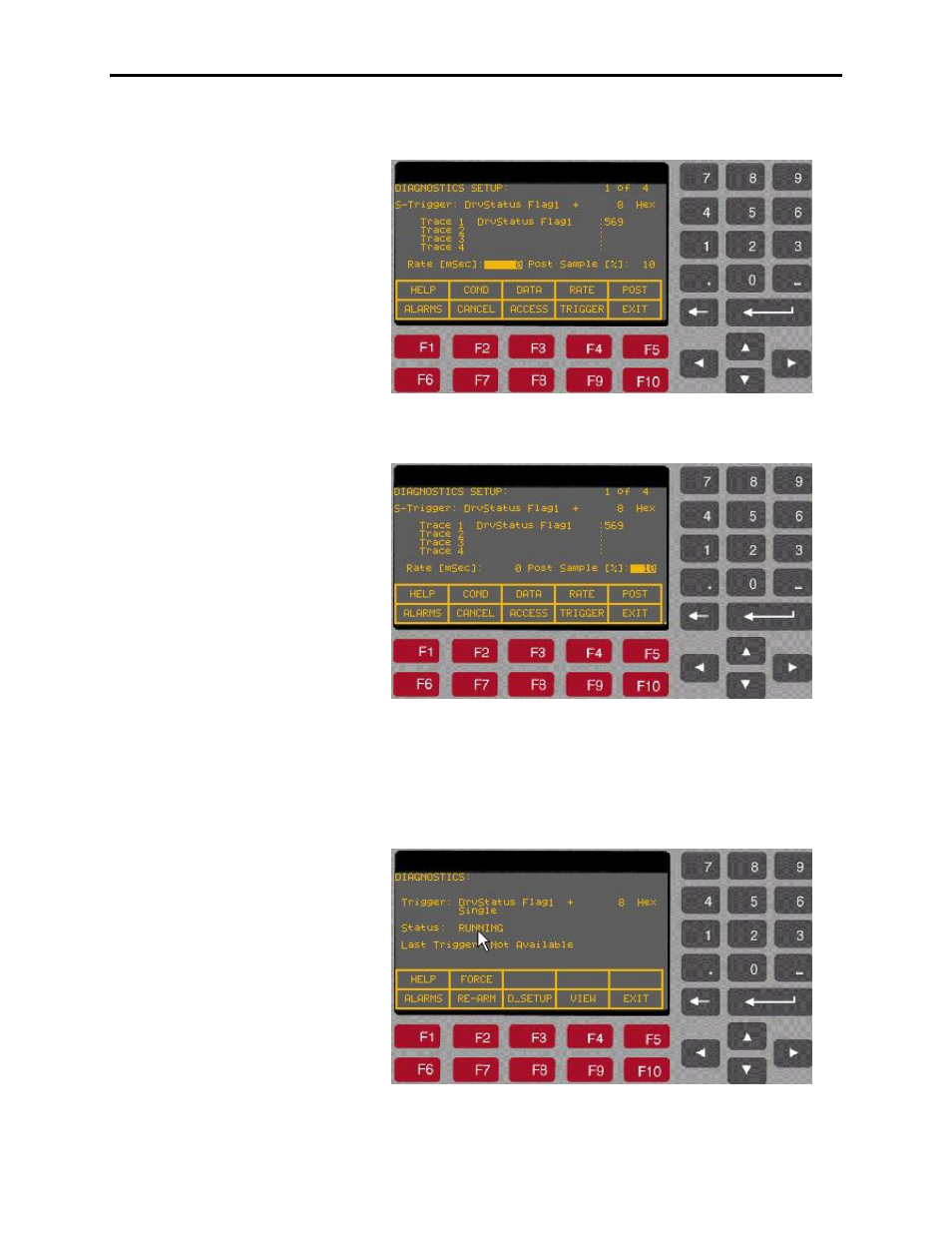

14. Press F5 [POST] key and enter 10 (this is the percentage of

post-trigger samples) and then press the Enter key.

15. Now, press F10 [EXIT] key to exit to ‗Diagnostic‘ screen. On

the ‗Diagnostics‘ screen, verify that the Status is ‗Running‖,
which means the Diagnostic Trend is ready and will capture the
data whenever the trigger condition is satisfied. If the Status
shows ‗Stopped‘ then press F7 [Re-Arm] key. This will change
the Status to Running.

16. Now press F10 [EXIT] to exit to the main screen.
