Printing (uploading) control data (cont.) – Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 322
4-146
Component Definition and Maintenance
7000L-UM302B-EN-P – June 2013
7000 ―C‖ Frame - Marine
-

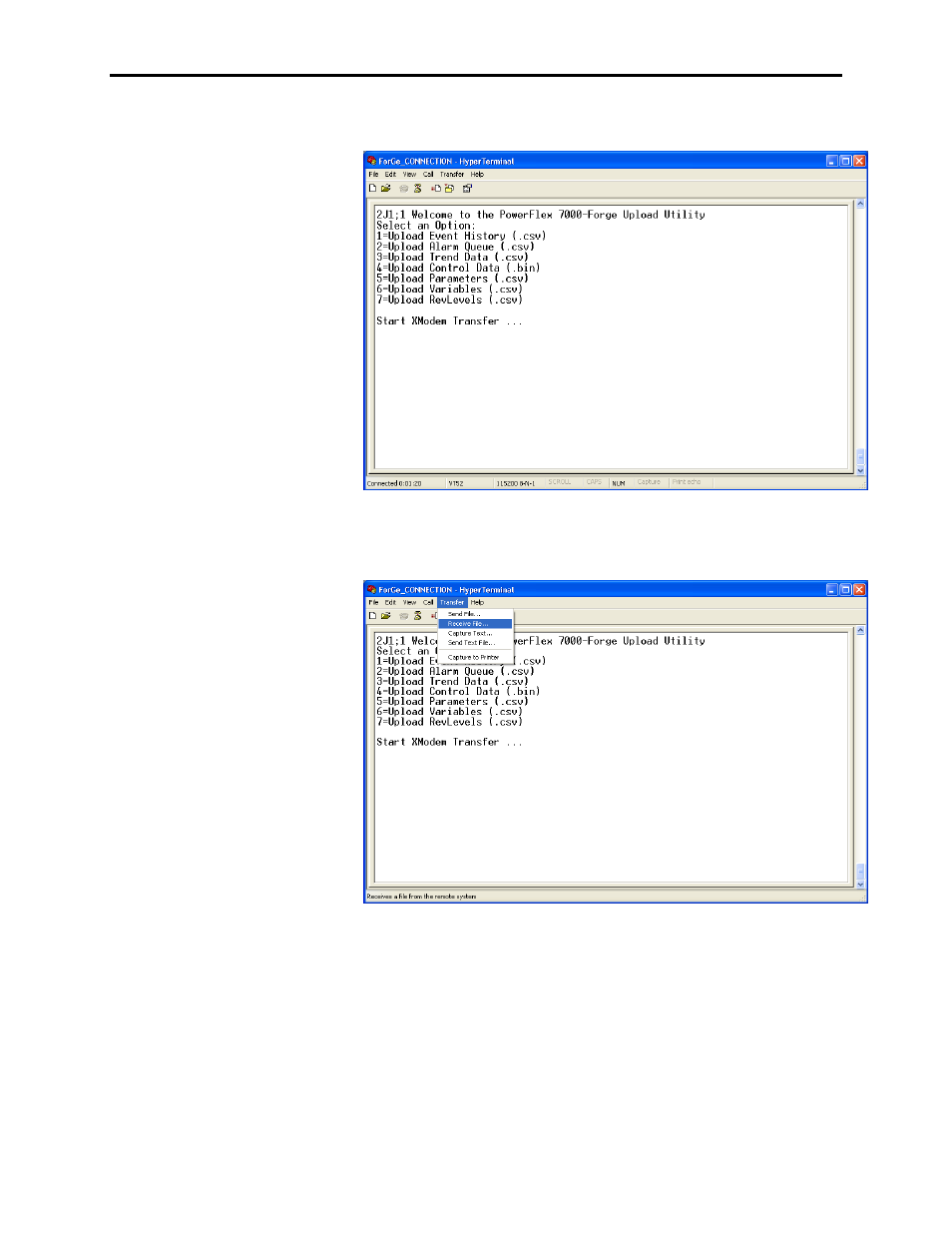

After selecting the desired option, you need to start the
transfer by selecting Receive File … from the Transfer
menu as shown below.
-
The Receive File window will pop. Click Browse button
and select the directory where you want to save the data file.
Make sure the Receiving Protocol is set to Xmodem, then
click Receive.
Printing (Uploading)
Control Data (cont.)
