3-42

Operator Interface

7000L-UM302B-EN-P – June 2013

7000 “C” Frame - Marine

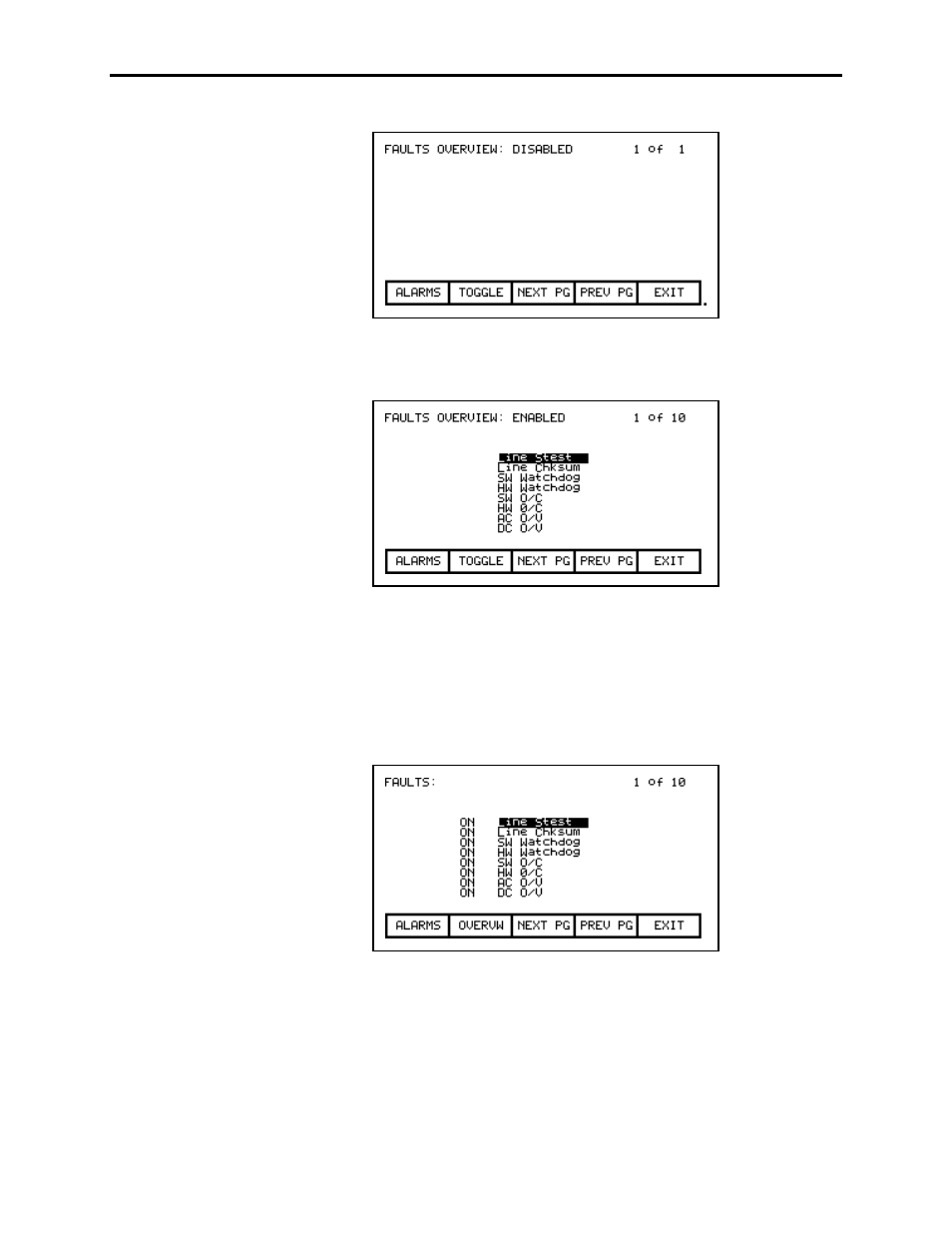

Figure 3.54 – AC O/V Removed From List



Figure 3.55 – AC O/V Now Enabled

The changes to the fault masks do not take effect until the screen is
exited via the [F10] key, i.e. exiting the FAULTS OVERVIEW will
change the masks in the drive as will exiting the FAULTS SETUP
screen. In our example, exiting the FAULTS OVERVIEW screen
and returning to the FAULTS SETUP screen now shows the “AC

O/V” mask as being ON (Figure 3.56).

Figure 3.56 – AC O/V Mask is ON
