Printing (uploading) data from the drive (cont.) – Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 316

4-140
Component Definition and Maintenance
7000L-UM302B-EN-P – June 2013
7000 ―C‖ Frame - Marine
-
HyperTerminal will now act as a dummy printer and is waiting
for the information to be transmitted from the drive to the laptop.

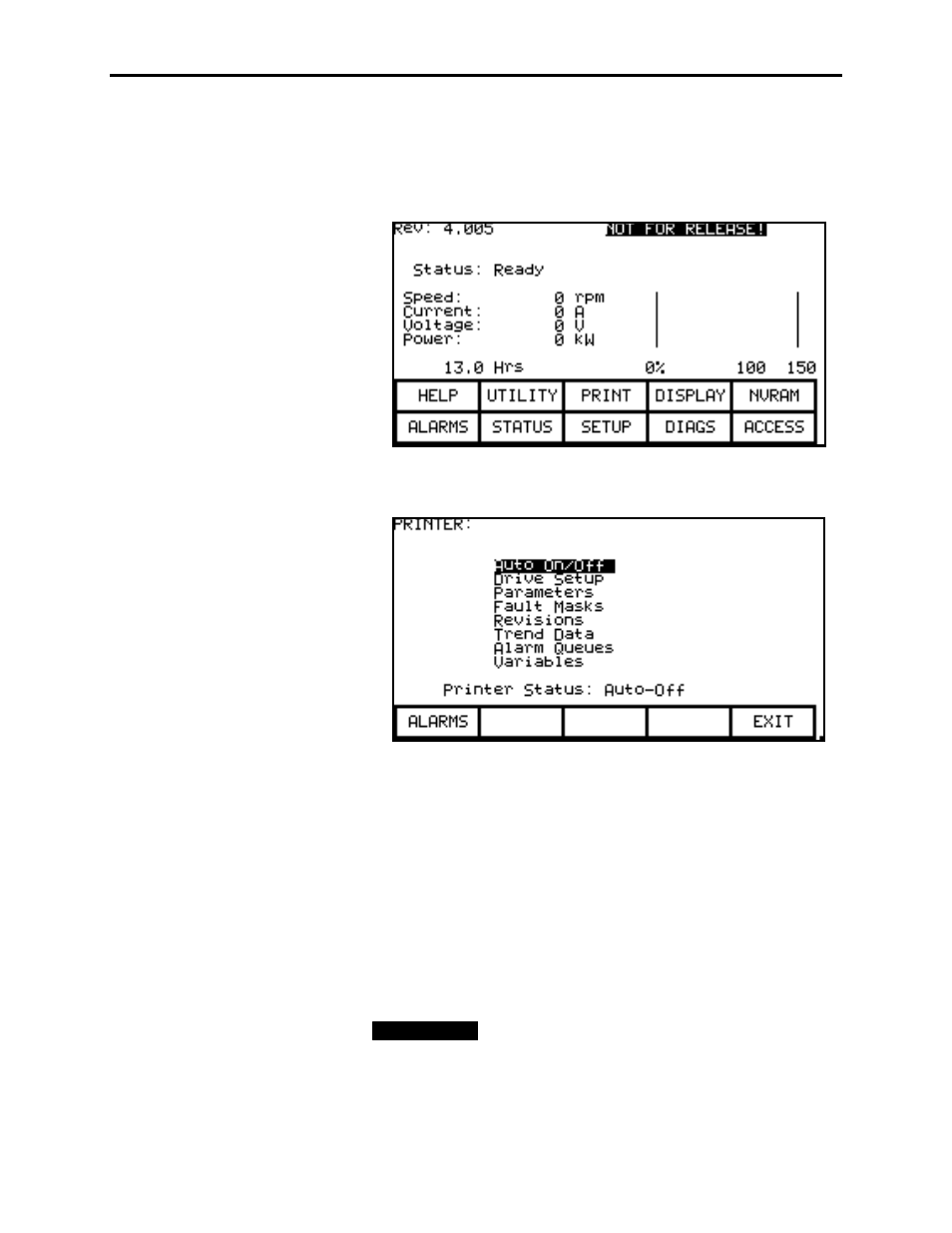

From the drive Terminal, hit F3 (PRINT) at the main screen as
shown below:
-
The Terminal screen will change and display Printer options, as
shown below.
-
Now, using Up or Down (
) arrow keys on the Terminal keypad
select the item you want to print (ie., upload the info into laptop)
and press Enter key (
). The required information will be
transferred to your laptop and stored in the file C:\temp\Example.txt.
Repeat this step to upload other data into your laptop.
Note: The most desirable selections are:
Drive Setup: for complete setup, which include Parameters,
Fault Masks and Revisions
Trend Data: for analyzing the drive trending
Variables: snapshot of real-time data while the drive running.
I M P O R T A N T
I M P O R T A N T
Note that while the data is being transferred, the
Printer Status will show Transfer in Process.
Once the data transfer is complete, the Printer
Status changes to either Auto-Off or Auto-On.
Printing (Uploading)
Data from the Drive
(cont.)
