Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 139

Operator Interface 3-43
7000 “C” Frame - Marine
7000L-UM302B-EN-P – June 2013
User Definable External Text
The drive contains a number of external fault inputs. You can
custom define the text associated with these inputs, which will be
used on the alarm screen and the fault mask screens. To define the
text, use the up/down arrow keys on the SETUP screen to select the
'External Text' option and press the [enter] key. A screen typical of
Figure 3.57 will be seen.

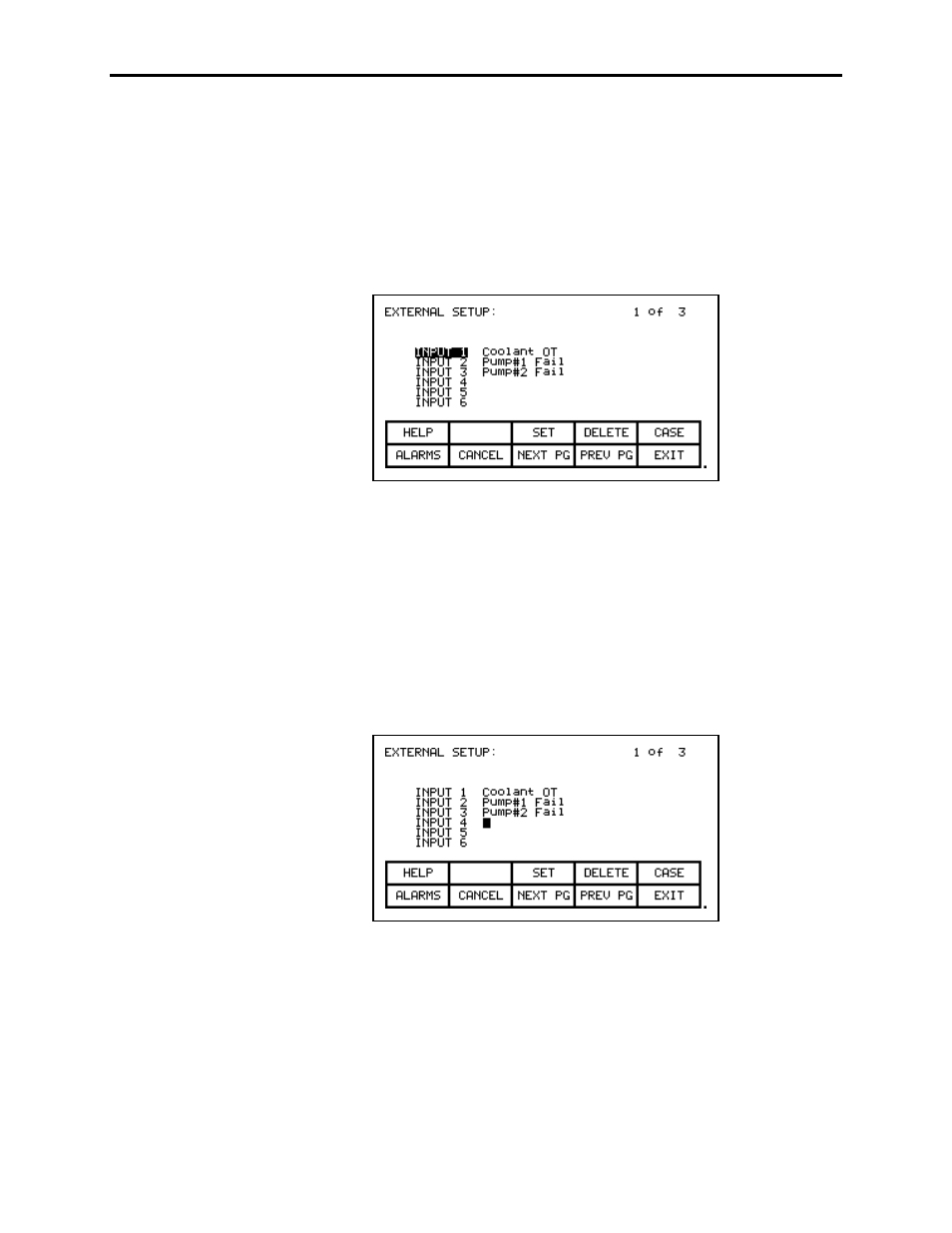

Figure 3.57 – External Setup Text
To modify the text attached to a particular fault input, use the [cursor
up] and [cursor down] keys to select the desired input. To modify
the text, press the [cursor right] key. (If nothing happens then you
have not gained the required access to make changes. Exit to the
SETUP screen and refer to the section entitled Enter/Modify an
Access Level to gain access). The first character position of the
string will be in reverse video as shown in Figure 3.58. Refer to the
section entitled "Edit Text". When editing is complete, the screen
will appear as in Figure 3.59.
Figure 3.58 – Modify Text
