Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 57
Drive Installation 2-27
7000 “C” Frame - Marine
7000L-UM302B-EN-P – June 2013
Externally mounted fans and fan hood
The converter has cooling fans that are externally mounted (refer to
Figure 2.36). It is necessary to re-install and connect the fans, and
install the fan hood.
Shipped with the drive is a plate with the fans mounted and wired to
terminal blocks. On site, the fan assembly is to be mounted on the
top plate of the converter cabinet as shown in Figure 2.36.
Wiring for fan power is to be routed through the hole near the terminal
blocks. The plate is fastened to the cabinet with M6 hardware.
Connect wires to the terminal blocks per the electrical diagram.
Position the fan hood over the fan assembly and fasten with M6
hardware.

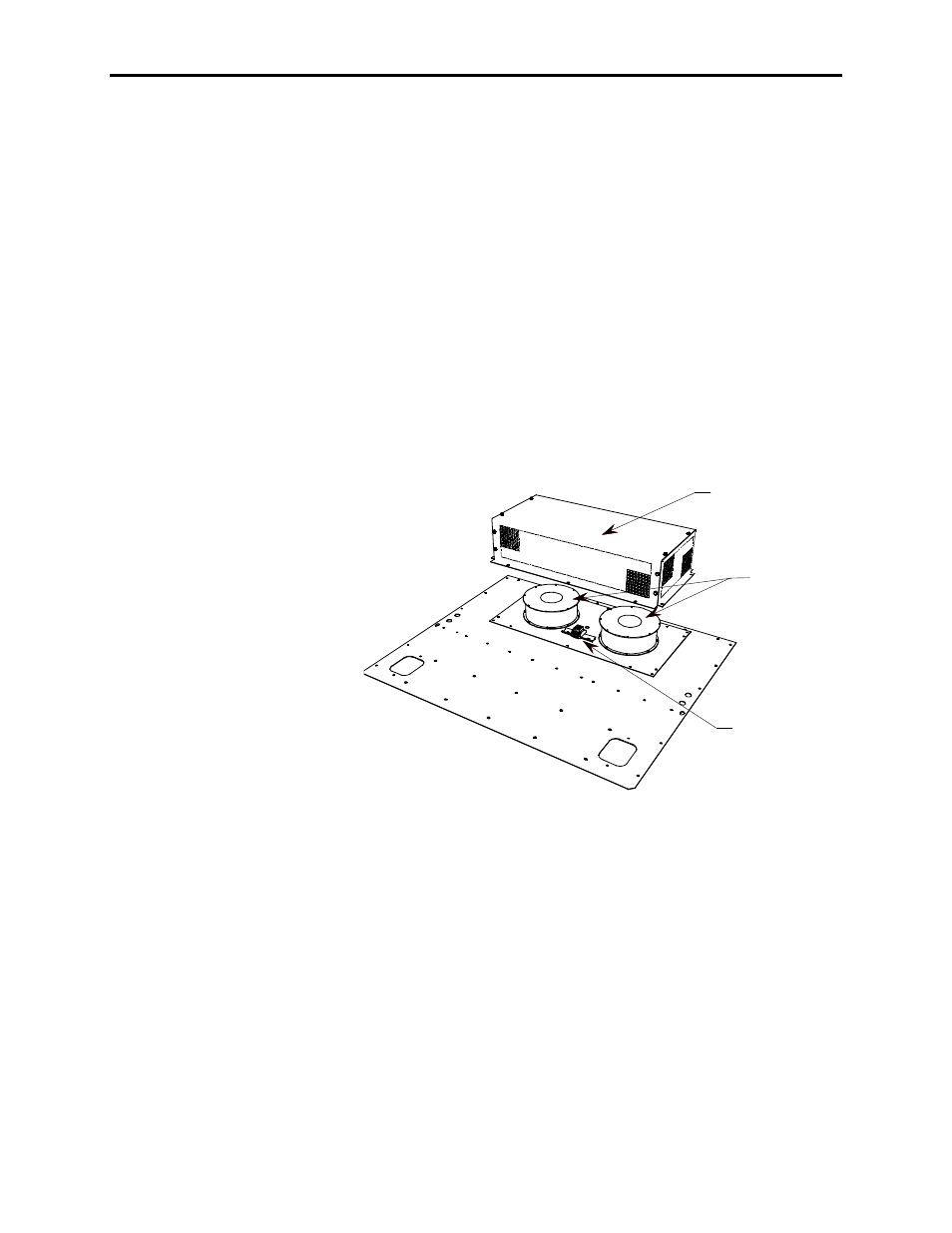

Fan Hood
External fans
Terminal blocks
Figure 2.36 – Fan Hood Installation (Externally Mounted Fans and Fan Hood)
