Drive Installation 2-15
7000 “C” Frame - Marine 7000L-UM302B-EN-P – June 2013
• Connection points are labeled on bus and DC Link Choke. Connect
cables from labeled stabs M+, L+, L-, L+ on DC Link Choke to
corresponding labeled stabs M+, L+, M-, L+ on bus.
Typical cable connection
from DC link choke to bus

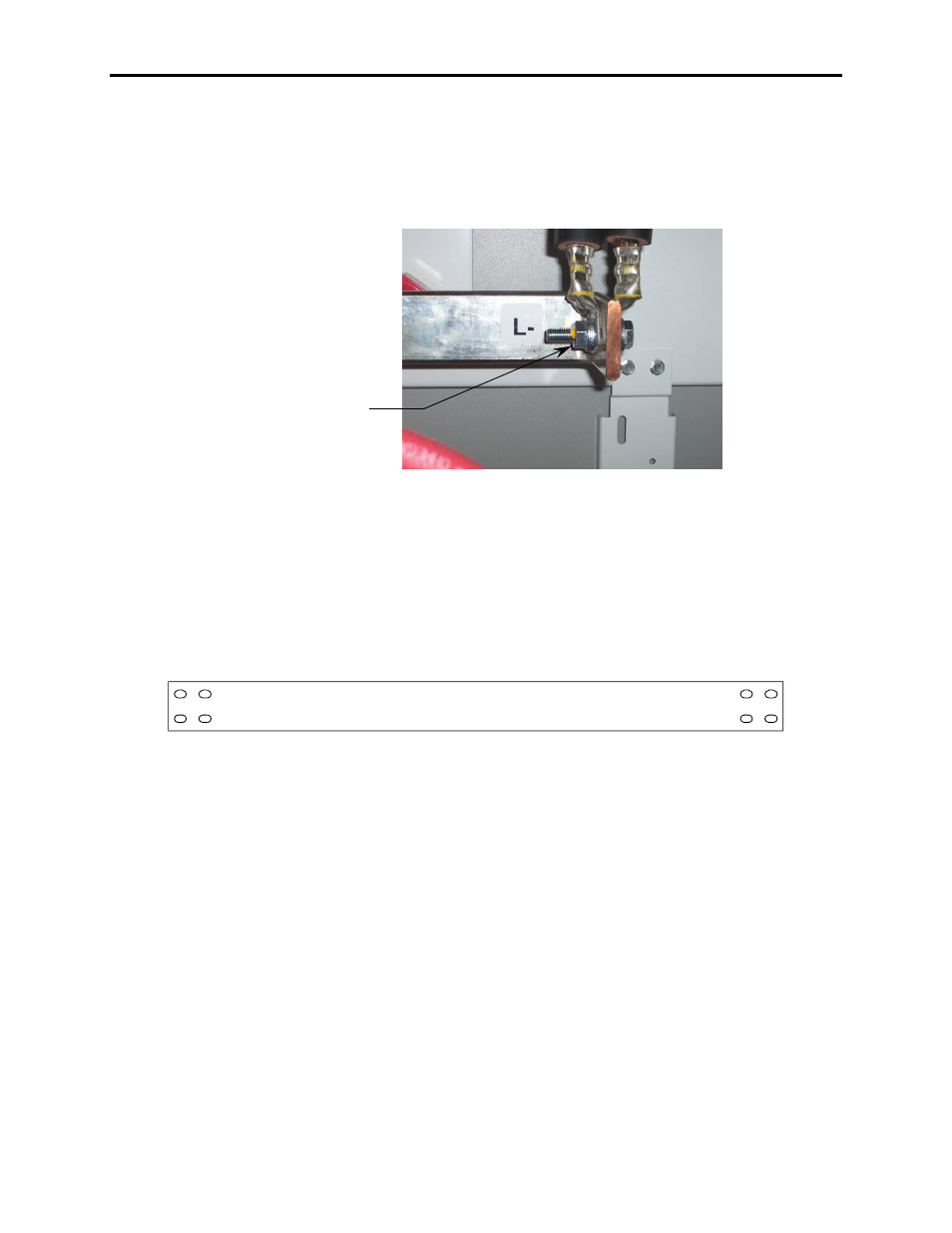

Figure 2.15 – DC Link Choke Cabinet Typical Cable Connection
• Connect Ground Bus Link from top left of DC Link Choke cabinet to
ground bus in adjacent capacitor cabinet by sliding underneath wire
duct. Use supplied hardware.
Figure 2.16 – Ground Bus Link
