Page 38

2-8
Drive Installation
7000L-UM302B-EN-P – June 2013
7000 “C” Frame - Marine
Joining Shipping Splits
(cont.)
LR
CAB
1
CABLE
CAB
2
CONV
CAB
3
CAP
CAB
4
CAP
CAB
5
DC LINK
CHOKE
CAB
6
PUMP
CAB
7
Lifting Angles
Wood Skid
1st SECTION
2nd SECTION

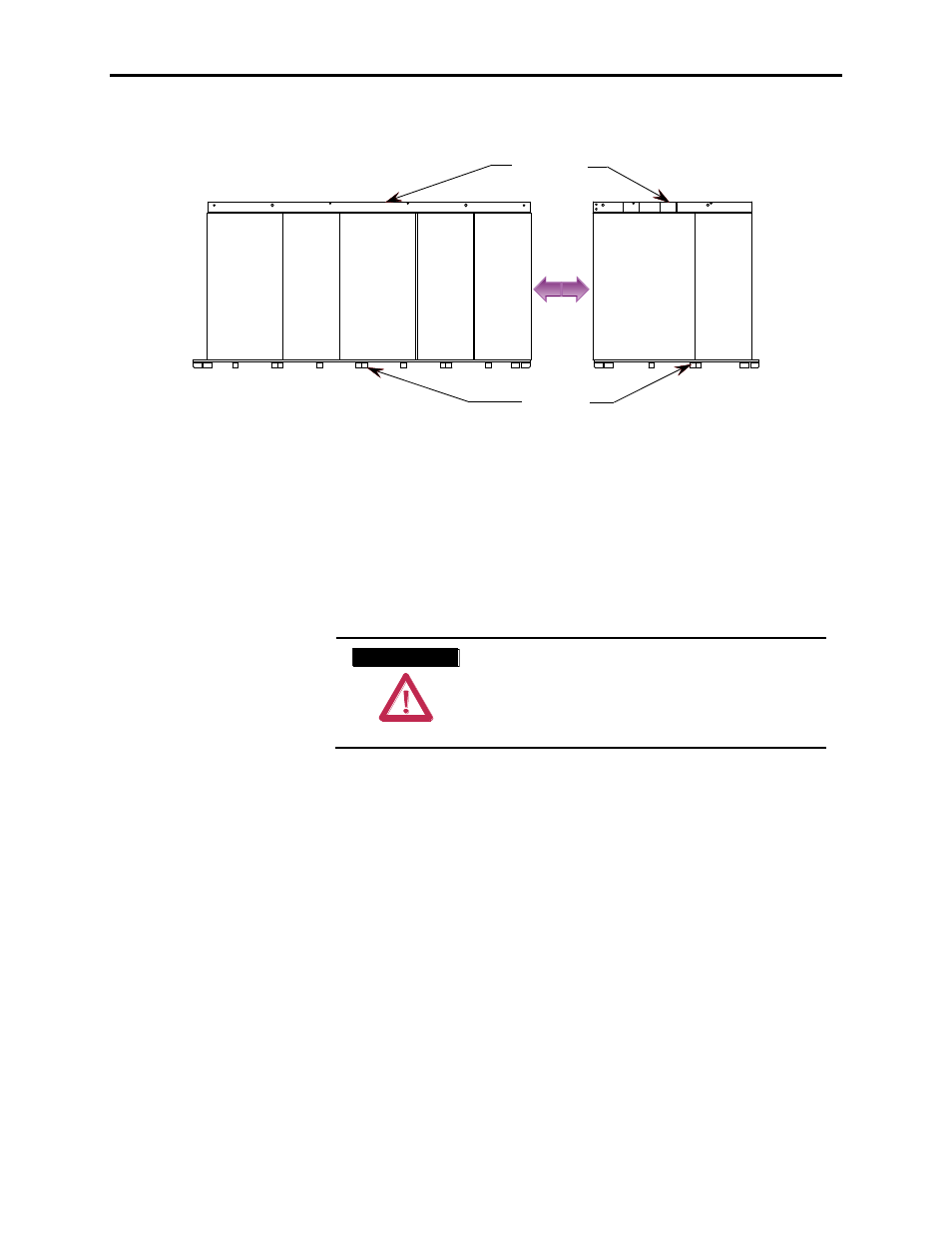

Figure 2.3 – Typical Split Drive
The 1st section consists of 5 cabinets.
The 2nd section consists of 2 cabinets.
Final placement requires that the 1st and 2nd sections are joined at
final installation site.
W A R N I N G
W A R N I N G
Heavy Magnetic DC Link Chokes up to 4600 kg
(10,000 lbs) are shipped inside DC Link Choke
cabinet. Professional Millwright/Rigging
contractors are required for safe final placement
of Drive sections.
Connect the Sections
Field connect the following:
CPVC pipe splices – 2 pieces
Power Bus Splice Kit – 4 pieces
Ground Bus Splice – 1 piece
Control Wiring
Tools Required (not supplied)
Adjustable or socket wrenches for 6-, 10-, 12-mm and 5/8”
bolt and nut hardware
Strap wrench for tightening CPVC unions
Screwdriver assortment
Cable ties
Wire cutters
