Operator Interface 3-45
7000 “C” Frame - Marine 7000L-UM302B-EN-P – June 2013

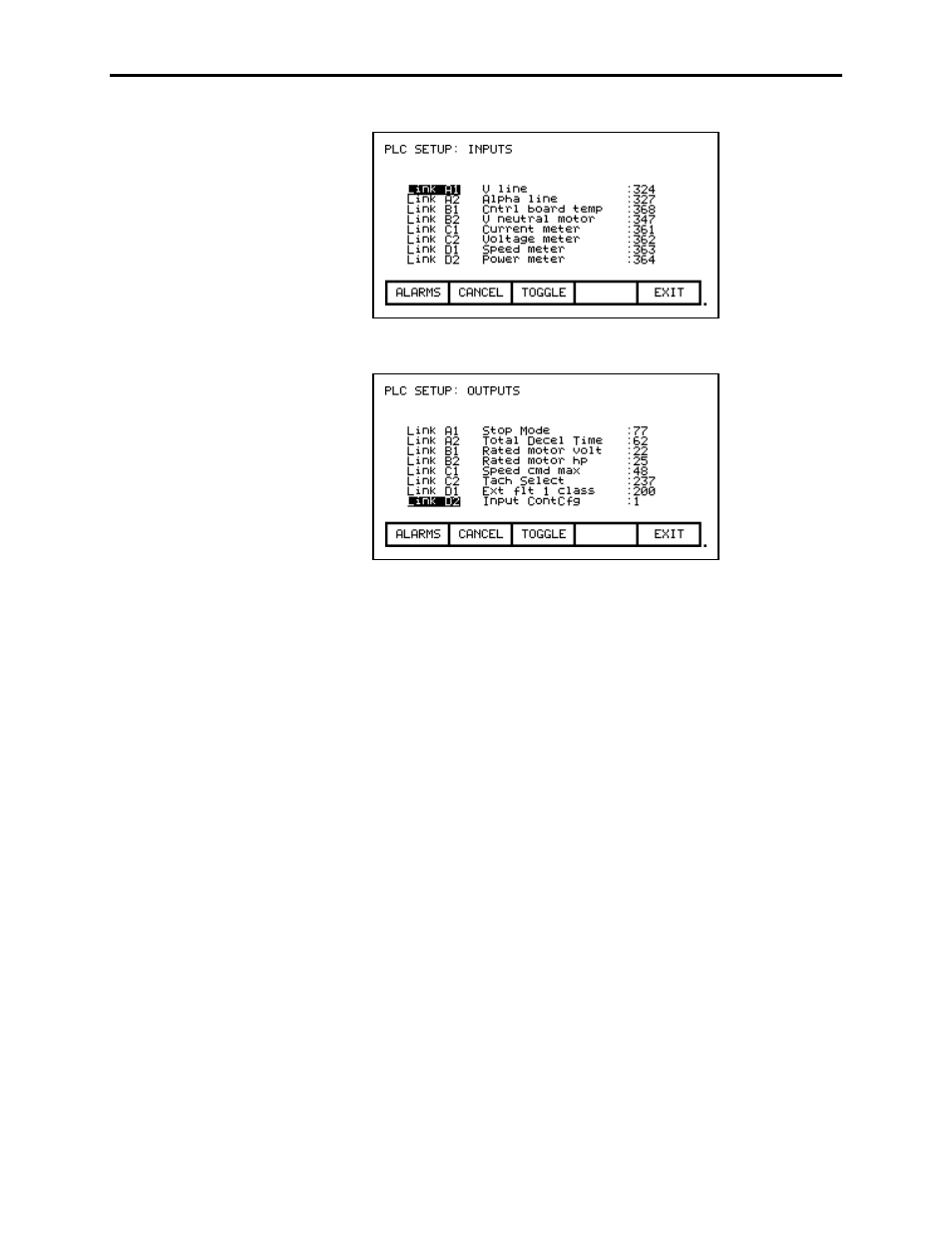

Figure 3.60 – PLC Input Links
Figure 3.61 – PLC Output Links
This will begin the selection process of a tag as described in the
section entitled "Select a Parameter". When selecting a tag for the
output words, only parameters will be allowed. Both parameters and
read-only parameters are allowed for the selection of input words.
When you have completed the selection process, the selected tag will
be assigned to the link. To remove an assignment to the highlighted
link, press the [delete] (Backspace) key.
The changes made do not take affect until you press [F10] and exit
the screen. Any time prior to this you may cancel all of the changes
made after coming to the screen by pressing the [F7] key.
XIO
The drive uses XIO adapters to hardwire to discrete inputs and
outputs. Each drive contains one or more of these modules. Each
module contains a unique address that is assigned automatically
according to where it is attached on the link. This address value can
be seen on the LED display of the module. The drive must be
configured with these address values to link them to a parameter in the
drive. To setup the XIO configuration, use the up/down arrow keys on
the SETUP screen to select the 'XIO' option and press the enter key
Note: This feature is currently inactive and is reserved for future
enhancements.
