Operator Interface 3-47

7000 “C” Frame - Marine

7000L-UM302B-EN-P – June 2013

Store/Retrieve Configuration (NVRAM)

To access the memory functions, press [F5] on the Top Level Menu.
Within this screen it is possible to perform three operations on the
memory of the drive. To perform these operations you must have the
proper access to the drive. Refer to the section entitled
Enter/Modify an Access Level .

Initialize


The drive contains a default set of parameters and setup information.
This can form a basis for configuring the drive. To initialize the drive
with the default set of data, press the [F3] key. The screen will appear
as in Figure 3.64, indicating the operation you are about to perform.


The screen then will ask you to confirm the operation. Press the [F8]
key to proceed, or the [F9] key to abort. Performing an initialization
will overwrite the data currently in the drive. Previous changes that
were saved to NVRAM will not be affected.

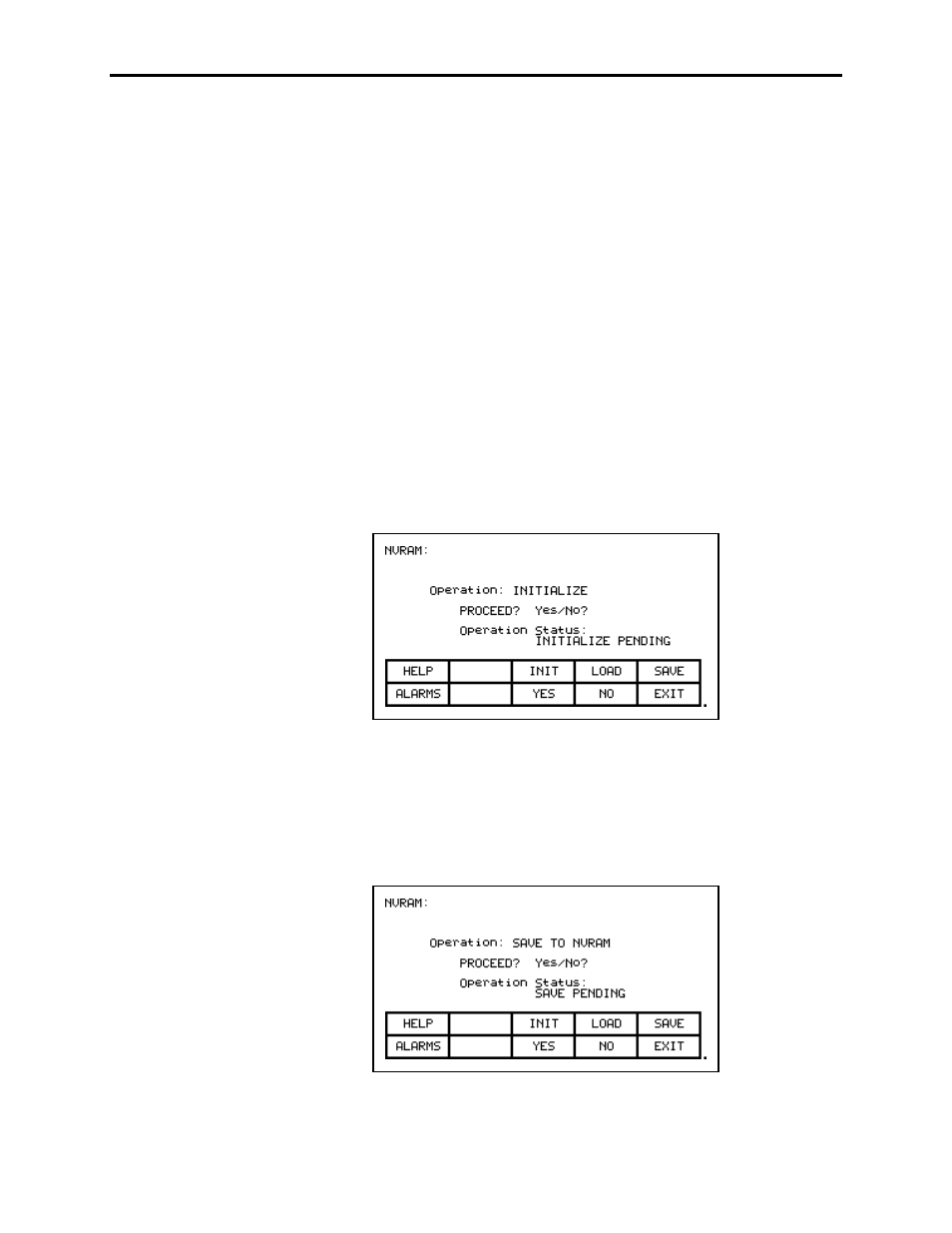

Figure 3.64 – Initialize Operation

Save

The changes that you have made to the drive data must be saved if
you do not want to lose the data when the drive is powered off. To
save the changes, press the [F5] key (Figure 3.65).

Figure 3.65 – Save Operation
