Drive Installation 2-19

7000 “C” Frame - Marine

7000L-UM302B-EN-P – June 2013


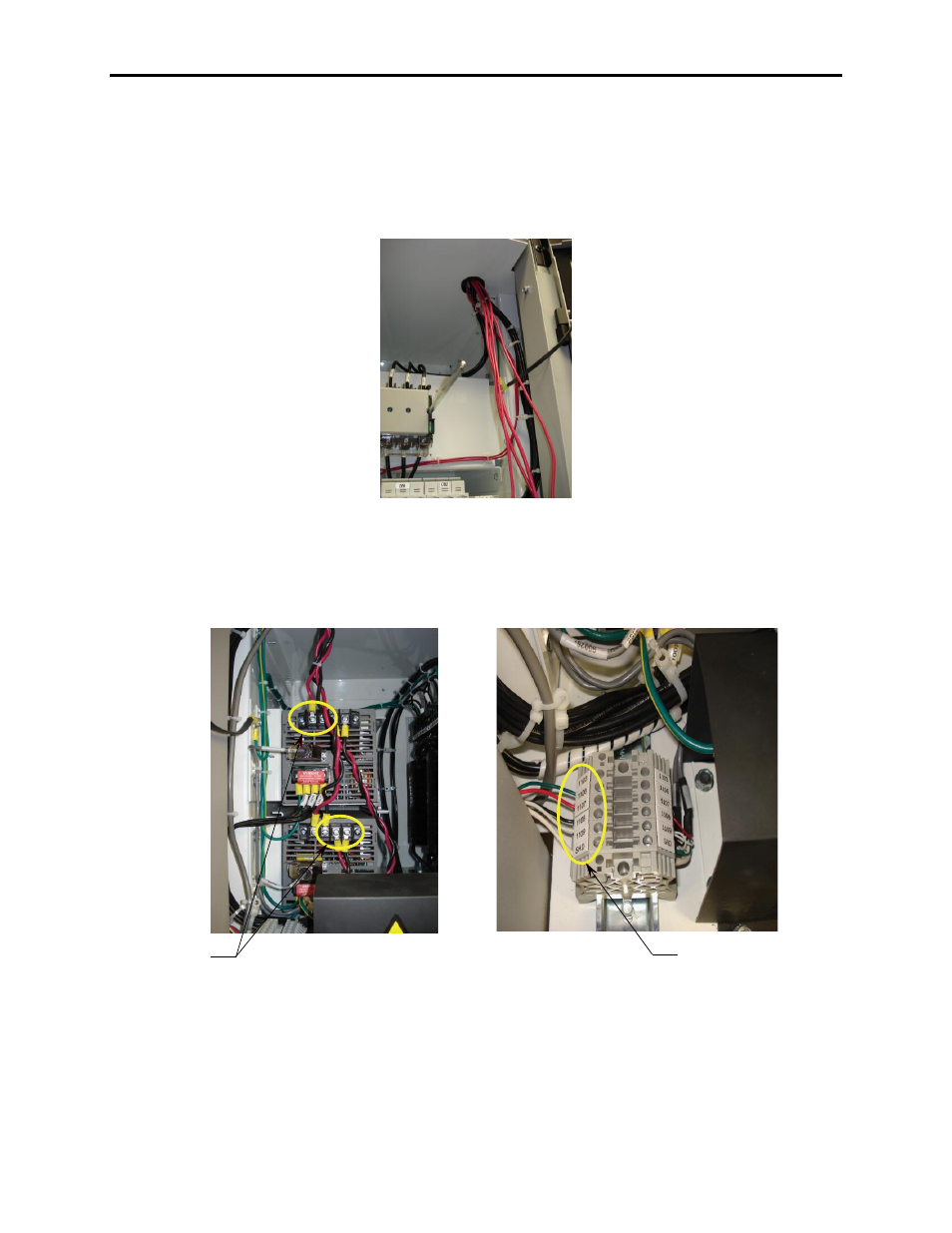

6. Route the control wires down through the grommeted cutout into the

control power disconnect section (Figure 2.23).

7. Connect the numbered wires to the corresponding numbered terminal

blocks (Figures 2.24 to 2.27).

Figure 2.23

8. Refer to the electrical drawing and make the above control wiring

connections.

56V DC Connections

Red – Positive

Black – Negative

AC DC fails Belden
cable connections

Figure 2.24

Figure 2.25
