4-142

Component Definition and Maintenance

7000L-UM302B-EN-P – June 2013

7000 ―C‖ Frame - Marine

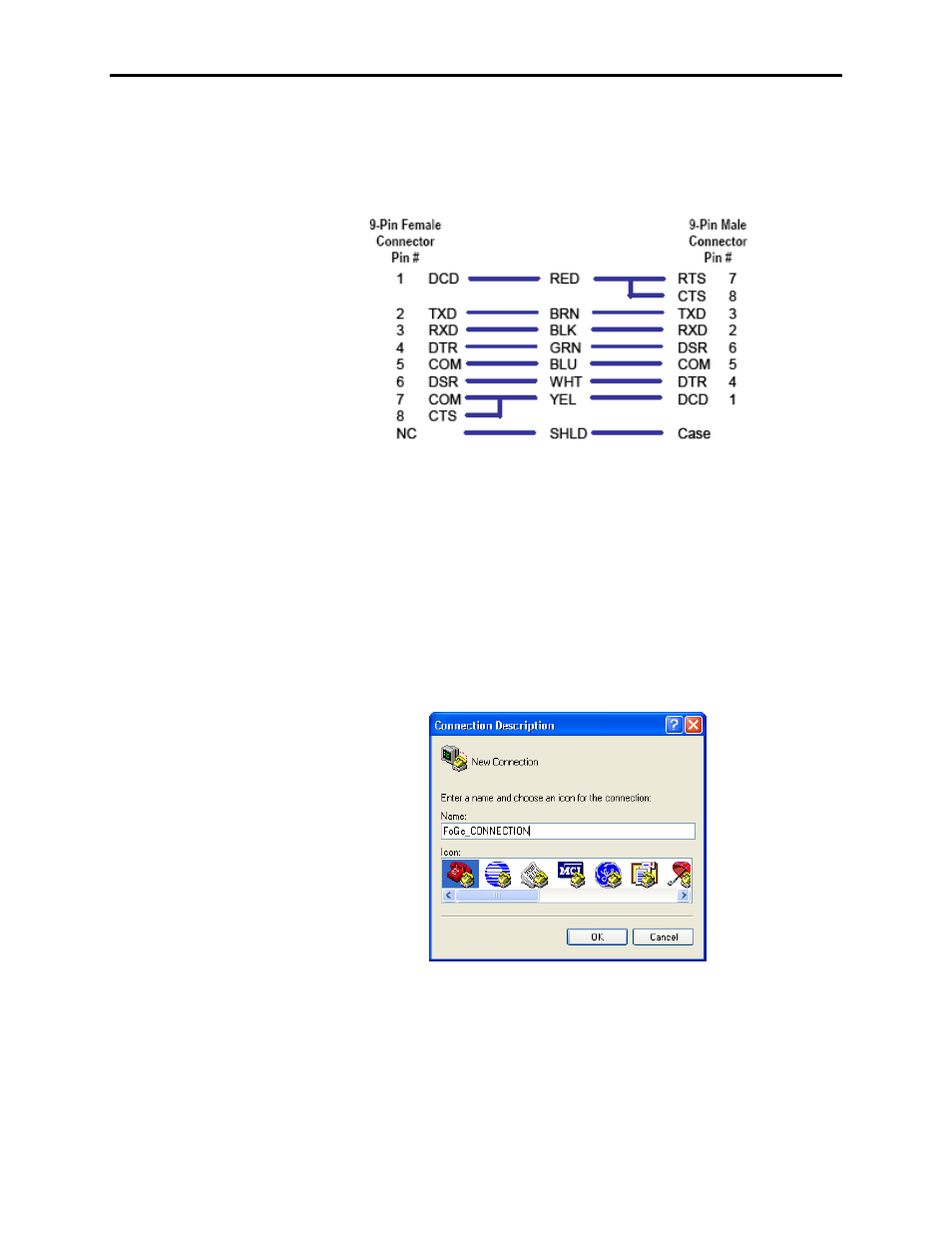

Here is a typical pin out of a complete null-modem cable.
Essentially, only 3 pins (2, 3 and 5) are all that is required.


Method

1. Connect your laptop to the drive using a 9-pin null-modem

cable to DPM data port (J4).

2. Set up HyperTerminal connection

-

Run HyperTerminal program

-

At the ‗Connection Description‘ window, enter any name
for new connection under the Name field as shown below
and then click OK.


-

The ‗Connect to‘ window will appear as shown below.
Select COM1 from the dropdown list next to ‗Connect
using
‘ and then click OK.

Printing (Uploading)

Control Data (cont.)
