Drive processor module – Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 265
Component Definition and Maintenance 4-89
7000 ―C‖ Frame - Marine
7000L-UM302B-EN-P – June 2013
Drive Processor Module
This module contains the control processors. It is responsible for all
the drive control processing and stores all of the parameters used for
the drive control.

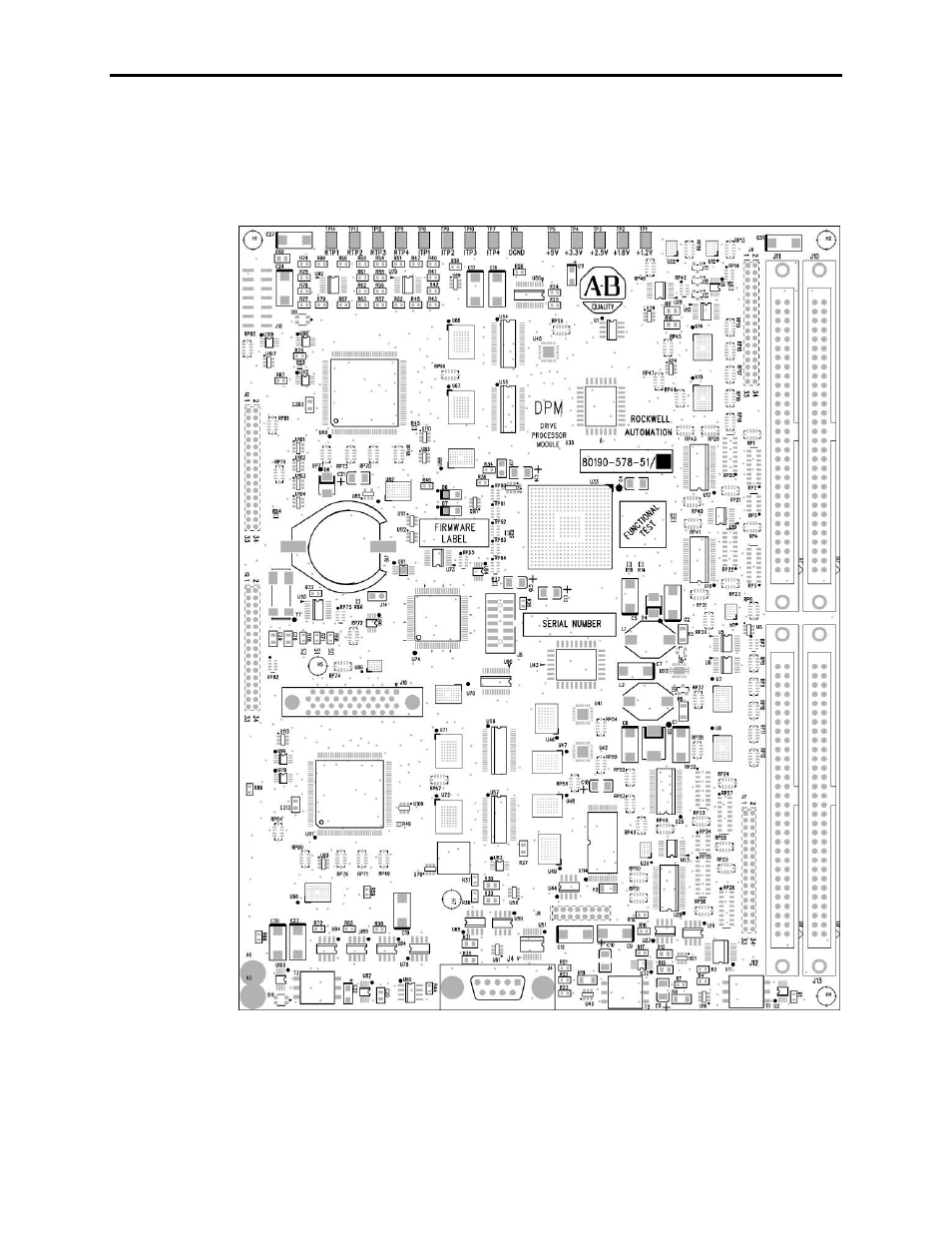

Figure 4.67 – Drive Processor Module (DPM)
