4-138

Component Definition and Maintenance

7000L-UM302B-EN-P – June 2013

7000 ―C‖ Frame - Marine

-

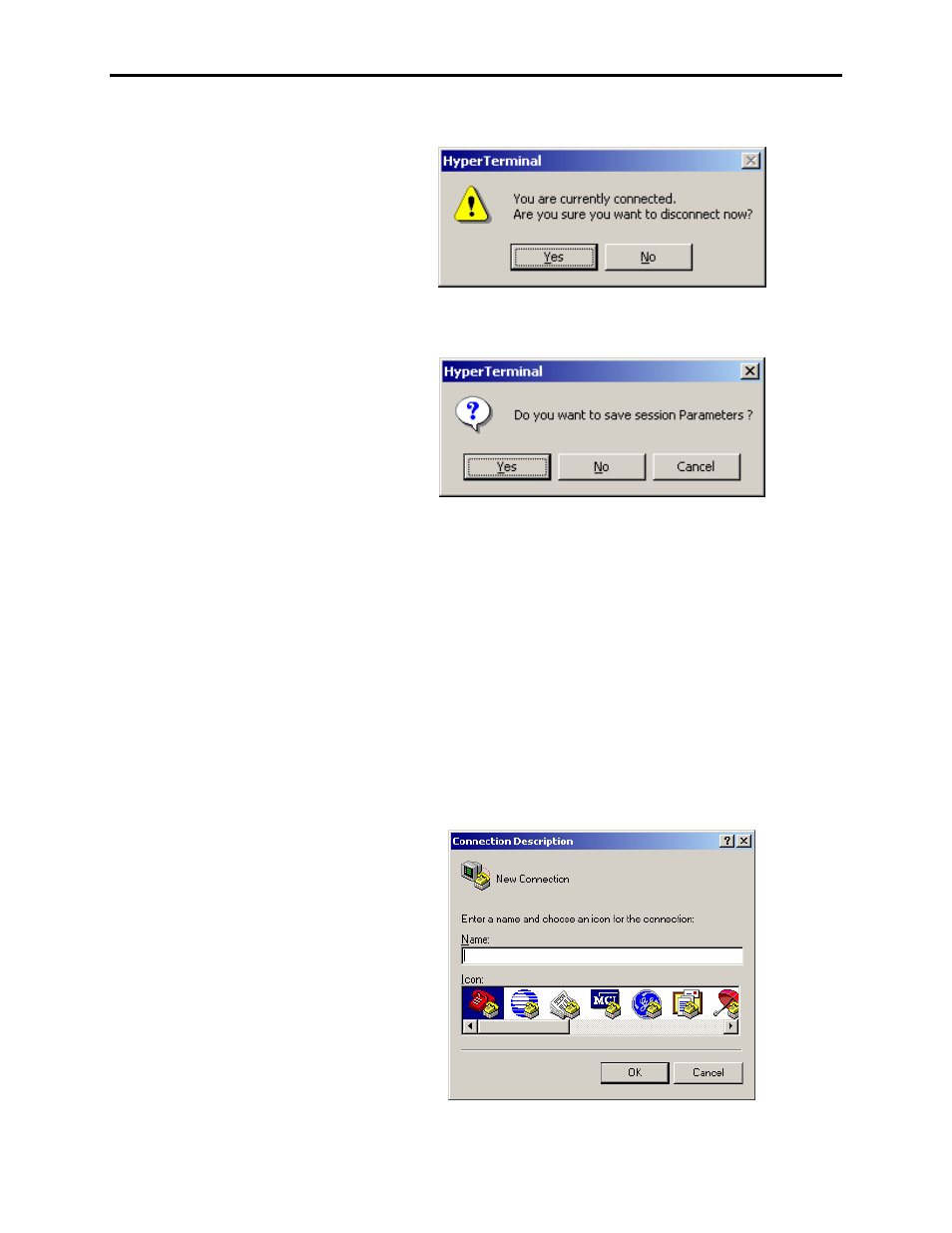

Click Yes. At this point, you will be prompted to save the
session.

-

Click Yes to terminate the HyperTerminal program.


Step-3: Uploading the Data from the drive

Now, that you have created an empty notepad file and setup
HyperTerminal connection, you are ready to upload the data
from the drive.


-

Connect a null-modem cable between your computer‘s serial
port and the serial port ‗J11‘ on the Analog Control Board
(ACB)
.


-

Restart HyperTerminal program. On the ‗Connection
Description
‘ window click Cancel.

Printing (Uploading)

Data from the Drive

(cont.)
