Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 297
Component Definition and Maintenance 4-121
7000 ―C‖ Frame - Marine
7000L-UM302B-EN-P – June 2013
If you press any Key after this message the PanelView will show:
COMMUNICATION ERROR
Connect your PC to the DPM data port J4. Locate the PowerFlex
7000 Medium Voltage Forge Drive firmware an executable file
Double click on the file to download the firmware.

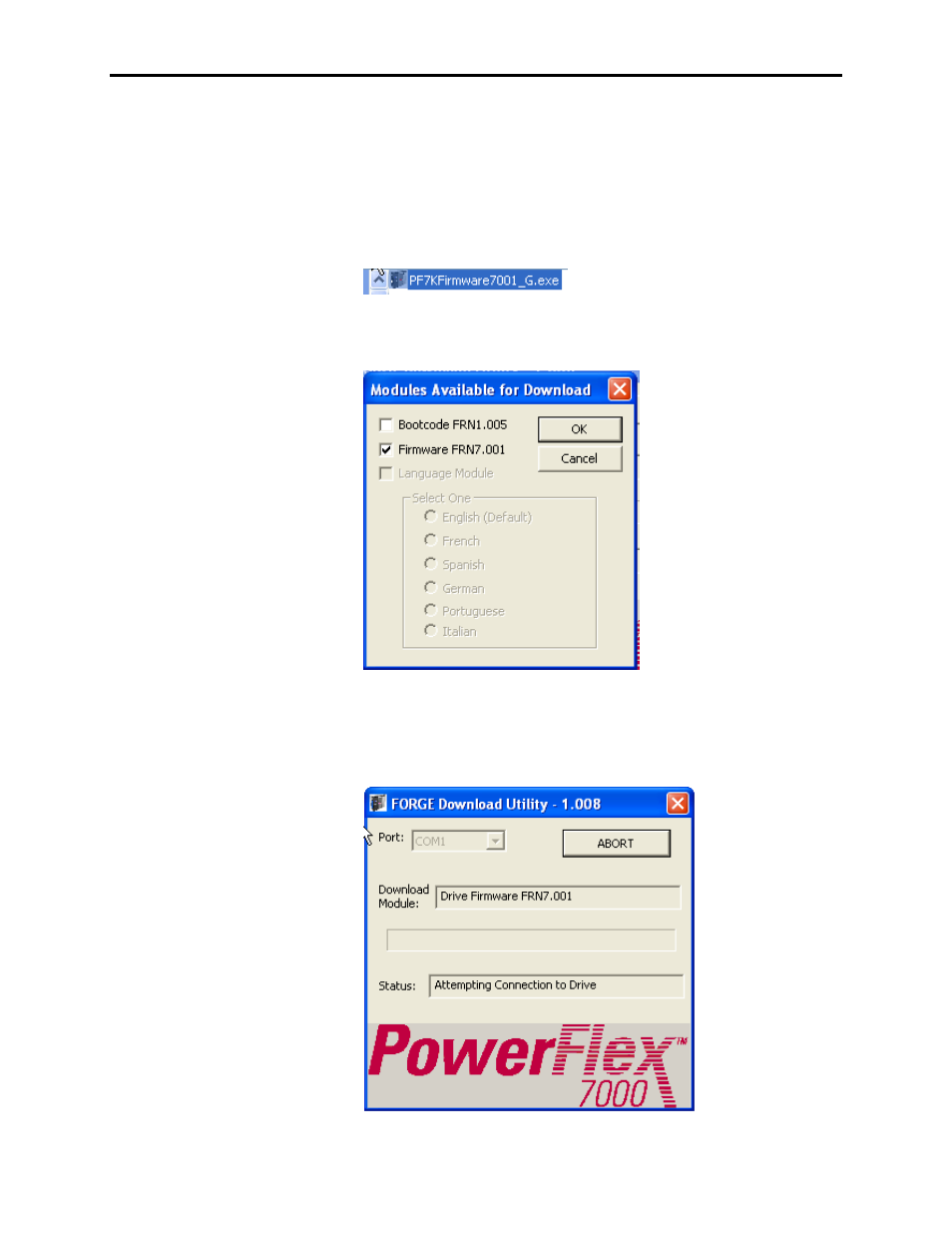

The executable program will open the following screen:
The DPM are preloaded with Bootcode and select the Firmware by
clicking in the checkbox against Firmware and click OK. This will
start the process of the downloading of firmware, attempting
connection to the drive. The following screen will be displayed:
