Control Wire Power Connections

Thermostat and Fan Connections

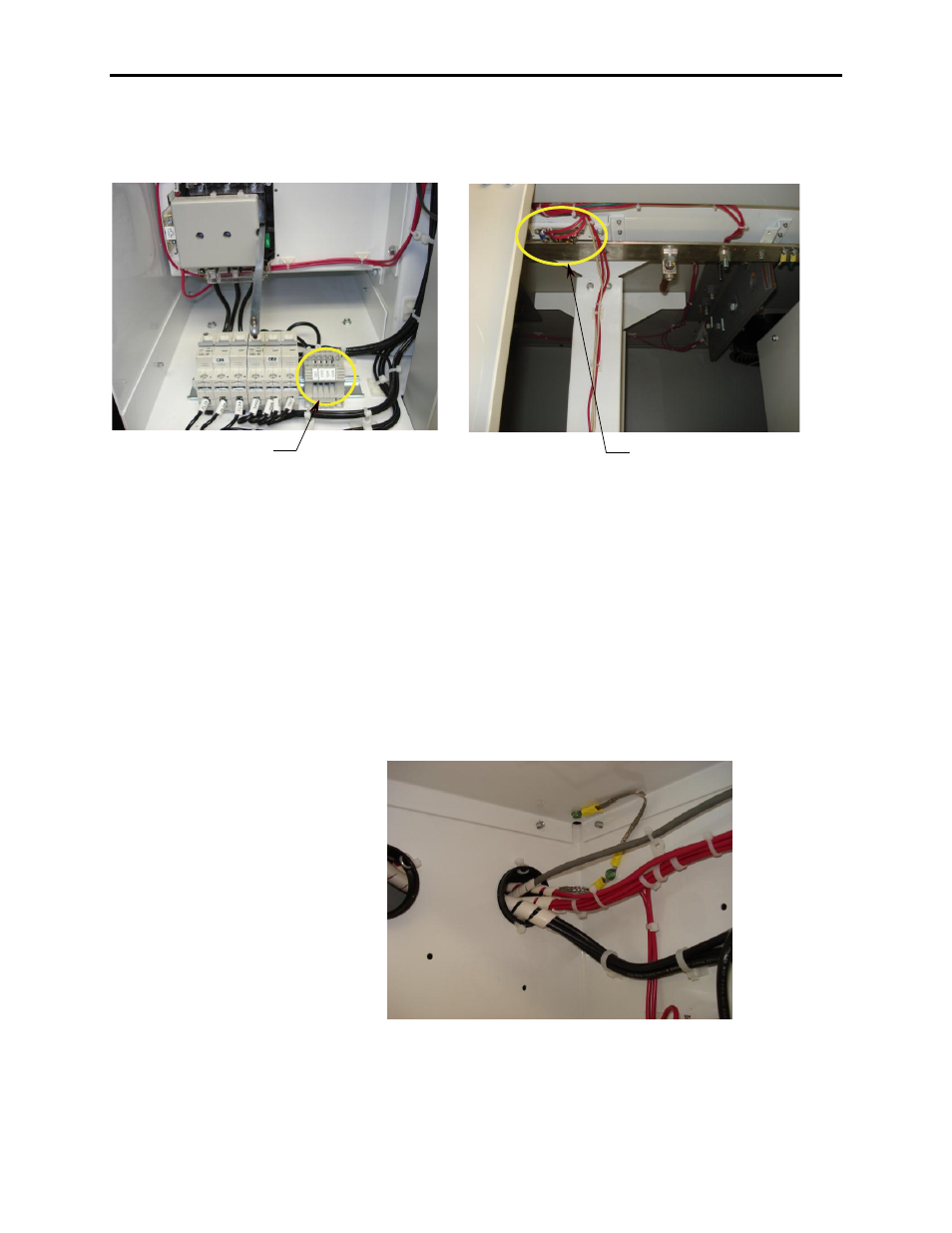

Figure 2.26

Figure 2.27

9. Once all the connections have been made and neatly routed in each

section, the excess control wires can be looped up in the top
wireways.

10. Swing out the control section in the pump control cabinet.

11. Route the XIO link cable, control power wires and the fiber optic

cable down through the wire ways grommeted cutout.

12. Route the XIO link cable, the control power wires into the pump

control cabinet through the upper side grommeted cutout.

13. Route the fiber optic cable into the pump control cabinet through the

lower side grommeted cutout.

Figure 2.28 -– 120 volt and XIO cables through upper cutout

14. Connect the XIO link cable to the XIO board “XIO link A”

connector. (Figure 2.29)
