Component Definition and Maintenance 4-119

7000 ―C‖ Frame - Marine

7000L-UM302B-EN-P – June 2013

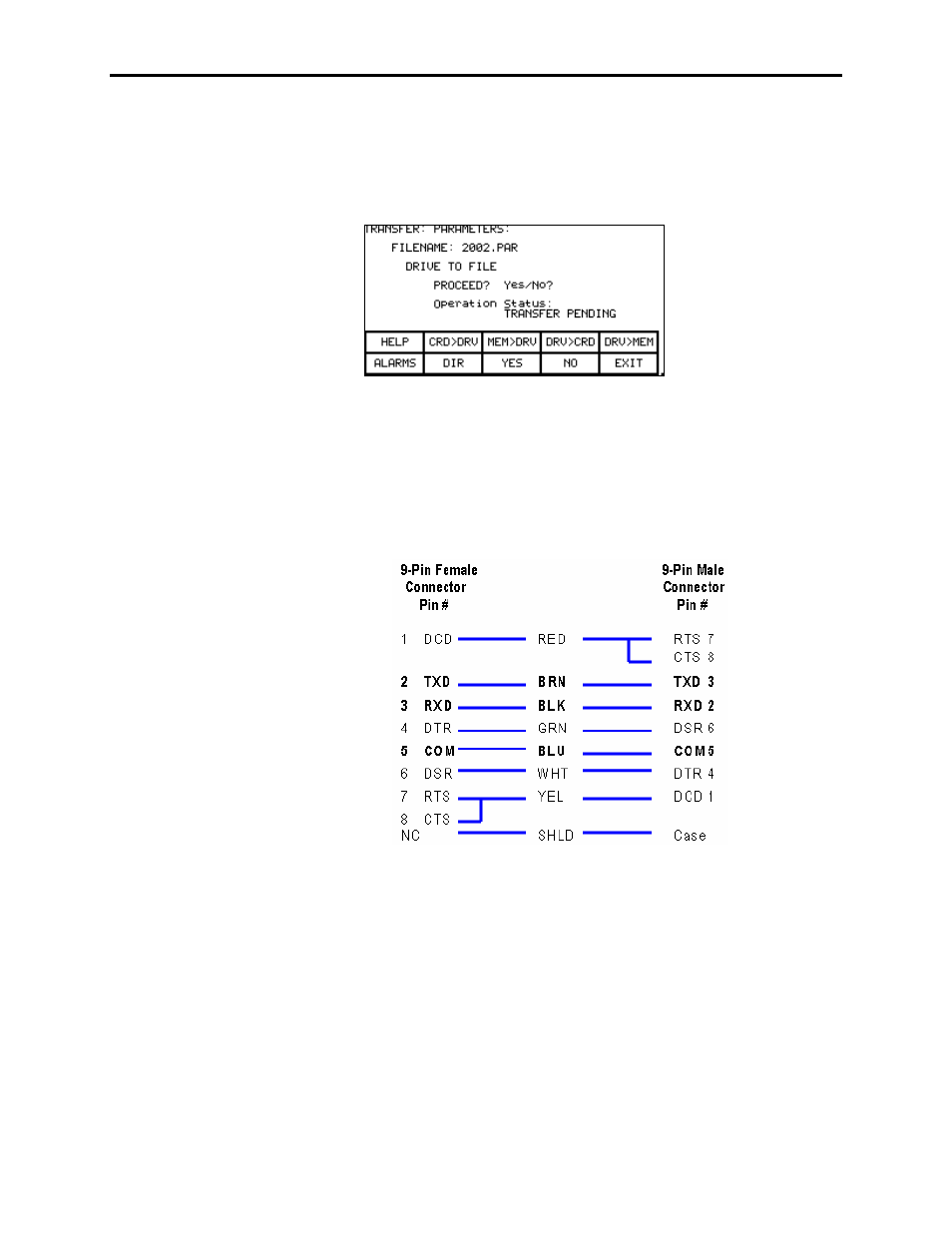

Saving to the card means that you will have to choose a file name.
Use the Up and Down arrows to select the character, and then use the
Right arrow to go to the next character. Press the Enter key when
finished.

Press F8 for YES, and the parameters will be transferred to the card.
Press F10 to EXIT.

Here is a typical pin out of a complete null-modem cable.
Essentially, only 3 pins (2, 3 and 5) are all that is required.

9-Pin Female

9-Pin Male

Connector

Connector

Pin #

Pin #
