Simplified electrical drawings – Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 26
1-12
Overview of Drive
7000L-UM302B-EN-P – June 2013
7000 “C” Frame - Marine

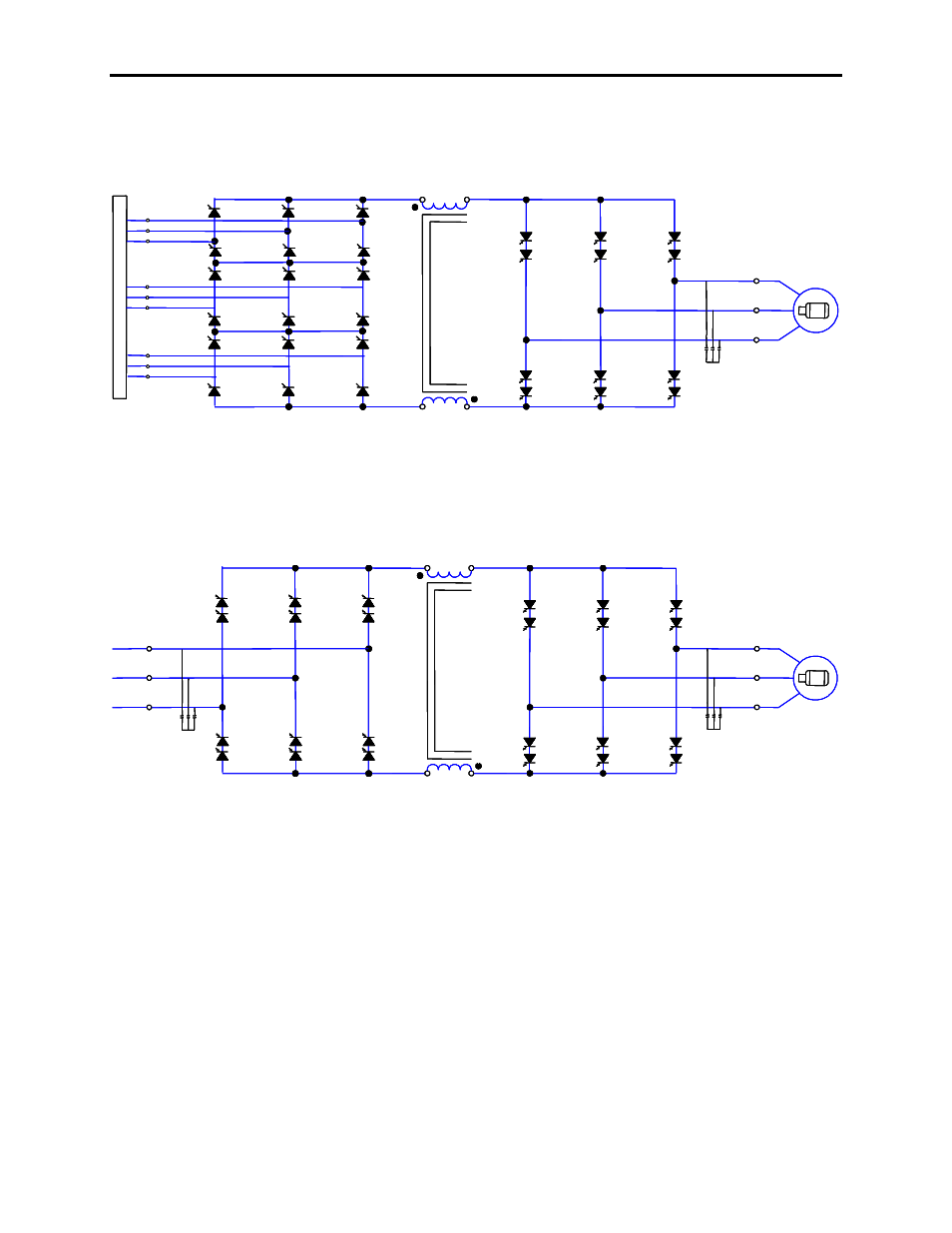

Simplified Electrical Drawings
LINE CONVERTER
L-
M-
DC LINK
L+
M+
MACHINE CONVERTER
U (T1)
V (T2)
W (T3)
4U (Z1)
4V (Z2)
4W (Z3)
ISTX
SCRs
3U (Y1)
3V (Y2)
3W (Y3)
2U (X1)
2V (X2)
2W (X3)
SGCTs
LINE CONVERTER
L-
M-
DC LINK
L+
M+
MACHINE CONVERTER
U (T1)
V (T2)
W (T3)
4U (Z1)
4V (Z2)
4W (Z3)
ISTX
SCRs
3U (Y1)
3V (Y2)
3W (Y3)
2U (X1)
2V (X2)
2W (X3)
SGCTs
3300 / 4160 Volt – 18 Pulse
LINE CONVERTER
L-
M-
DC LINK
L+
M+
MACHINE CONVERTER
U (T1)
V (T2)
W (T3)
SGCTs
2U (X1)
2V (X2)
2W (X3)
SGCTs
LINE CONVERTER
L-
M-
DC LINK
L+
M+
MACHINE CONVERTER
U (T1)
V (T2)
W (T3)
SGCTs
2U (X1)
2V (X2)
2W (X3)
SGCTs
3300 / 4160 Volt – Active Front End
