Component Definition and Maintenance 4-37

7000 ―C‖ Frame - Marine

7000L-UM302B-EN-P – June 2013


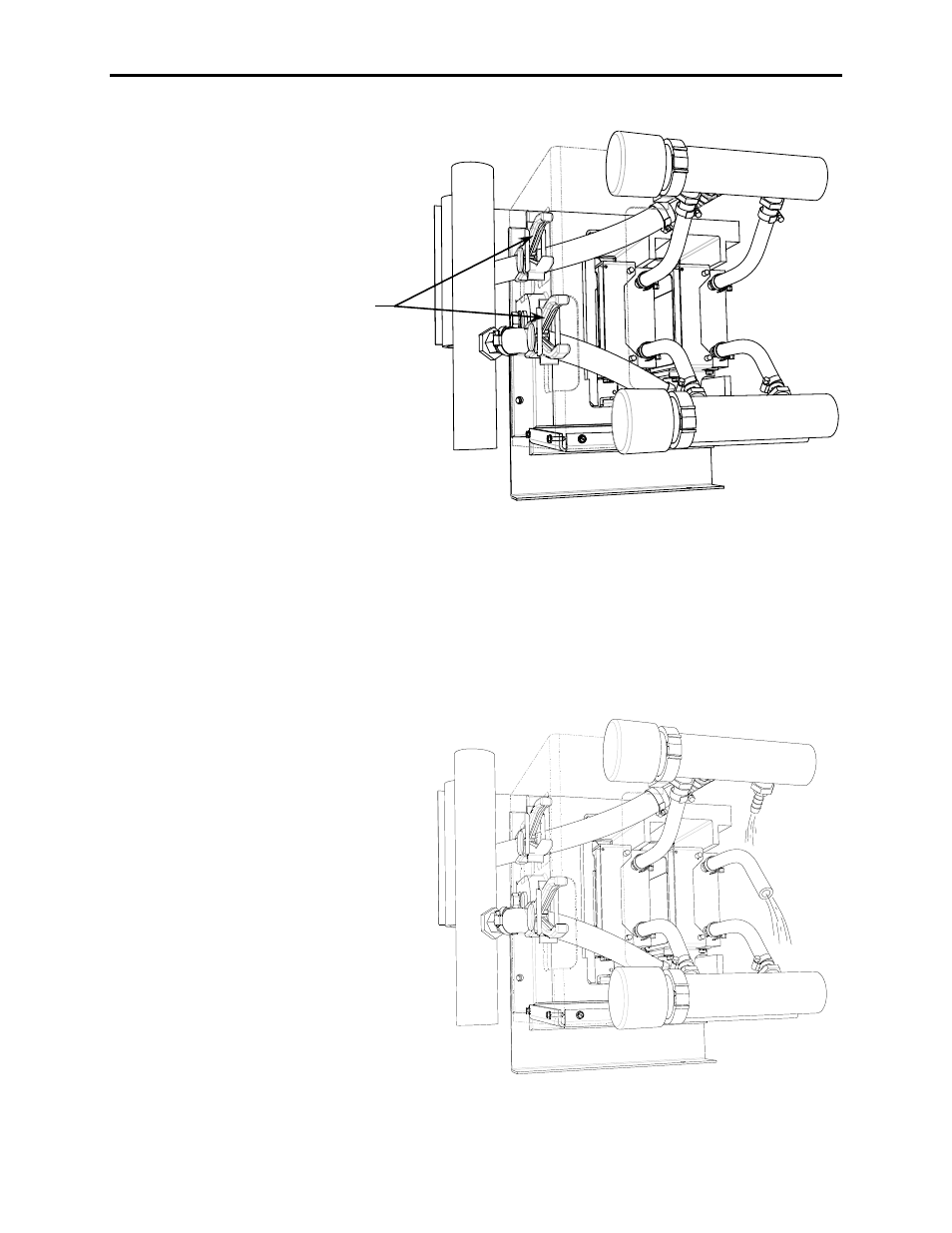

Figure 4.27 – Converter PowerCage Module (Service – per Step 6)


Loosen the hose clamp of the top hose of the outlet manifold of the
chillblock to be serviced. Slide the hose clamp toward the chillblock.


7. Have a hose plug assembly and a M10 bolt ready. Per Figure

4.27, pull the hose from the upper manifold hose barb and collect
the fluid in a container.

Figure 4.28 – Converter PowerCage Module (Service – per Step 7)

Clamps
