Component Definition and Maintenance 4-131

7000 ―C‖ Frame - Marine

7000L-UM302B-EN-P – June 2013

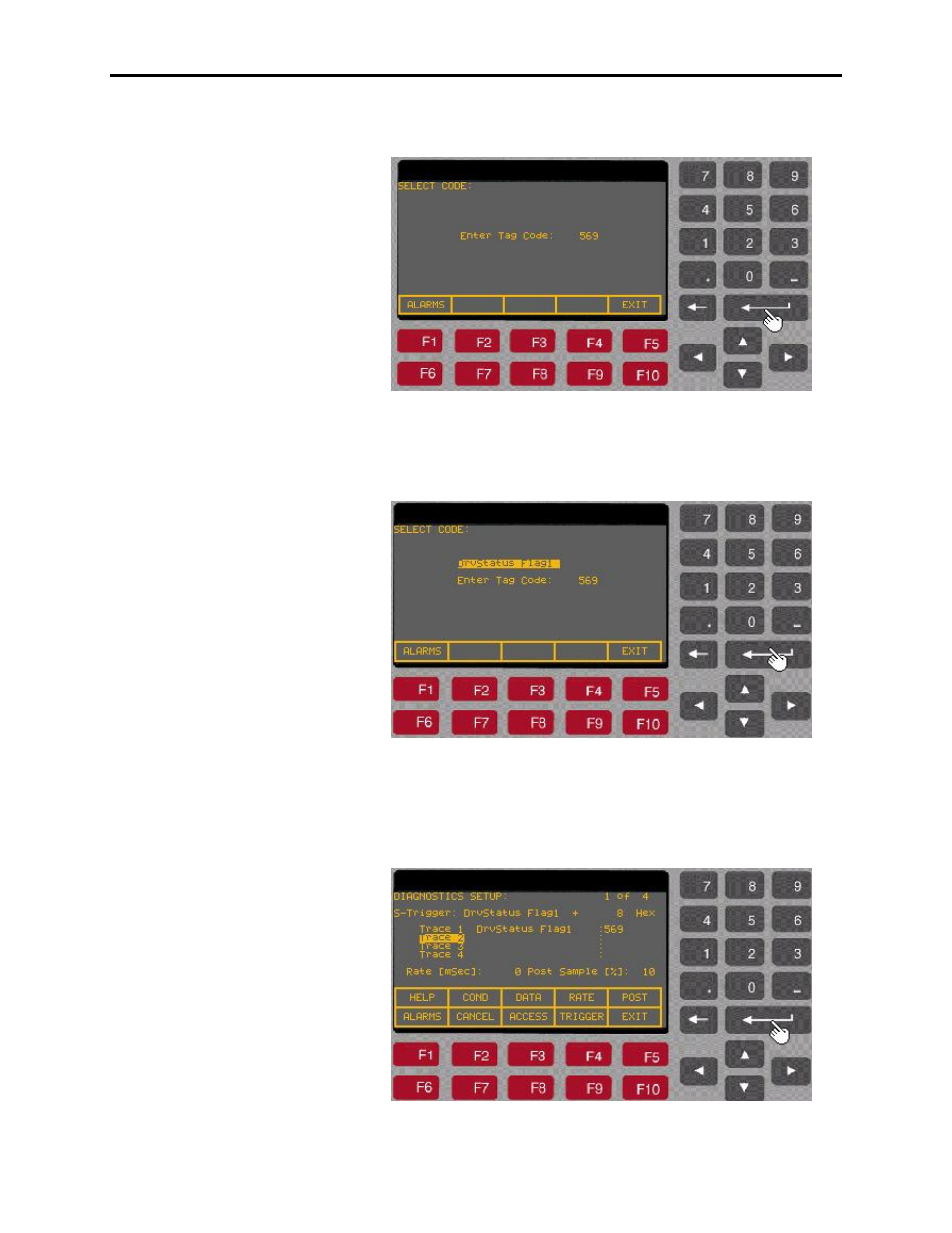

7. Enter the parameter linear number (in our example we have

entered 569) and then press Enter key. Once you press the Enter
key, the parameter description will appears on the screen as
shown in the picture below.

8. Press Enter key again. The display will change to the

‗Diagnostics Setup‘ screen and the desired parameter gets
assigned to Trace 1. Now, press the down arrow key to move the
cursor to Trace 2 and repeat steps 3 – 8 above to assign a
parameter to Trace 2.
