Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual

Page 127

background image

Operator Interface 3-31

7000 “C” Frame - Marine

7000L-UM302B-EN-P – June 2013

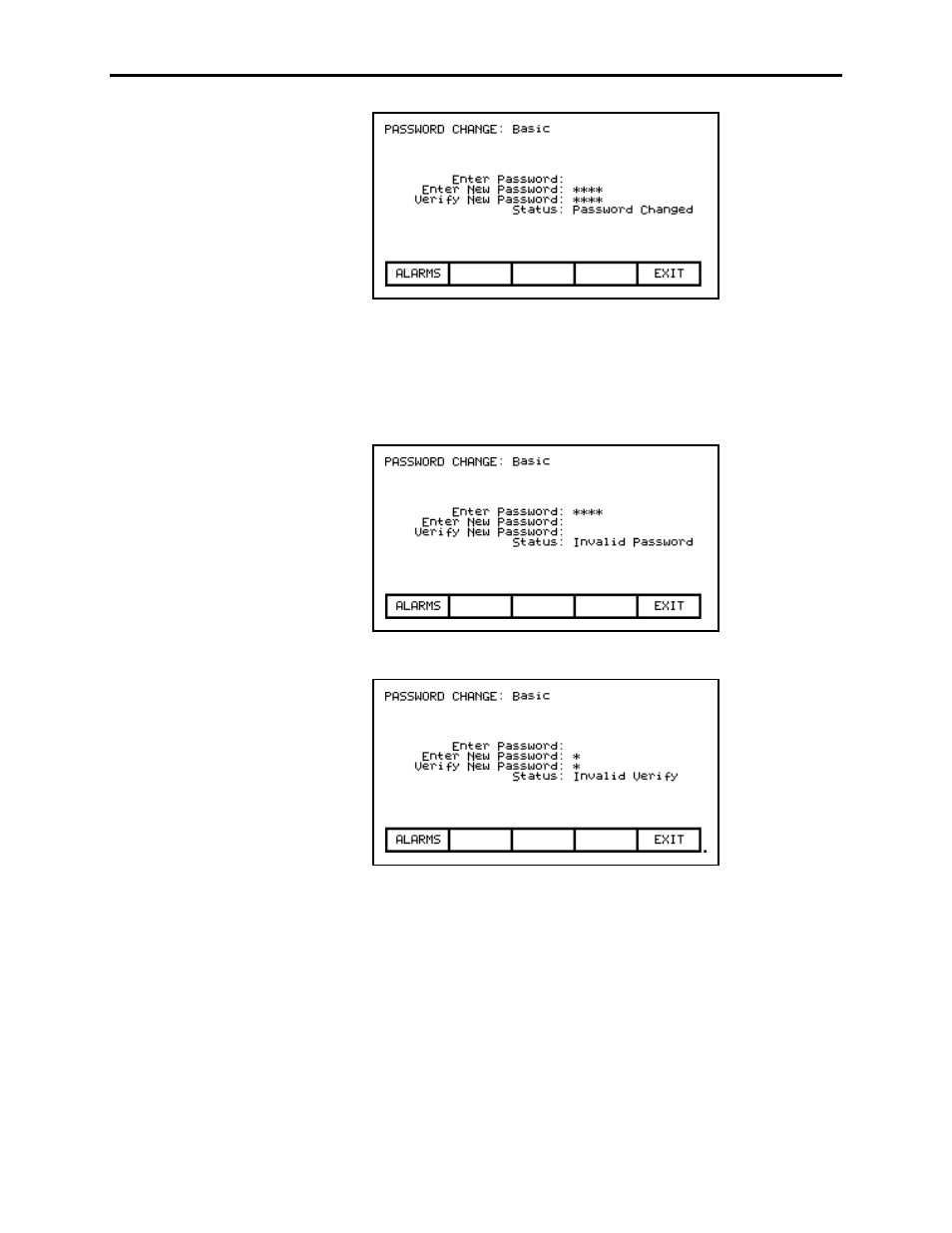

Figure 3.36 – PIN Change Completed


At the end of the operation you will see a status as shown in either
Figures 3.36, 3.37 or 3.38 depending on whether you successfully
changed the PIN, incorrectly entered the existing PIN or incorrectly
verified the new PIN.

Figure 3.37 – Invalid PIN

Figure 3.38 – Invalid PIN Verification


If you were not successful in changing the password, simply start
over again by typing in the current password value.
