Printing (uploading) control data (cont.) – Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 320
4-144
Component Definition and Maintenance
7000L-UM302B-EN-P – June 2013
7000 ―C‖ Frame - Marine
-

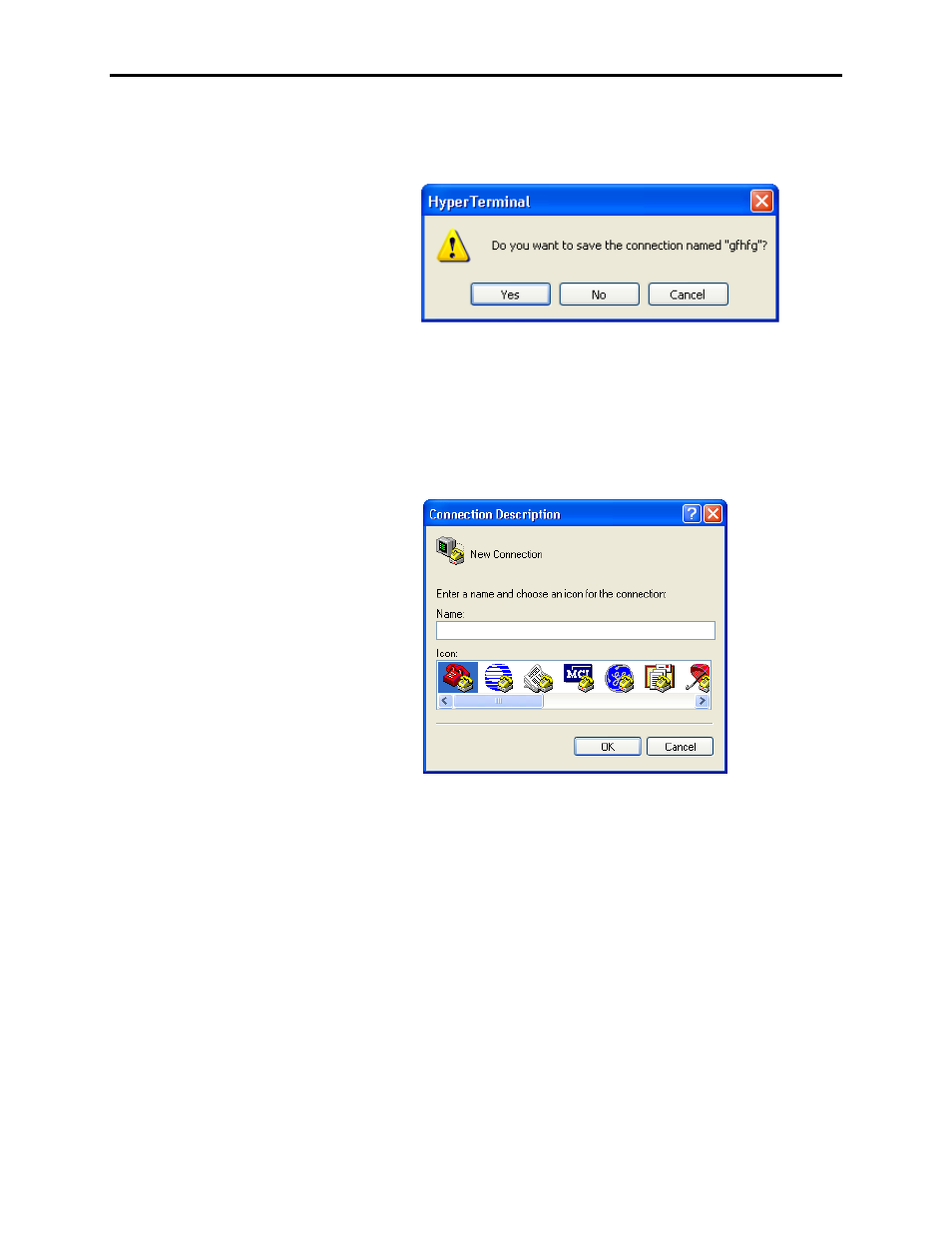

Click Yes, and you will be prompted to save the connection.
-
Click Yes to terminate the HyperTerminal Program.
3. Printing Control Data
-
Restart HyperTerminal program.
-
At the ‗Connection Description‘ window as shown below,
click Cancel.
-
From the File menu, click Open… The Open window will
appear. Locate the HyperTerminal connection that you just
created in step-2 above (ForGe_CONNECTION in this
example) and then click Open.
Printing (Uploading)
Control Data (cont.)
