Tachometer Feedback Board

Encoder Options


There are two positional encoder interface boards that may be used
with the PowerFlex 7000 Forge Control. The encoder interface boards
do not have any user accessible test points; however, buffered and
isolated versions of each of the signals A+, A-, B+, B-, Z+ and Z- are
available on the ACB at test points TP45-TP50.


Regardless of which type of encoder board, the following conditions
should be adhered to:

1. Do not attach encoders with open collector outputs to the drive.

Acceptable outputs are Analog Line Driver or Push Pull.

2. The drive will not operate properly if using single ended

Quadrature encoders. Rockwell Automation recommends using
differential inputs only for these types of encoders. Single ended
outputs are only acceptable for Positional Encoders.


20B-ENC-1 & 20B-ENC-1-MX3 Encoder Interface

This encoder interface allows the drive to be connected to a standard
Quadrature Encoder. The 20B-ENC encoder interface provides 3
optically isolated differential encoder inputs for A and B phases as
well as a Z track. These inputs cannot be configured for use with a
single ended Encoder. Differential encoders only are supported. The
board also provides a galvanically isolated 12V/3Watt supply to
power the attached encoder. The 20B-ENC-1 Encoder interface may
be configured for +5V operation, however Rockwell recommends
operation at 12V.

J3

J3

J2

+1

2V

1

2

3

12

11

2

1

+5

VR

EF

1

2

3

+5V

+12V

1

2

3

+12V

+5V

12

11

2

1

12

11

2

1

Output

Config.

J2

Intput

Config.

Note: Must be configured

for 12V operation.


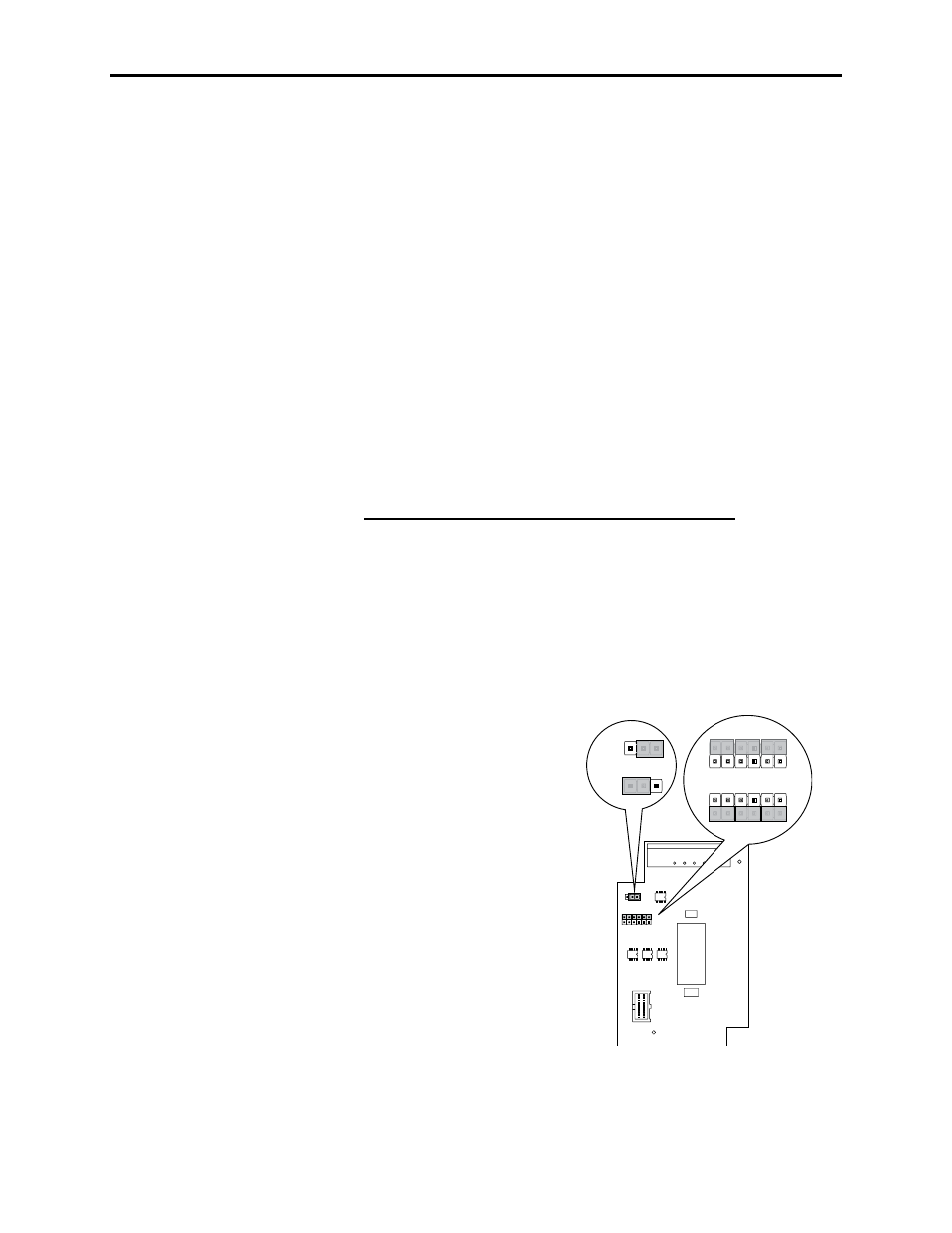

Figure 4.74 – Encoder Interface (20B-ENC-1 and 20B-ENC-1-MX3)
