Rockwell Automation 7000L PowerFlex 7000 Medium Voltage AC Drive C Frame - Marine User Manual
Page 191
Component Definition and Maintenance 4-15
7000 ―C‖ Frame - Marine
7000L-UM302B-EN-P – June 2013
I M P O R T A N T
I M P O R T A N T
The maximum torque for the capacitor terminal
is 3.4 Nm (30 lb-in).
Important!
Torque on Resistor Bank Assembly
1,2 Nm (11.0 lb-in) maximum
Loosen screws to release capacitors
Remove screws for
replacing resistor bank.
Important!
Torque on capacitor terminals
3,4 Nm (30 lb-in) maximum

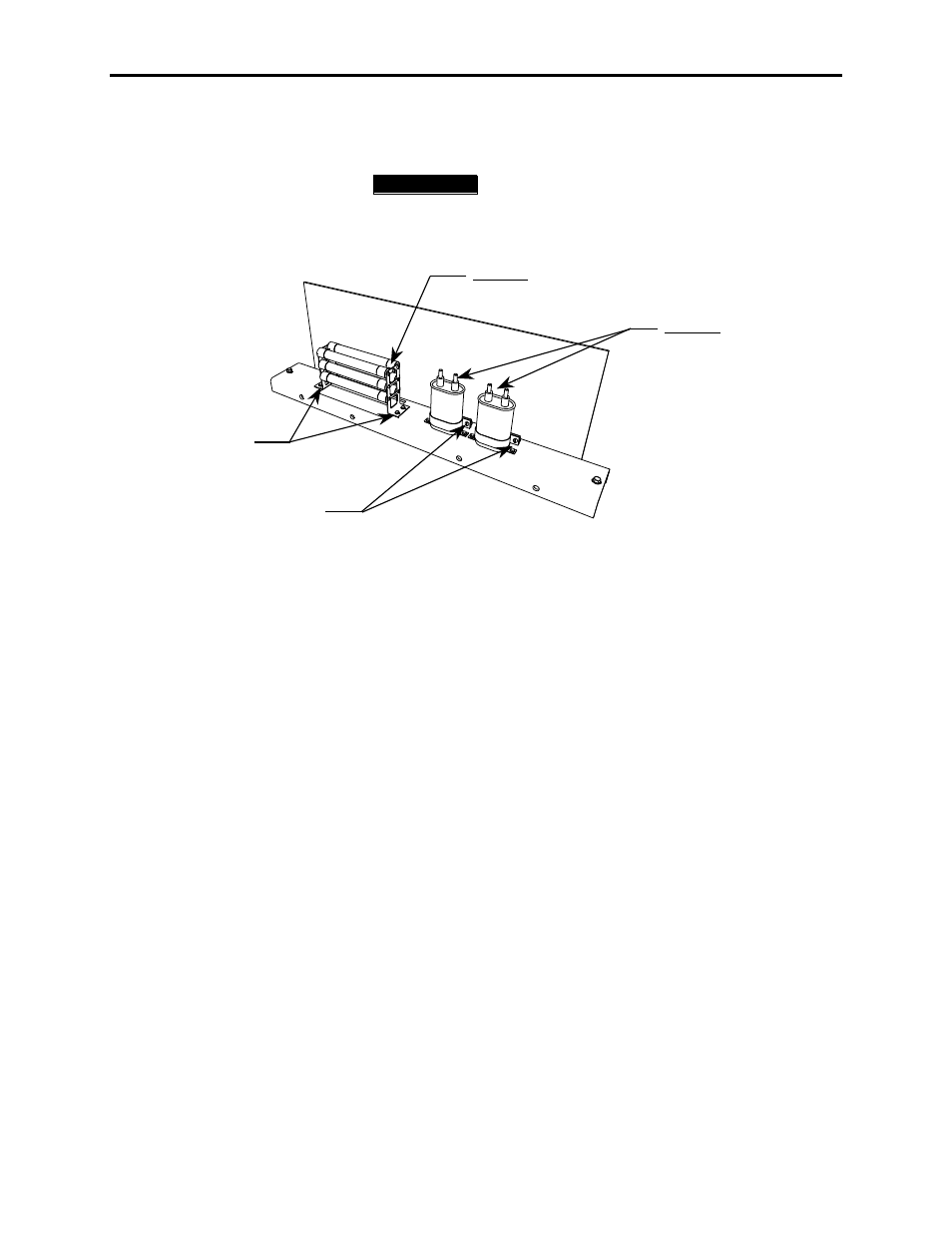

Figure 4.11 – Ground Filter Capacitor/Resistor
