Operator Interface 3-25

7000 “C” Frame - Marine

7000L-UM302B-EN-P – June 2013


Use the data entry keys [0]-[9] to enter the desired code on the
SELECT CODE screen (Figure 3.27). The entered code may be
edited using the [backspace] key. Press the [enter] key.

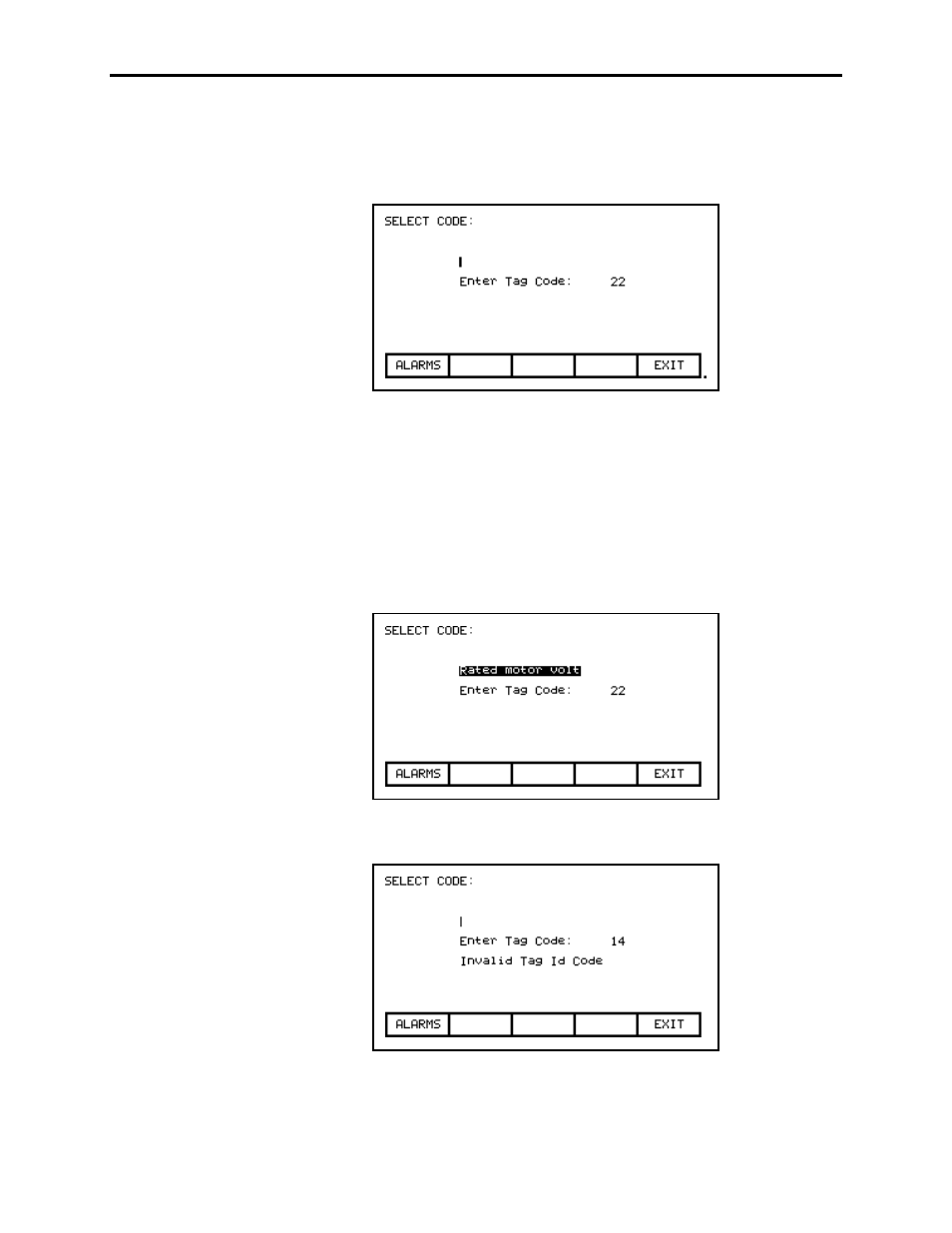

Figure 3.27 – Select via Code (Step 1)

The screen will display one of two formats. If the code you entered
was valid, it will show the name of the tag associated with the code
(Figure 3.28). This allows you to verify that this was the tag that you
intended to select with the code before proceeding. If correct, press
the [enter] key. If incorrect, immediately repeat the process by
typing in another code. If the tag code was not valid, a message
indicating such is displayed as in Figure 3.29.

Figure 3.28 – Valid Tag Code

Figure 3.29 – Invalid Tag Code
