4-36 Component Definition and Maintenance
7000L-UM302B-EN-P – June 2013 7000 ―C‖ Frame - Marine

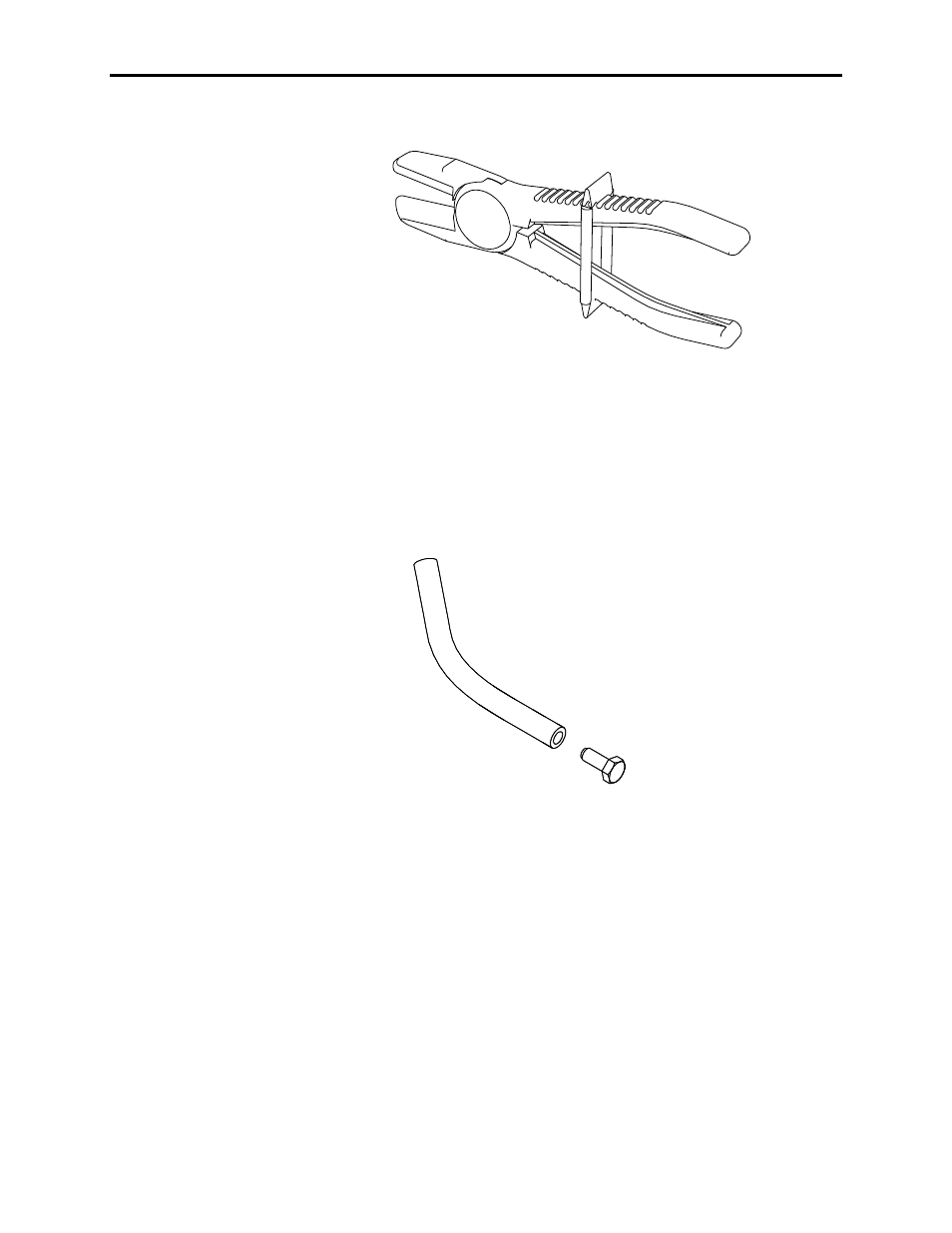

Figure 4.25 – Flow Restrictor Clamp
Also required are two (2) pieces of 3/8‖ hose (included) in spare parts kit
and four (4) M10 bolts with a length from 10 to 30 mm for use as plugs
in the 3/8‖ hose (not included). See Figure 4.25. M10 bolts must be
clean.
Figure 4.26 – Flow Stopper for Servicing (2 required)
6. Insert the 2 clamps per Figure 4.26 on the ¾-inch (19-mm)
silicon hoses to isolate flow between the vertical manifolds and
the horizontal manifolds of the converter modules.
Detachment of Coolant System
from PowerCage Modules
(cont.)
