Chapter 4 Non-isolated Analog Voltage/Current Input Modules (1756-IF16, 1756-IF8)

1756-IF8 Fault Reporting in
Floating Point Mode

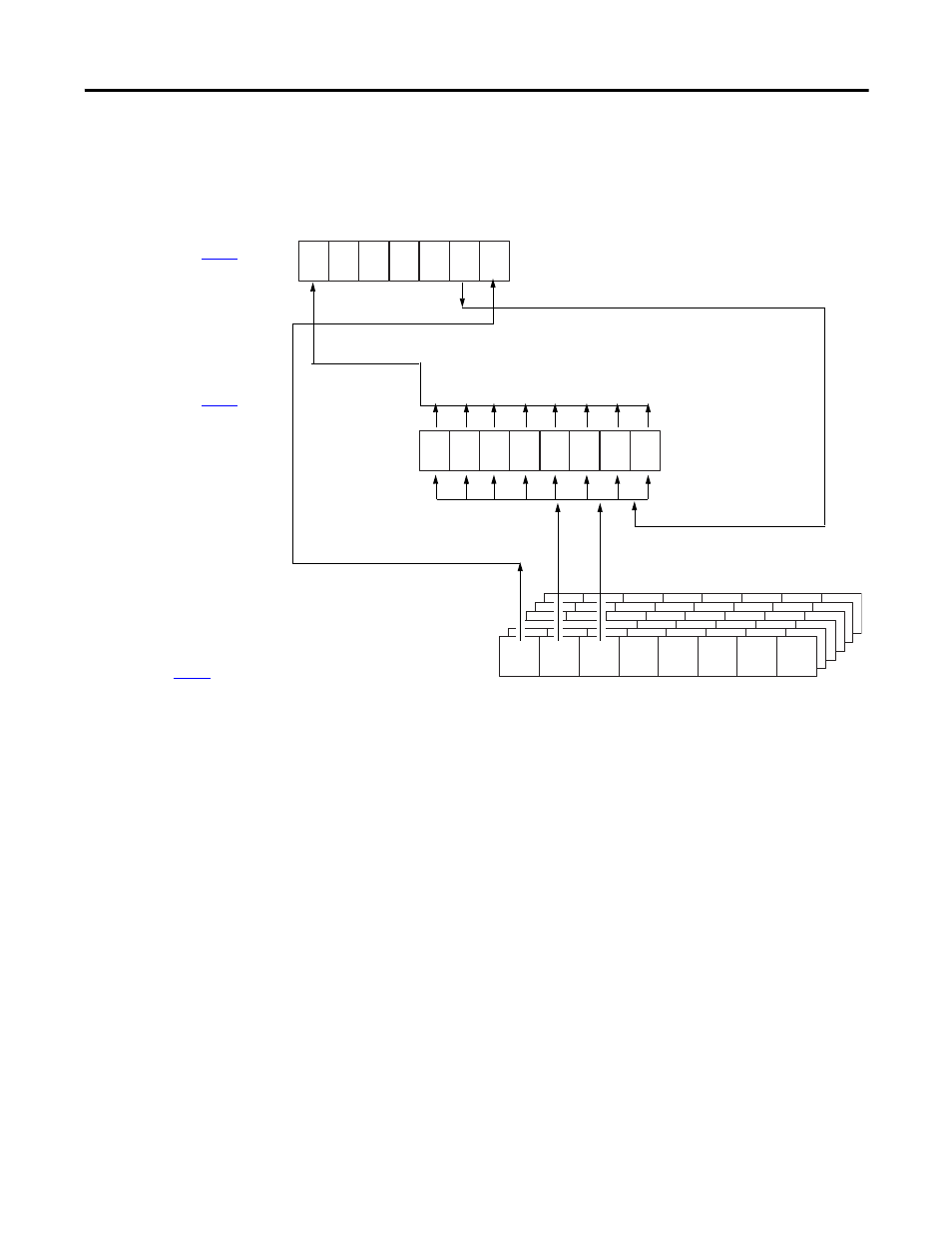

The illustration describes the fault reporting process for the 1756-IF8 module
in floating point mode.

15

14

13

12

11

5

4

3

2

1

0

5

4

3

2

1

0

7

6

15 = AnalogGroupFault
10 = Calibrating
9 = Cal Fault
14, 13, 12, and 11 are
not used

7 = Ch7Fault
6 = Ch6Fault
5 = Ch5Fault
4 = Ch4Fault
3 = Ch3Fault
2 = Ch2Fault
1 = Ch1Fault
0 = Ch0Fault

7 = ChxCalFault
6 = ChxUnderrange
5 = ChxOverrange
4 = ChxRateAlarm

41514

If set, any bit in the Channel Fault word, also sets the
Analog Group Fault in the Module Fault word

A channel calibration fault
sets the calibration fault in
the Module Fault word

3 = ChxLAlarm
2 = ChxHAlarm
1 = ChxLLAlarm
0 = ChxHHAlarm

An underrange, overrange condition
sets appropriate Channel Fault bits

When the module is calibrating, all
bits in the Channel Fault word are set

10

9

7

6

Eight channels used in S.E. wiring
Four channels used in Diff. wiring
Two channels used in H.S. Diff. wiring
All start at bit 0

Alarm bits 0…4 in the Channel Status word
do not set additional bits at any higher level.
You must monitor these conditions here.

The number of channel status words is
dependent on the communication
method used

Module Fault Word

(described on

page 87

)

Channel Fault Word

(described on

page 87

)

Channel Status Words

(One for each channel–described

on

page 88

)
