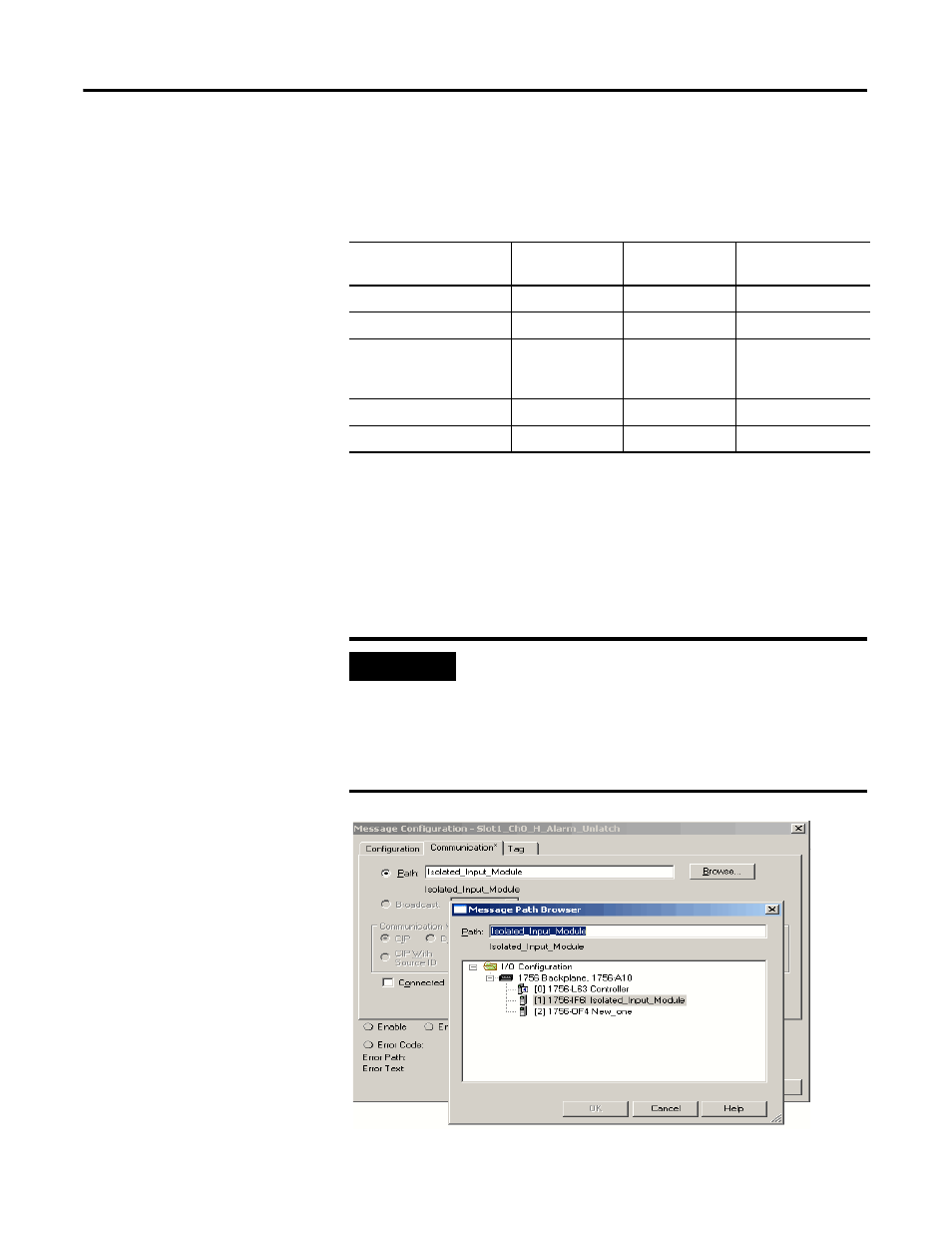

background image

Publication 1756-UM009C-EN-P - December 2010

347

Use Ladder Logic To Perform Run Time Services and Reconfiguration Appendix C

The table contains required output configuration information to perform
output module services. This information is only necessary if you are
configuring the message with RSLogix 5000, versions 9 or earlier:

Communication Tab

The Communication tab provides information on the path of the message
instruction. For example, the slot number of a 1756-IF6I module distinguishes
exactly which module a message is designated for.

Analog Output Modules Configuration Dialog Window Information

Enter the following

To unlatch the

high alarm

To unlatch the

low alarm

To unlatch the

ramp alarm

Service Code

4B

4B

4B

Object Type

0B

0B

0B

Object ID

(Channel Number)

1…6 or 1…8

1…6 or 1…8

1…6 or 1…8

Object Attribute

6F

6E

70

Number of Elements

0 bytes

0 bytes

0 bytes

IMPORTANT

Use the Brown button to see a list of the I/O modules in the
system. You choose a path when you choose a module from
the list.

You must name an I/O module during initial module
configuration to choose a path for your message instruction.
Click OK to set the path.
