Configure ControlLogix Analog I/O Modules Chapter 10
Reconfigure Module
Parameters in Run Mode
Your module can operate in either Remote Run mode or Run mode. You can
change any configurable features that are enabled by the software only in
Remote Run mode.

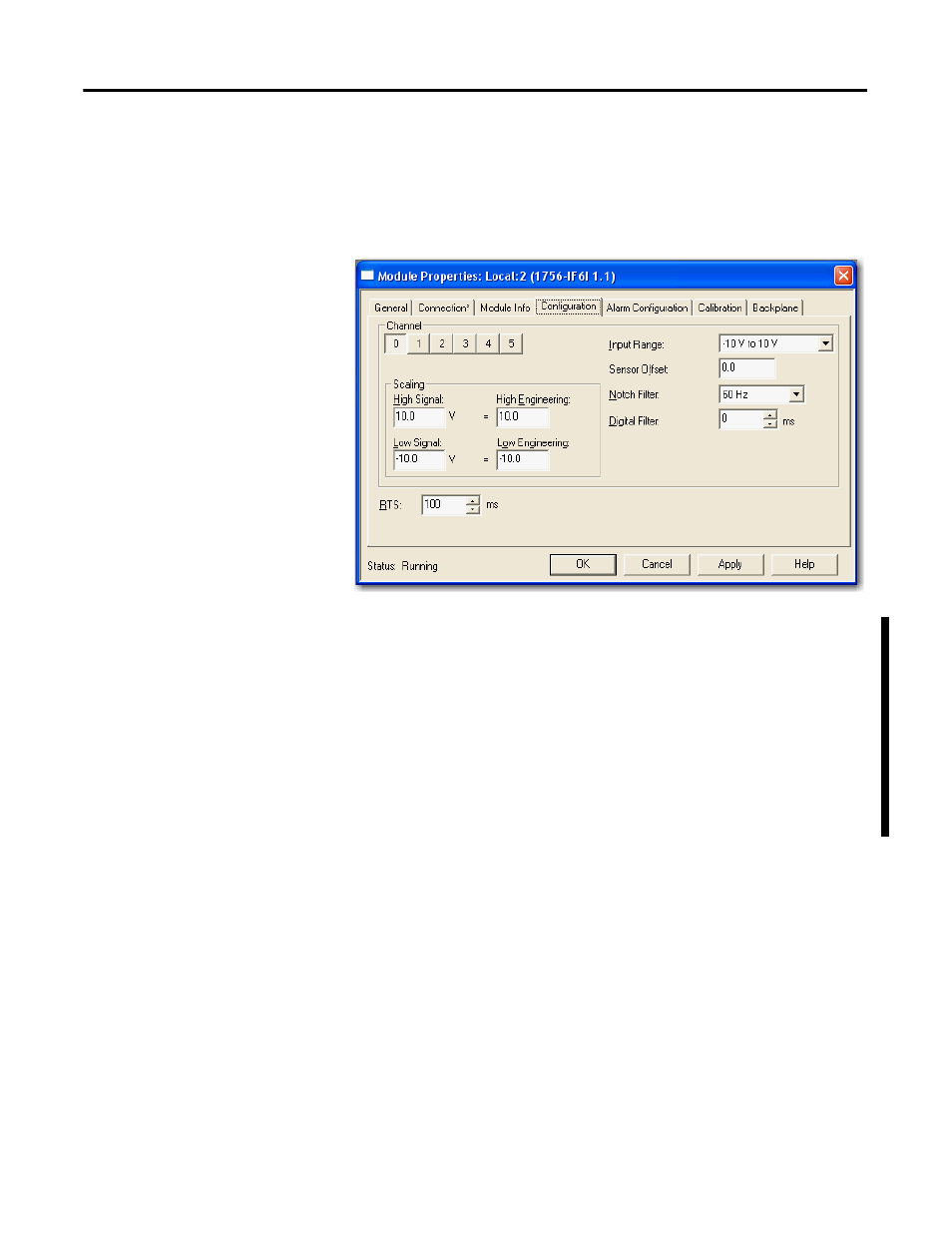

The example shows the Configuration tab for the 1756-IF6I module while it is
in Run mode.
If any feature is disabled in either Run mode, change the controller to Program
mode and follow these steps.
1.
Make the necessary configuration changes.
2.
Do one of the following:
• Click Apply to store a change but stay on the dialog box to choose
another tab.
• Click OK if you are finished making changes.
