Configure ControlLogix Analog I/O Modules Chapter 10
2.

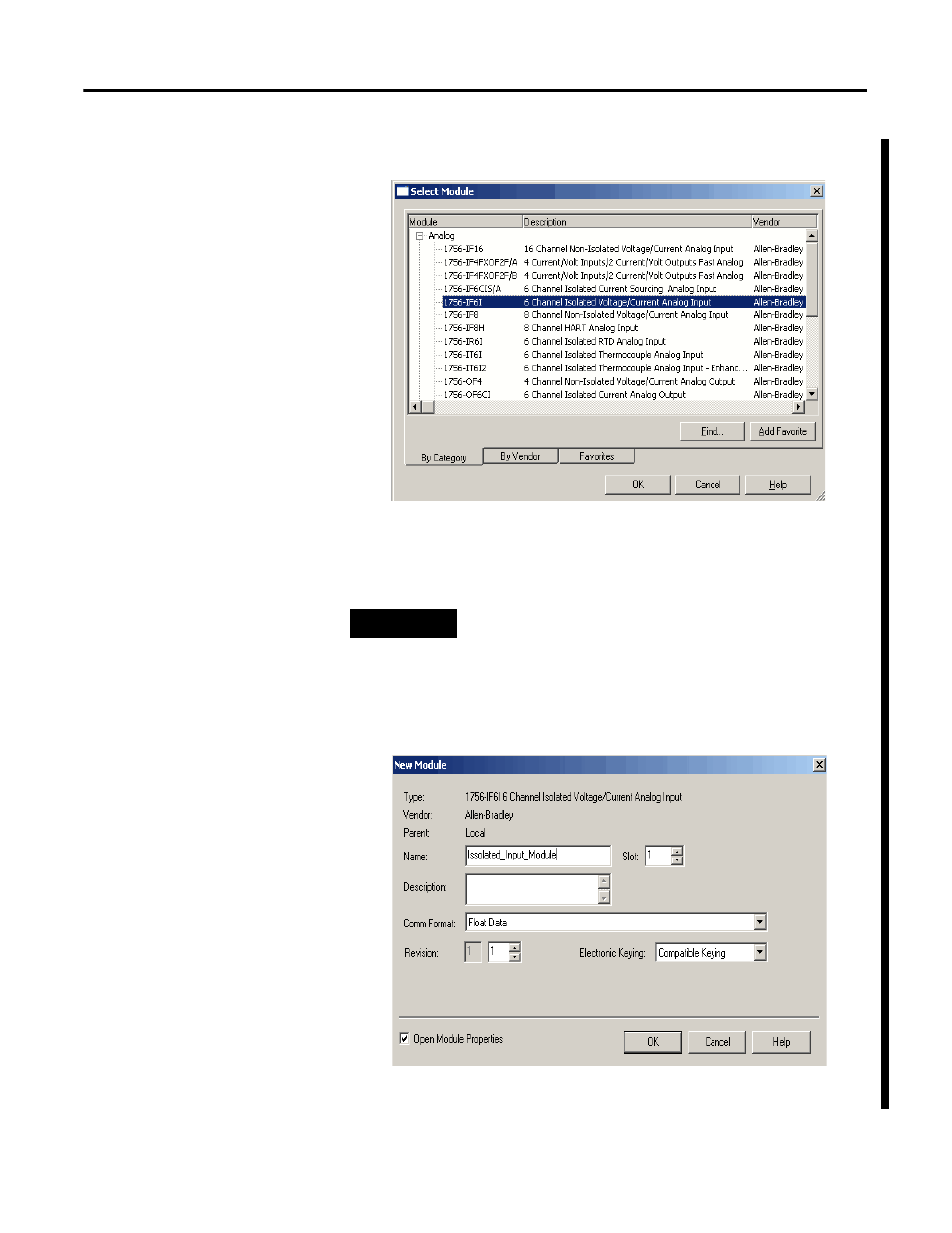

Click the ‘+’ next to Analog for a list for this module group.
3.
Select a module and click OK.
4.
Click OK to accept the default major revision.
The New Module dialog box appears.
5.
In the Name box, type a module name.
TIP
To find the revision number, open RSLinx software. Click the
RSWho icon and choose the network. Open the module, and
then right-click the module to choose Properties in the
pull-down menu. The revision number is among the properties.
