Publication 1756-UM009C-EN-P - December 2010

267

Calibrate the ControlLogix Analog I/O Modules Chapter 11

5.

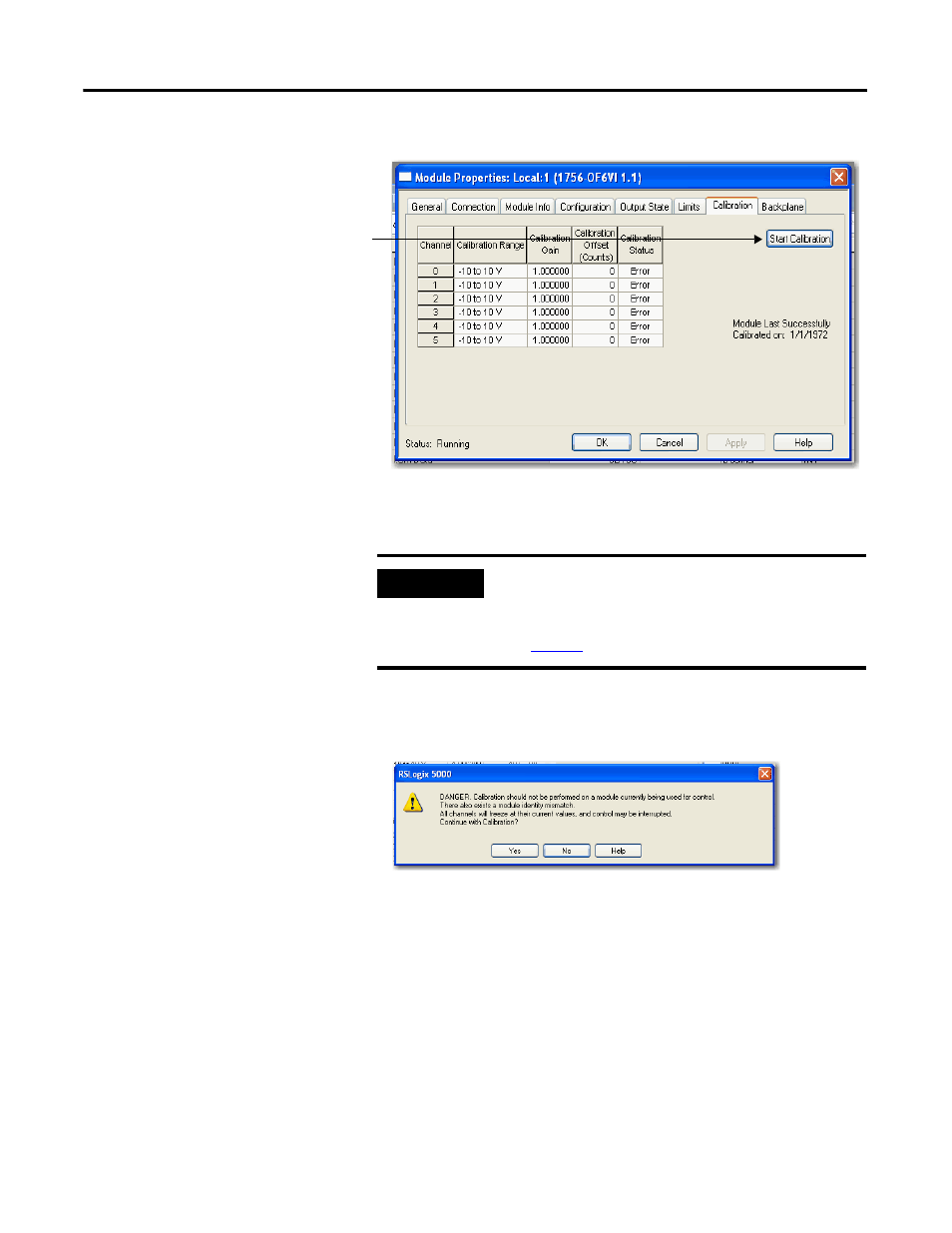

Go to the Calibration tab on the Module Properties dialog box.

6.

Click Start Calibration to access the Calibration Wizard to step through
the process.

If your module is not in Program mode, a warning message appears.
You must manually change the module to Program mode before
clicking Yes.

IMPORTANT

The ‘Error’ status for all the channels denotes that the
previous calibration process was not successful. We
suggest a valid calibration be performed for all channels.

See

page 272

for a successful calibration for channel 0.
