Use Ladder Logic To Perform Run Time Services and Reconfiguration Appendix C
Unlatch Alarms in the 1756-OF6VI Module

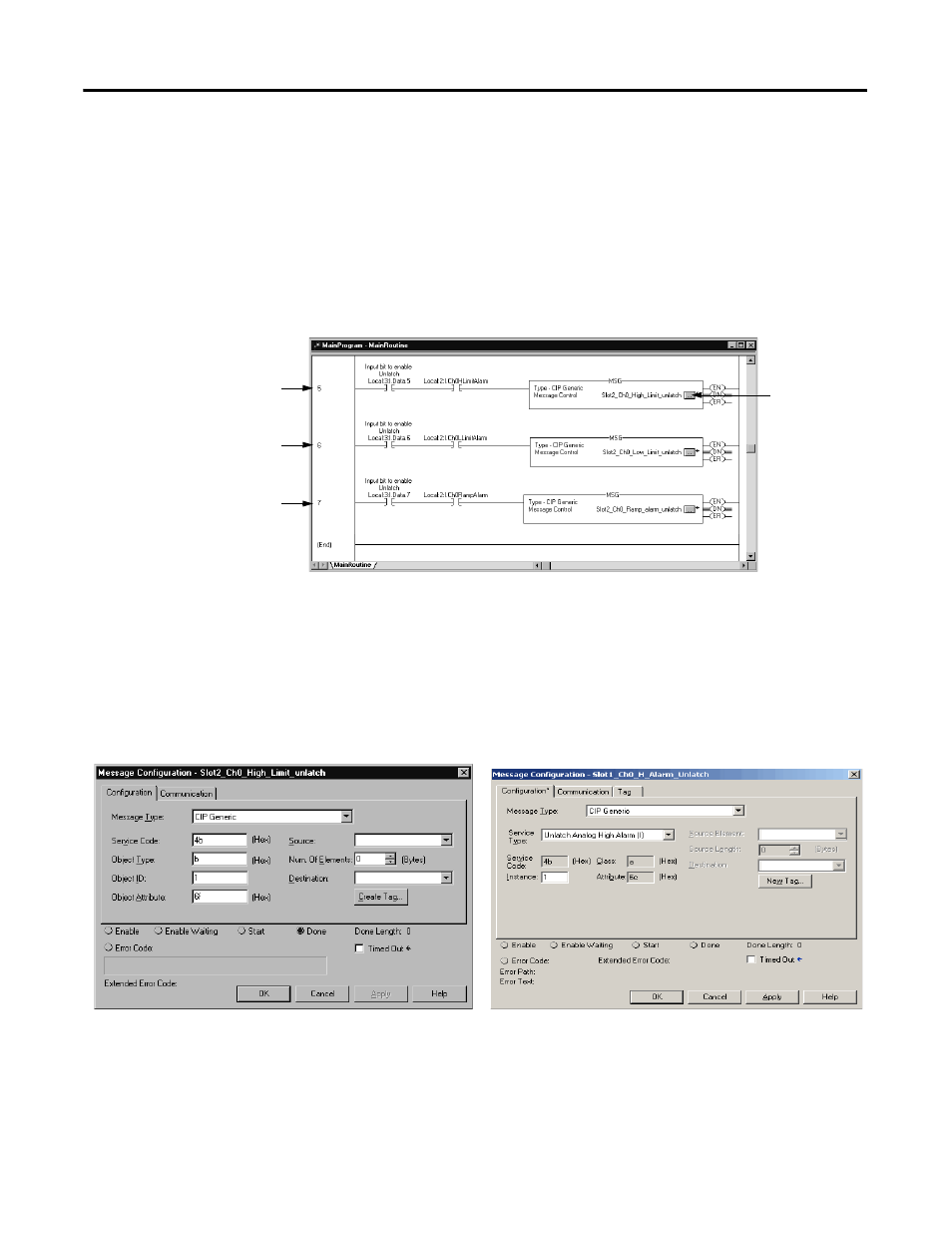

Example rungs 5…7 show how to unlatch the following alarms in a
1756-OF6VI module:
• High limit alarm - Rung 5
• Low limit alarm - Rung 6
• Ramp alarm - Rung 7
Configuration Dialog Boxes
The example dialog box on the left shows the configuration for rung 5. The
example dialog box on the right requires only the Service Type and Instance to
be entered.
Rung 5 unlatches the high limit alarm.
Rung 6 unlatches the low limit alarm.
Rung 7 unlatches the ramp alarm.
Click on the box
in each rung to
see the
configuration
and
communication
information.
This window contains the same information for each rung, except
for the Object Attribute field. The information in this field is
as follows:
Rung 5 - 6f
Rung 6 - 6e
Rung 7 - 70
RSLogix 5000 Software, Version 9 and Earlier RSLogix 5000 Software, Version 10 and Later
