Install controllogix i/o modules, Introduction, Install the i/o module – Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 187: Chapter 9, Introduction install the i/o module, Chapter
Publication 1756-UM009C-EN-P - December 2010
187
Chapter
9
Install ControlLogix I/O Modules
Introduction
This chapter describes how to install ControlLogix modules.
Install the I/O Module
You can install or remove a module while chassis power is applied.
Do these steps to install an I/O module.

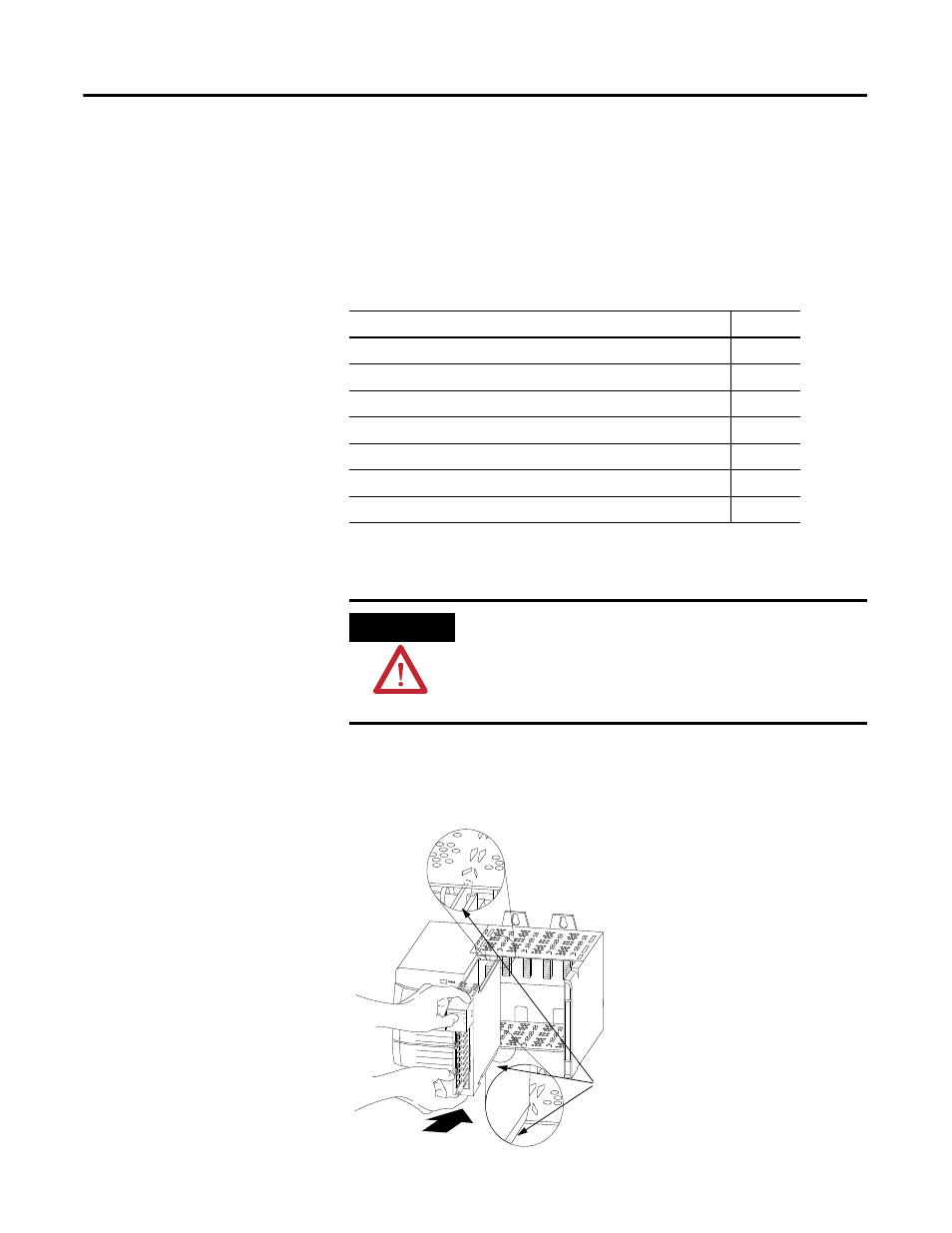

1.
Align the circuit board with the top and bottom chassis guides.
Topic
Page
Key the Removable Terminal Block
Assemble the RTB and the Housing
Install the Removable Terminal Block
Remove the Removable Terminal Block
Remove the Module from the Chassis
ATTENTION
The module is designed to support Removal and Insertion Under
Power (RIUP). However, when you remove or insert an RTB with
field-side power applied, unintended machine motion or loss of
process control can occur. Exercise extreme caution when using
this feature.
Printed Circuit Board
20861-M
