Sourcing Current Loop Input Module (1756-IF6CIS) and Isolated Analog Voltage/Current Input Module (1756-IF6I) Chapter 5

Fault Reporting in
Integer Mode

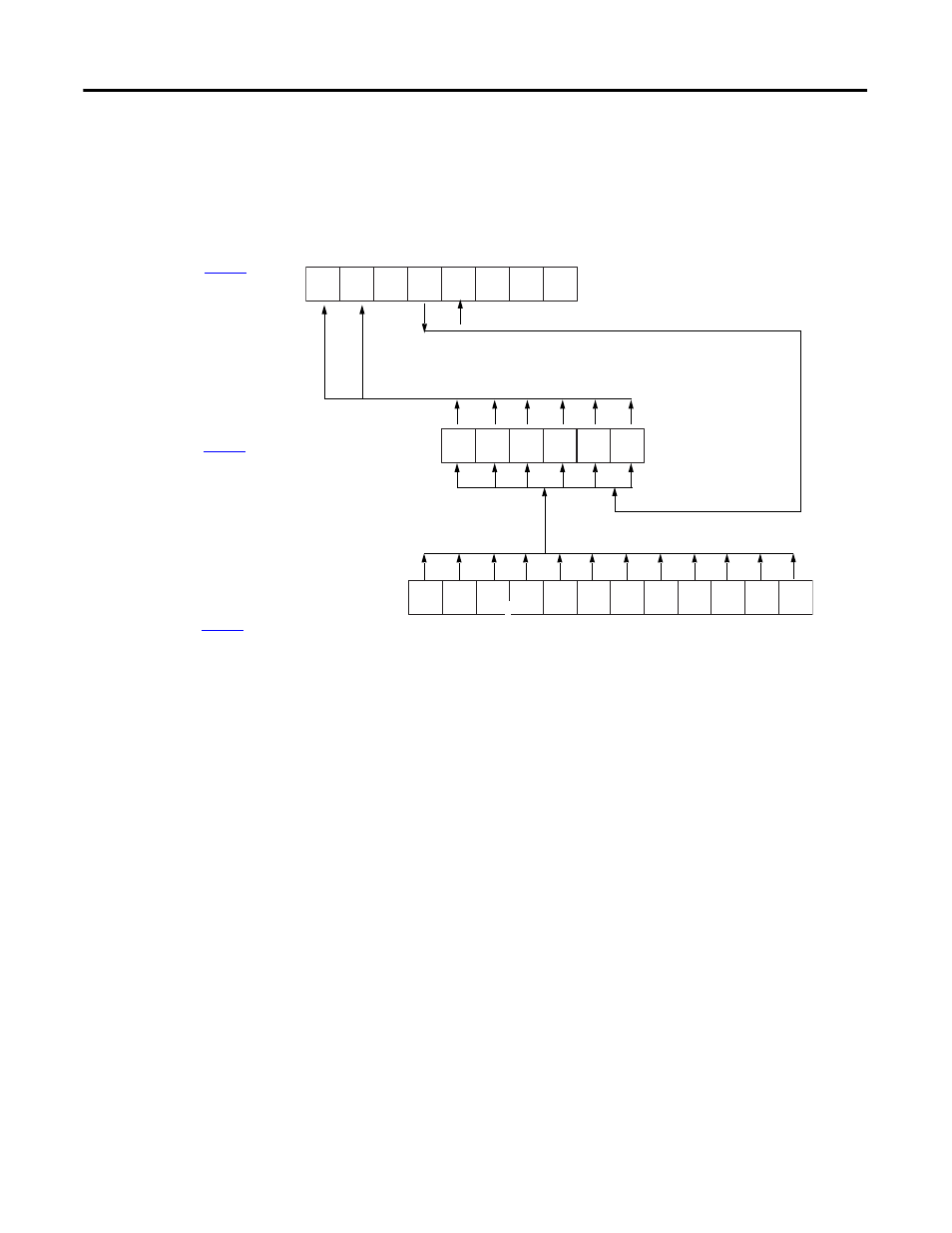

The illustration offers an overview of the fault reporting process
in integer mode.

15

14

13

12

11

10

9

8

5

4

3

2

1

0

5

4

9

8

7

6

15 = AnalogGroupFault
14 = InGroupFault
12 = Calibrating
11 = Cal Fault
13, 10, 9 & 8 are not
used by 1756-IF6I

5 = Ch5Fault
4 = Ch4Fault
3 = Ch3Fault
2 = Ch2Fault
1 = Ch1Fault
0 = Ch0Fault

15 = Ch0Underrange
14 = Ch0Overrange
13 = Ch1Underrange
12 = Ch1Overrange
11 = Ch2Underrange
10 = Ch2Overrange

15

14

13

12

11

10

9 = Ch3Underrange
8 = Ch3Overrange
7 = Ch4Underrange
6 = Ch4Overrange
5 = Ch5Underrange
4 = Ch5Overrange

Underrange and overrange conditions set the corresponding
Channel Fault word bit for that channel.

When the module is
calibrating, all bits in
the Channel Fault
word are set.

If set, any bit in the Channel Fault word, also sets the Analog
Group Fault and Input Group Fault in the Module Fault word.

A calibrating fault
sets bit 11 in the
Module Fault word.

Module Fault Word

(described on

page 116

Channel Fault Word

(described on

page 116

)

Channel Status Words

(one for each channel–

described on

page 117

)
