Output state tab – Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 221

Publication 1756-UM009C-EN-P - December 2010
221
Configure ControlLogix Analog I/O Modules Chapter 10
1.
Choose from the options on the Configuration tab.
2.
After the channels are configured, do one of the following:
• Click Apply to store a change but stay on the dialog box to choose
another tab.
• Click OK to apply the change and close the dialog box.

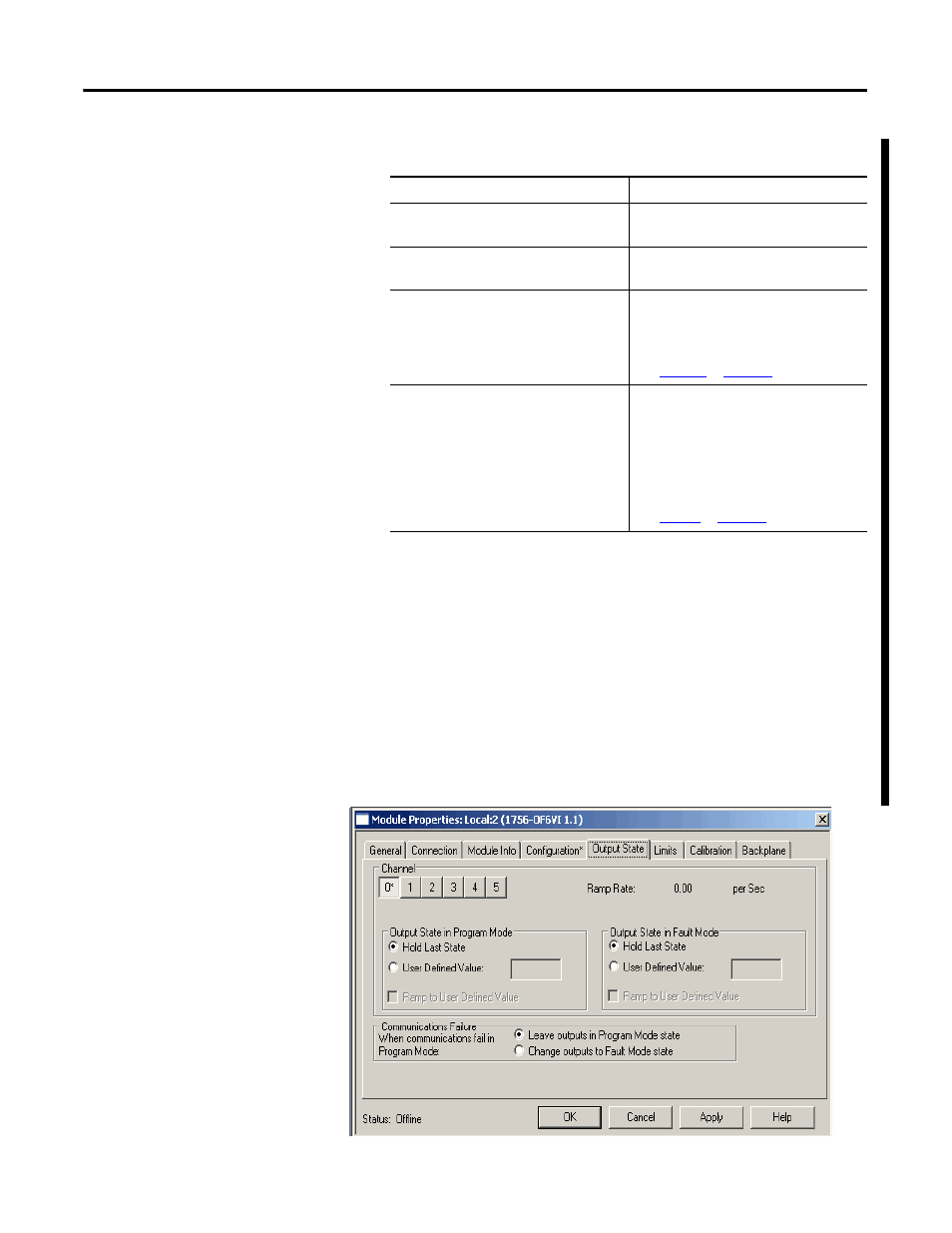

Output State Tab
The Output State tab lets you program output behavior in Program and
Fault modes.
Field Name
Description
Channel
Click the channel that is being
configured.
Sensor Offset
Type a value to compensate for any
sensor offset errors.
Hold for Initialization
Check the box to have outputs hold their
present state until the output values
match the controller values.
for details.
Scaling
You can scale only with the floating
point data format. Scaling lets you
configure any two signal points in the
module’s operating range with the
associated low and high points for
this range.
for details.
