Chapter 9 Install ControlLogix I/O Modules

Connect the Ungrounded End of the Cable

1.

Cut the foil shield and drain wire back to the cable casing and apply
shrink wrap.

2.

Connect the insulated wires to the RTB.

Three Types of RTBs (each RTB comes with housing)

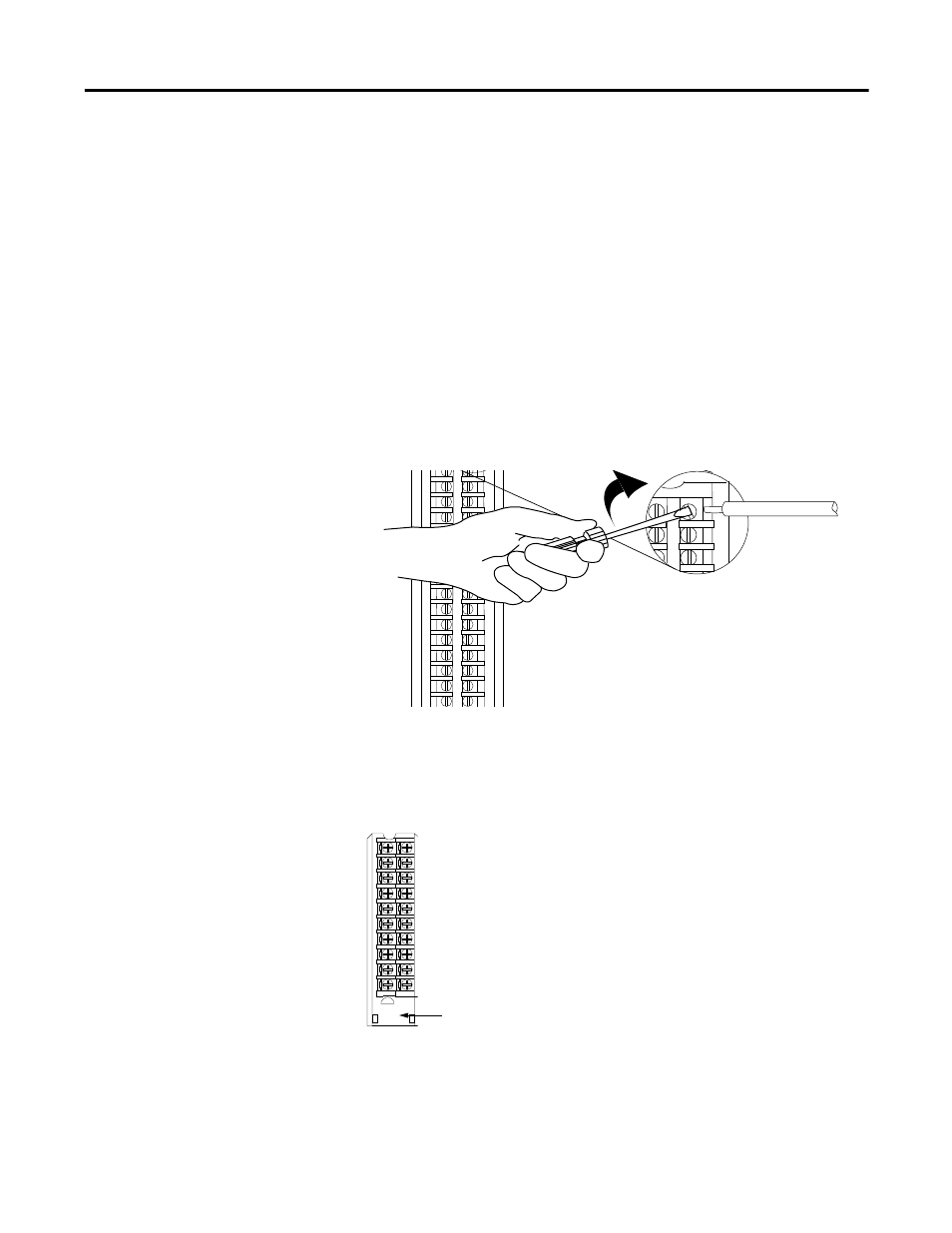

Cage clamp

- catalog number 1756-TBCH

1.

Insert the wire into the terminal.

2.

Turn the screw clockwise to close the terminal on the wire.

NEMA clamp

- Catalog number 1756-TBNH

Terminate wires at the screw terminals.

20859-M

40201-M

Strain relief area
