Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 246
246
Publication 1756-UM009C-EN-P - December 2010
Chapter 11 Calibrate the ControlLogix Analog I/O Modules

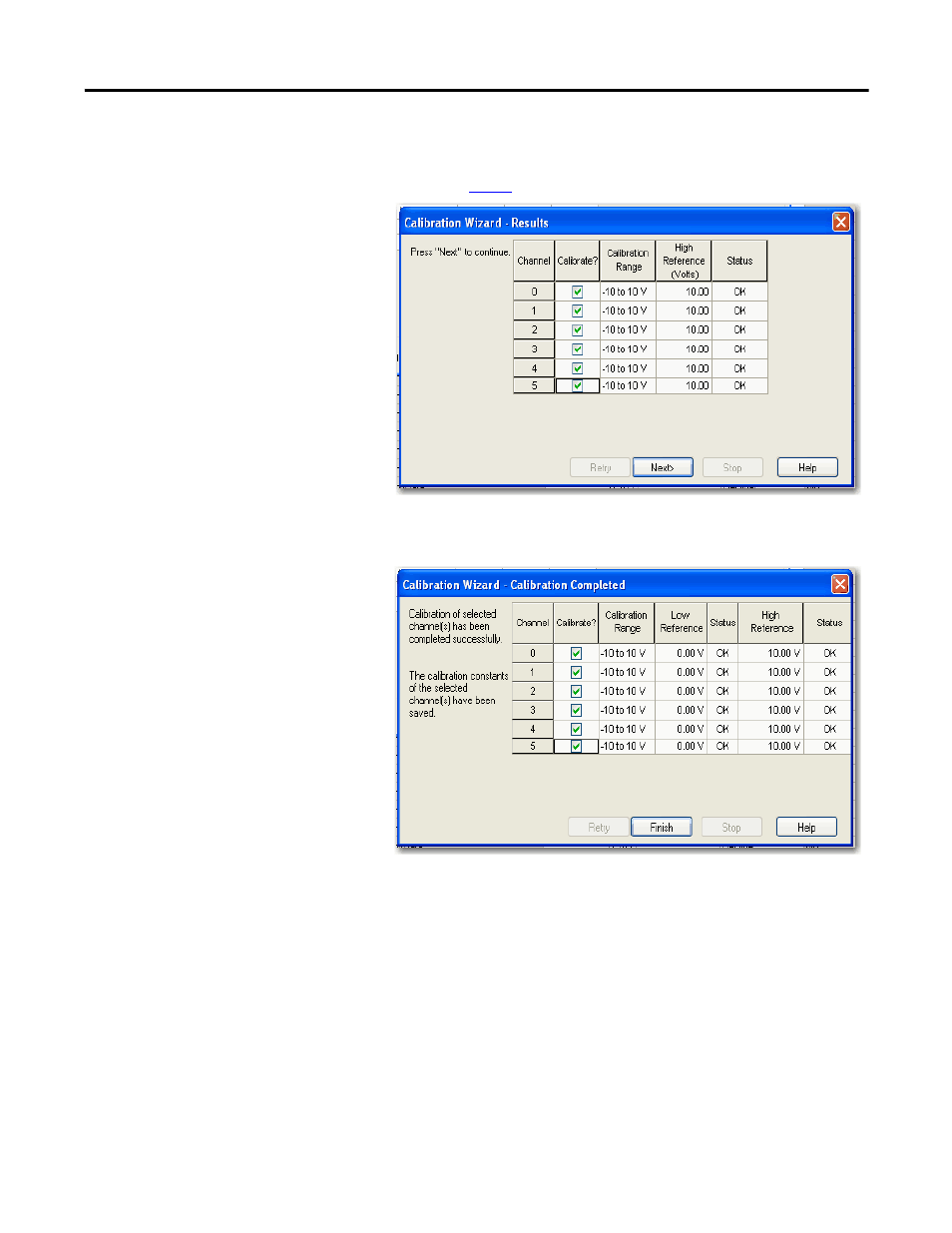

A Results wizard displays the status of each channel after calibrating for
a high reference. If channels are OK, continue. If any channels report an
error, retry
After you have completed both low and high reference calibration, this
window shows the status of both.
13.
Click Finish.
