Configuration tab – Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 345

Publication 1756-UM009C-EN-P - December 2010
345
Use Ladder Logic To Perform Run Time Services and Reconfiguration Appendix C
Configuration Tab
The Configuration tab provides information on what module service to
perform and where to perform it.

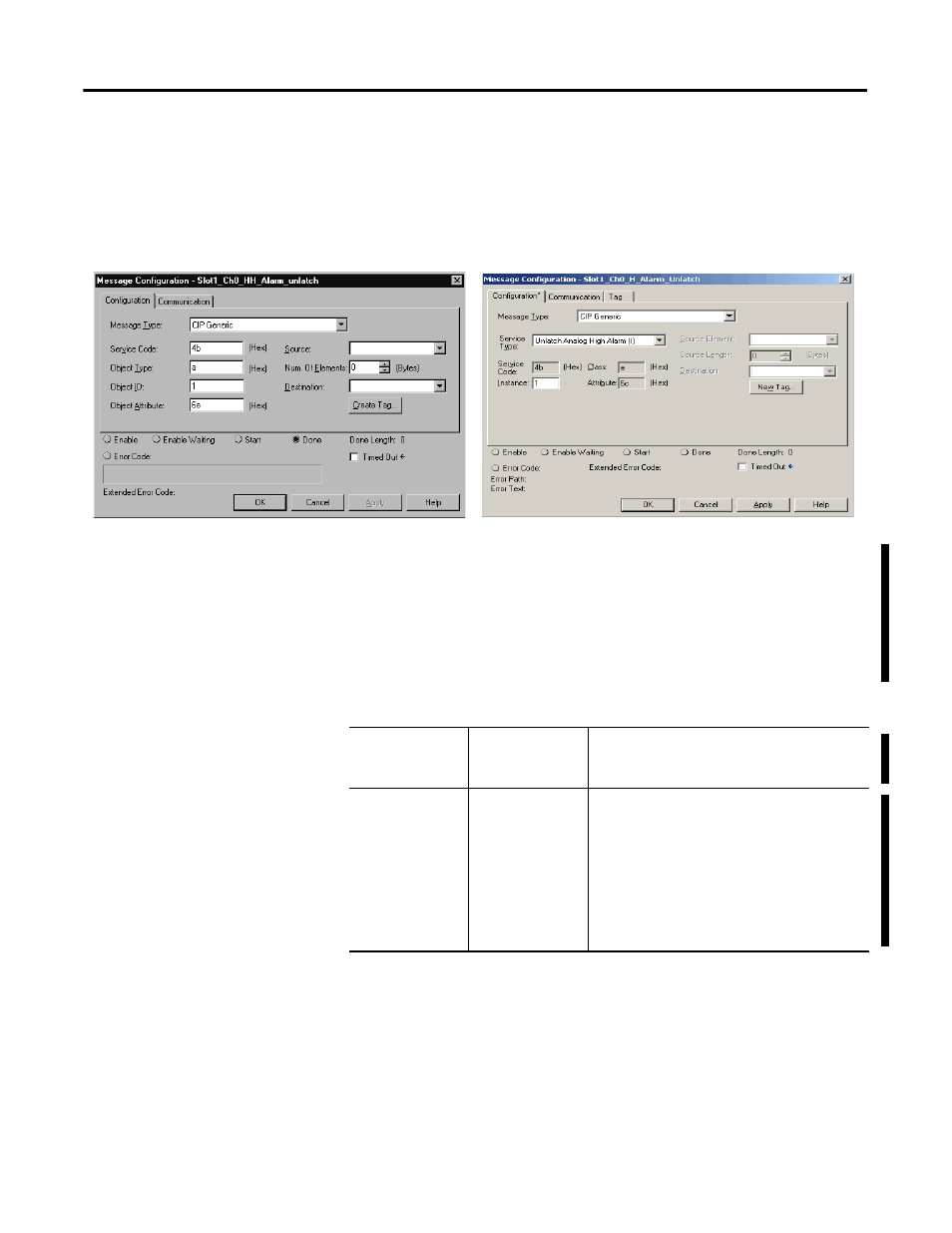

The following table explains the relationship of the fields in the above dialog
boxes. For example, despite different entry fields, both screen examples are
configured to unlatch a high alarm (module service) on channel 0 of a
1756-IF6I module (where to perform the service).
With RSLogix 5000 software versions 10 and later, you are required to choose
only a service type and configure the instance.
RSLogix 5000 Software, Version 9 and Earlier
RSLogix 5000 Software, Version 10 and Later
Relationship of Message Configuration Parameters
RSLogix 5000
Versions 9
and earlier
RSLogix 5000
Versions 10
and later
Description
Service Code
Service Type
Defines the type of module service to be
performed. For example, unlatch alarm.
Note: In versions 10 and later, you can use a
pull-down menu to choose the Service Type.
RSLogix 5000 software defaults the Service
Code, Instance, Class, and Attribute parameters
based on the Service Type that you choose. All
values are in Hex.
