274

Publication 1756-UM009C-EN-P - December 2010

Chapter 12 Troubleshoot Your Module

Status Indicators for Output Modules

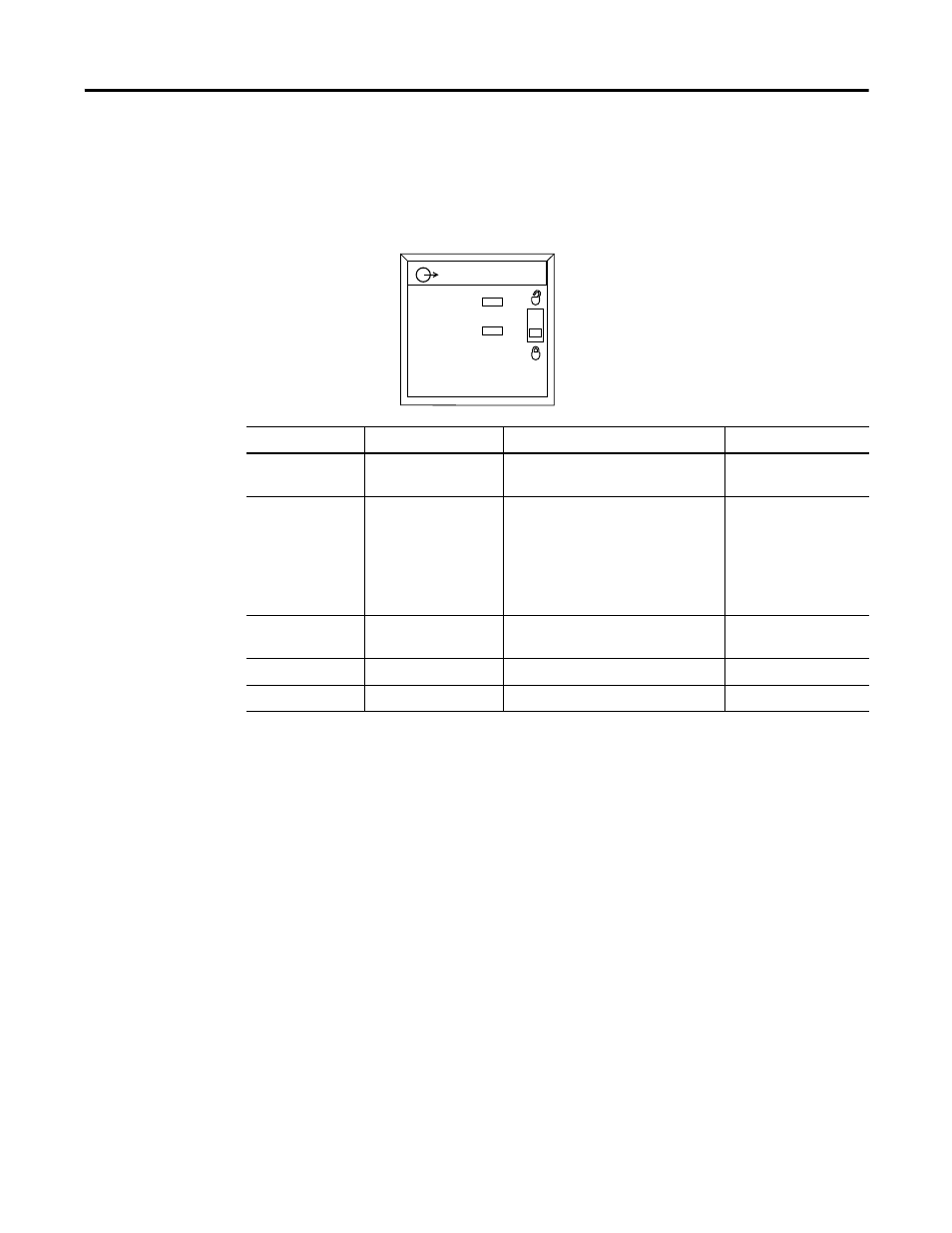

The illustration and table show the status indicators used with analog
output modules.

Status Indicator

Display

Description

Action

OK

Steady green light

The outputs are in a normal
operating state in Run mode.

None

OK

Flashing green light

Either:

• the module has passed internal

diagnostics and is not
actively controlled

• a connection is open and the

controller is in Program mode.

None

OK

Flashing red light

Previously established
communication has timed out.

Check controller and
chassis communication

OK

Steady red light

The module must be replaced.

Replace the module.

CAL

Flashing green light

The module is in Calibration mode.

Finish calibration

20965-M

ANALOG OUTPUT

CAL

OK
