196 Publication 1756-UM009C-EN-P - December 2010
Chapter 9 Install ControlLogix I/O Modules

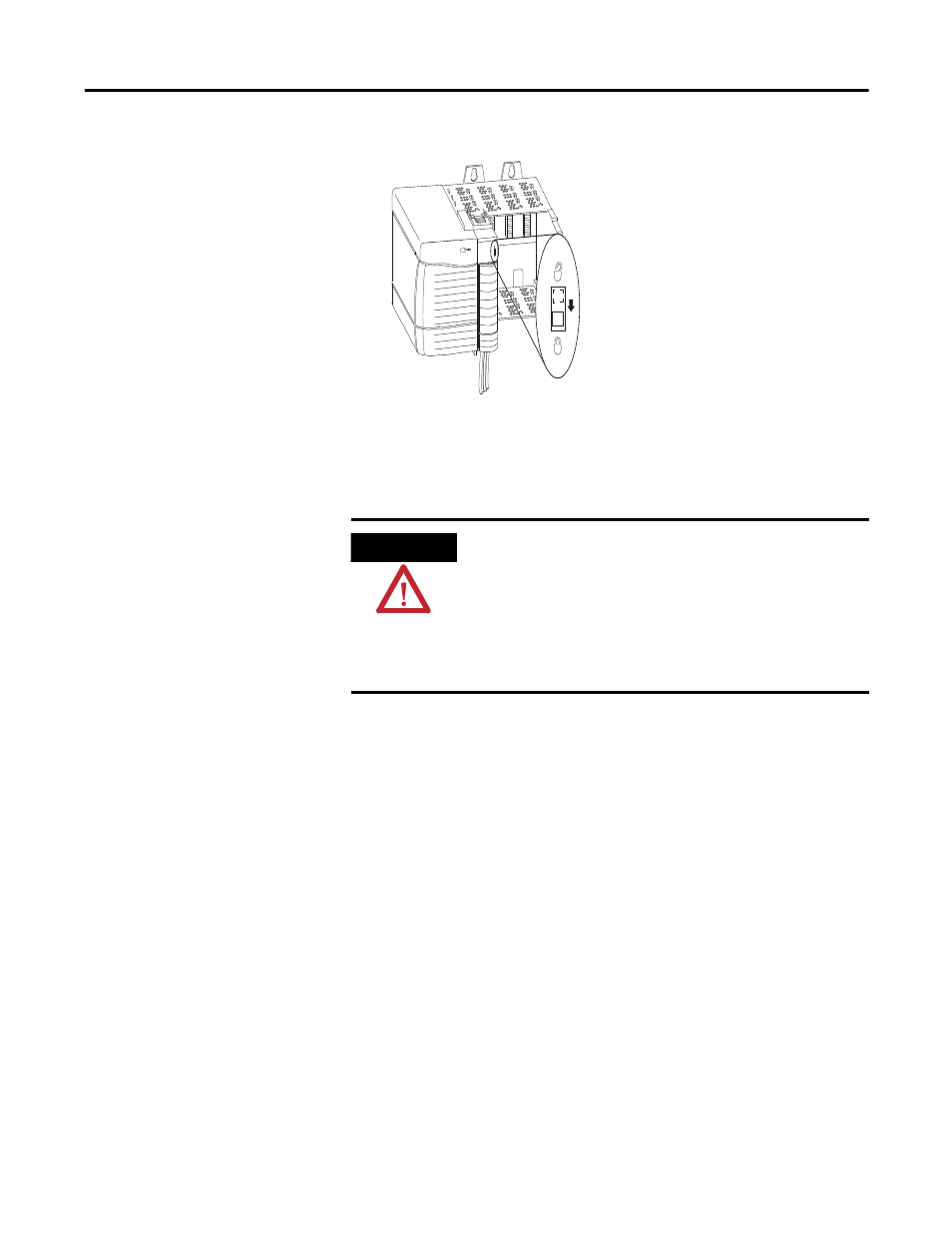

3. Slide the locking tab down to lock the RTB onto the module.
Remove the Removable
Terminal Block If you need to remove the module from the chassis, you must first remove the
RTB from the module. Do these steps to remove the RTB.
1. Unlock the locking tab at the top of the module.
2. Open the RTB door by using the bottom tab.
20854-M
WARNING
When you insert or remove the module while backplane power
is on, an electrical arc can occur. This could cause an explosion
in hazardous location installations. Be sure that power is
removed or the area is nonhazardous before proceeding.
Repeated electrical arcing causes excessive wear to contacts
on both module and its mating connector. Worn contacts may
create electrical resistance that can affect module operation.
