Rockwell Automation 1756-XXXX ControlLogix Analog I/O Modules User Manual
Page 349

Publication 1756-UM009C-EN-P - December 2010
349
Use Ladder Logic To Perform Run Time Services and Reconfiguration Appendix C
Configuration Dialog Boxes

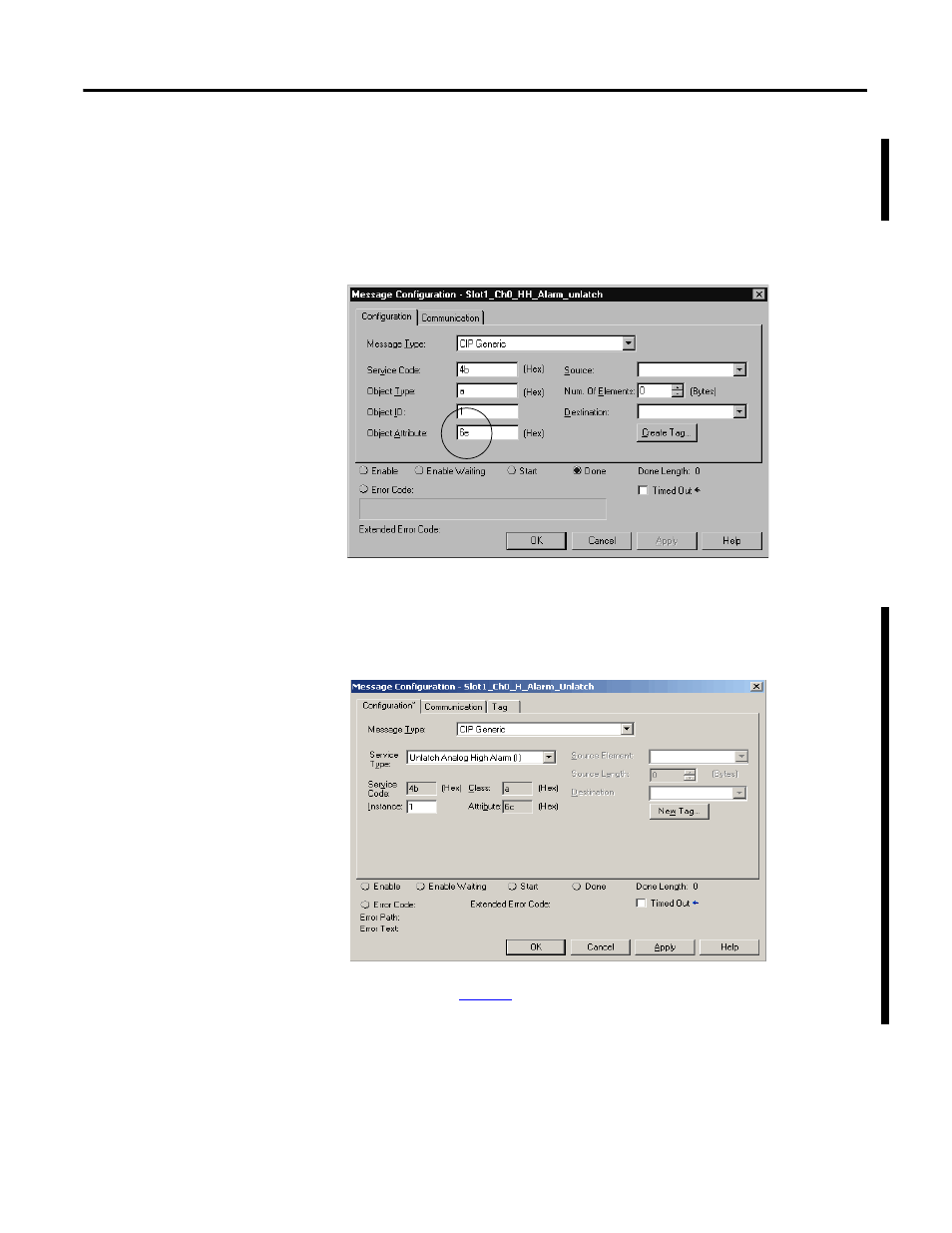

The example below shows the message configuration setting for rung 0 if
using RSLogix 5000 software version 9 and earlier
For the newer versions of RSLogix 5000 software, you are required only to
choose a Service Type and configure the Instance.
See the table on
for an explanation of the field relationships for
the two dialog boxes.
This window contains the same
information for each rung,
except for the Object Attribute
field. The information in this
field is as follows:
Rung 0 - 6e
Rung 1 - 6c
Rung 2 - 6b
Rung 3 - 6d
Rung 4 - 6f
RSLogix 5000 Software, Version 9 and Earlier
RSLogix 5000 Software, Version 10 and Later
